Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>

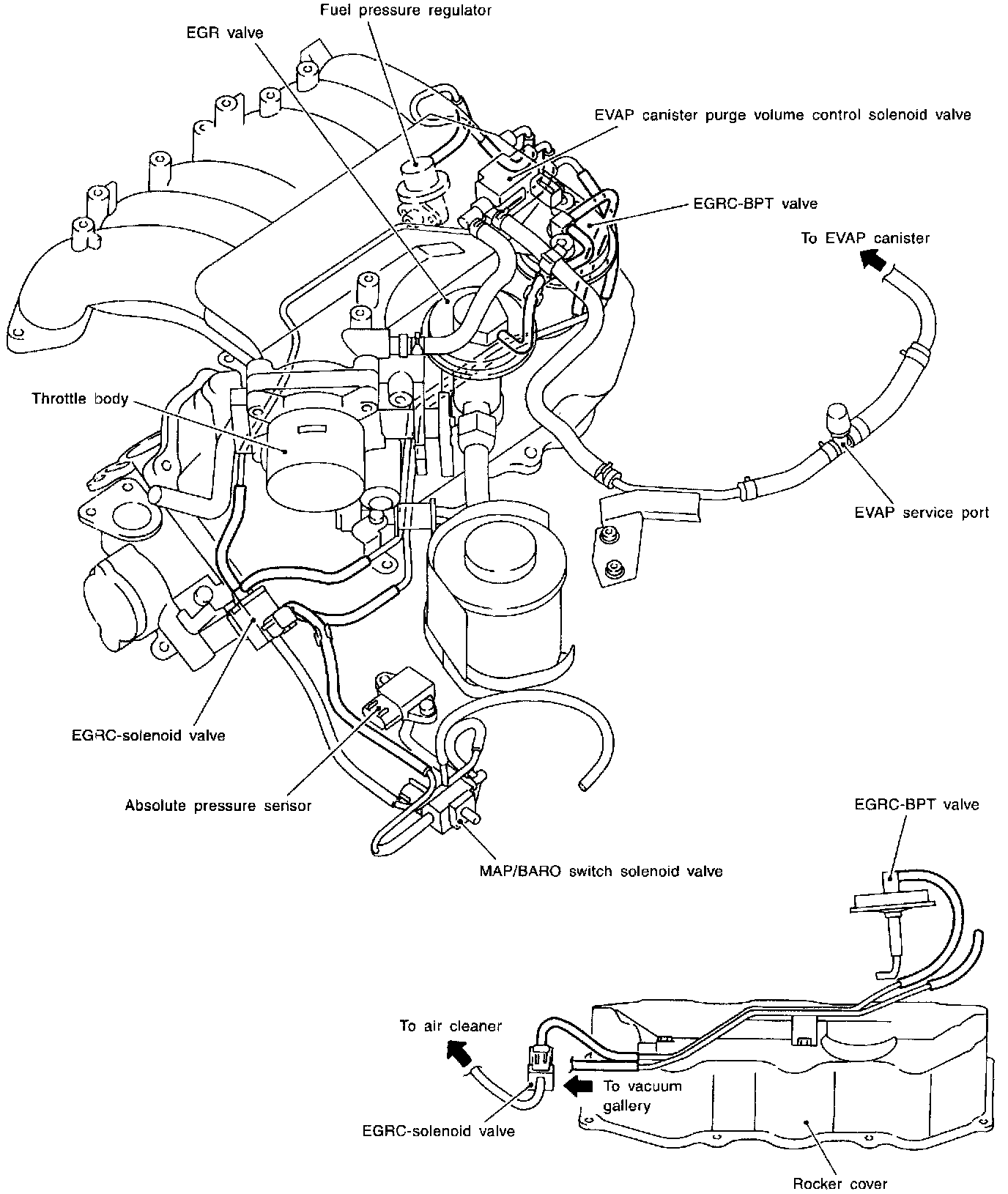

System Diagram
>>
To VIN # 350000
To VIN # 350000
Evaporative Emission Line Drawing:
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
