To VIN # 350000

Front Wiper and Washer

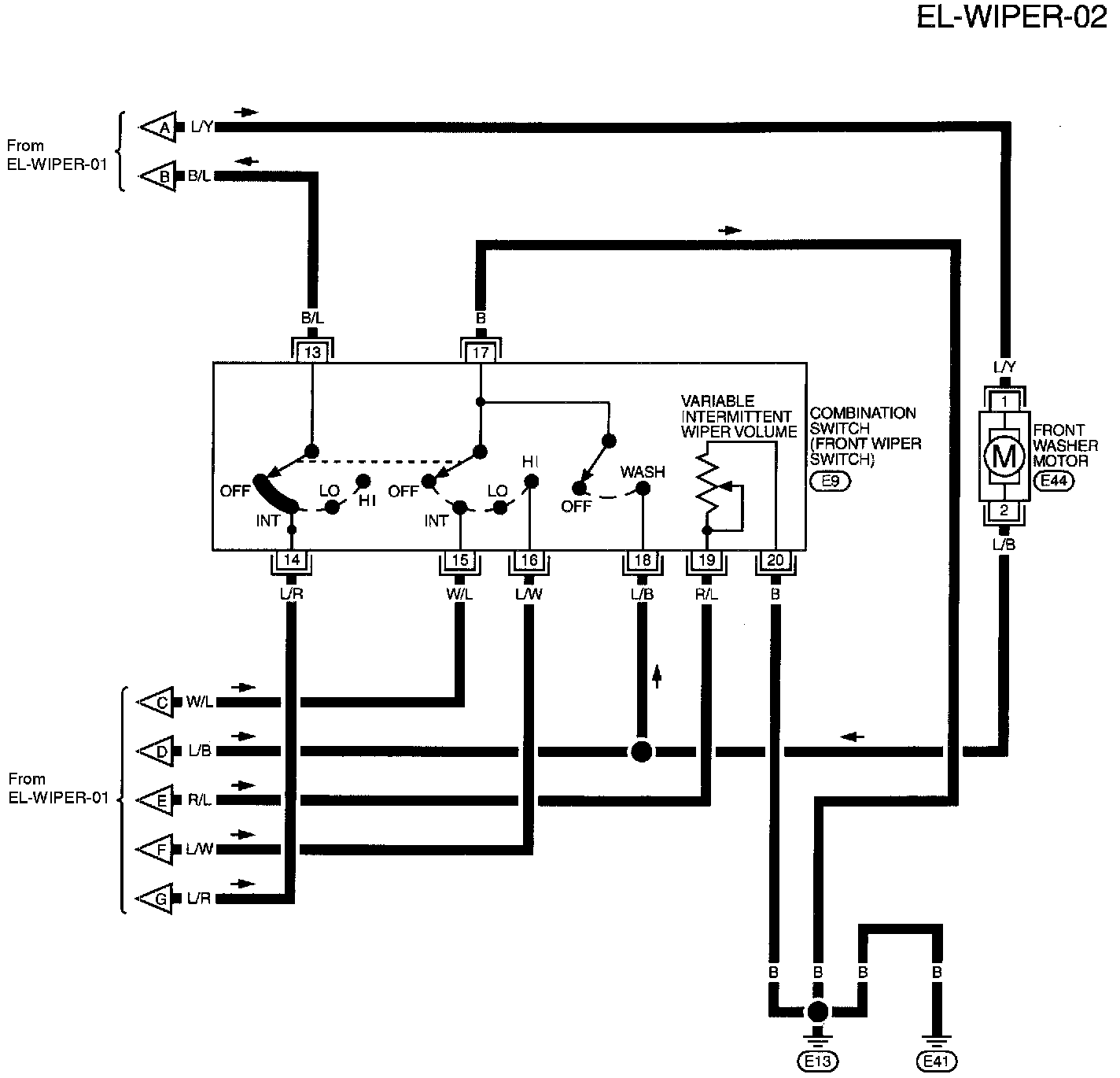

Circuit Diagram








Circuit Connectors

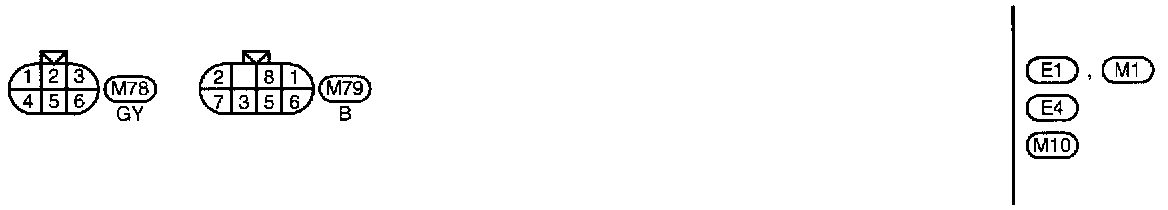

E1, M1 Body, Engine and Main Harness Terminal Arrangements





E4, M10 Terminal Arrangement



REAR WIPER AND WASHER

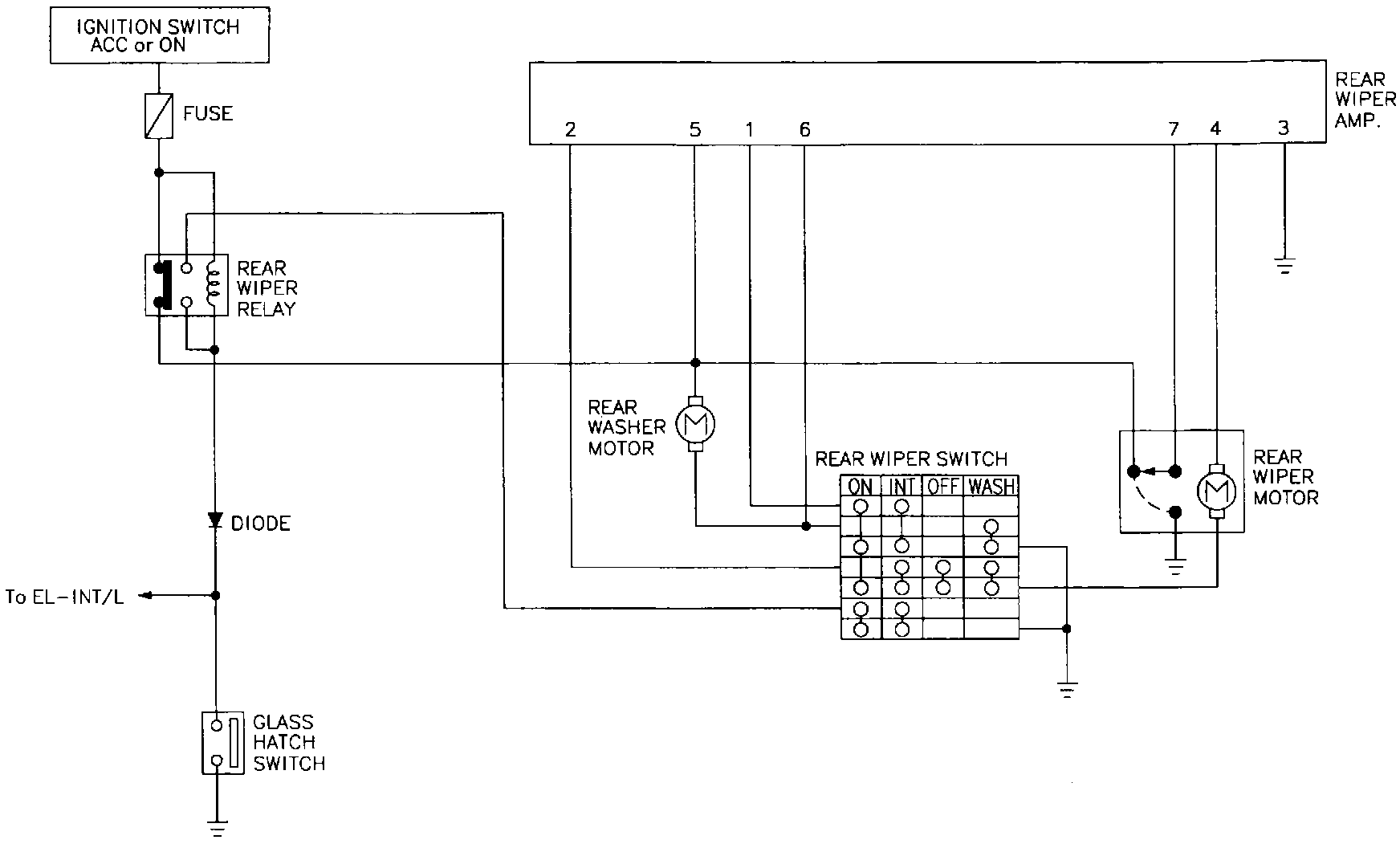

Schematic

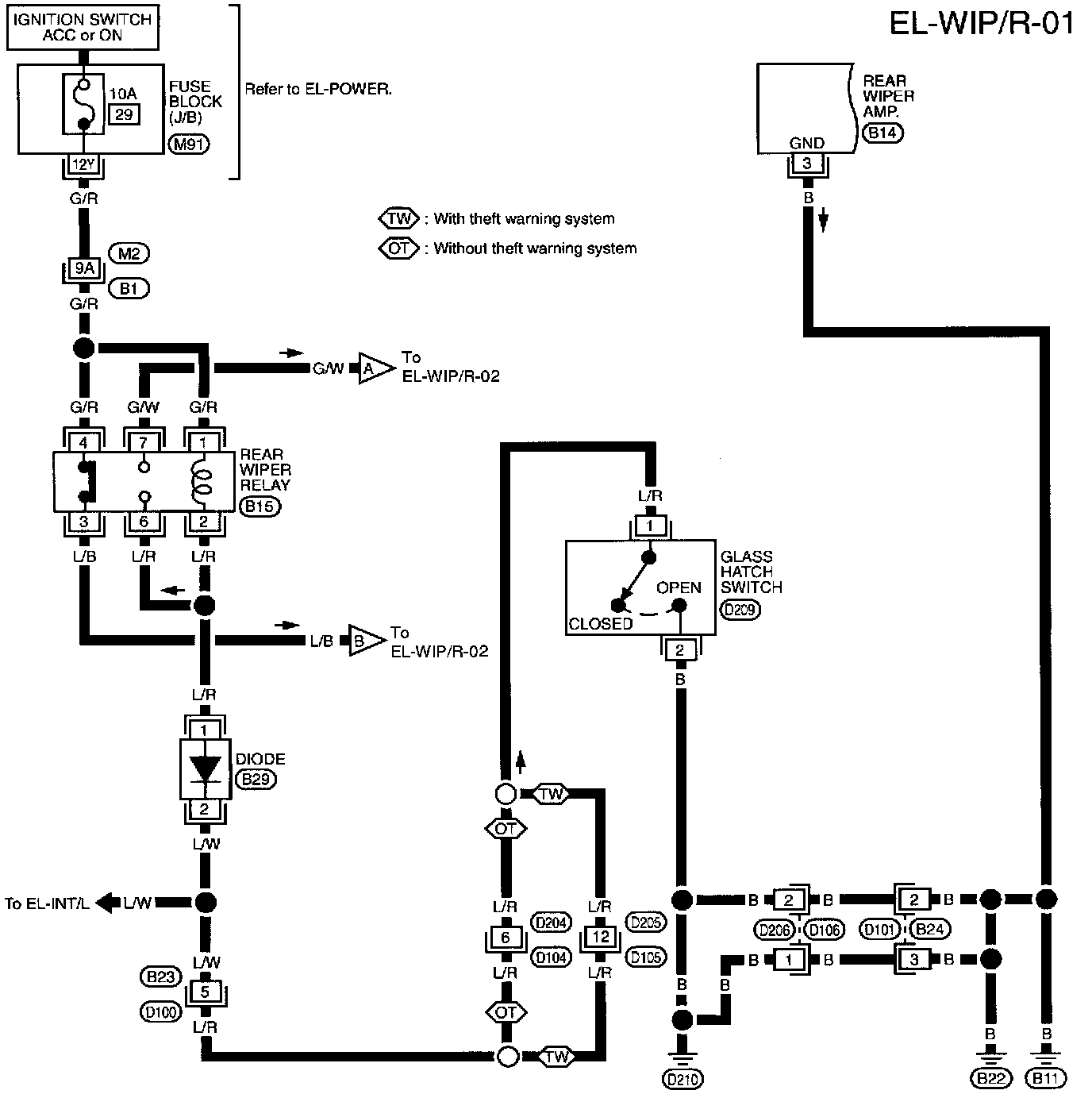

(Part 1 of 3)
Fuse Block (J/B)
Glass Hatch Switch
Rear Wiper Amplifier.

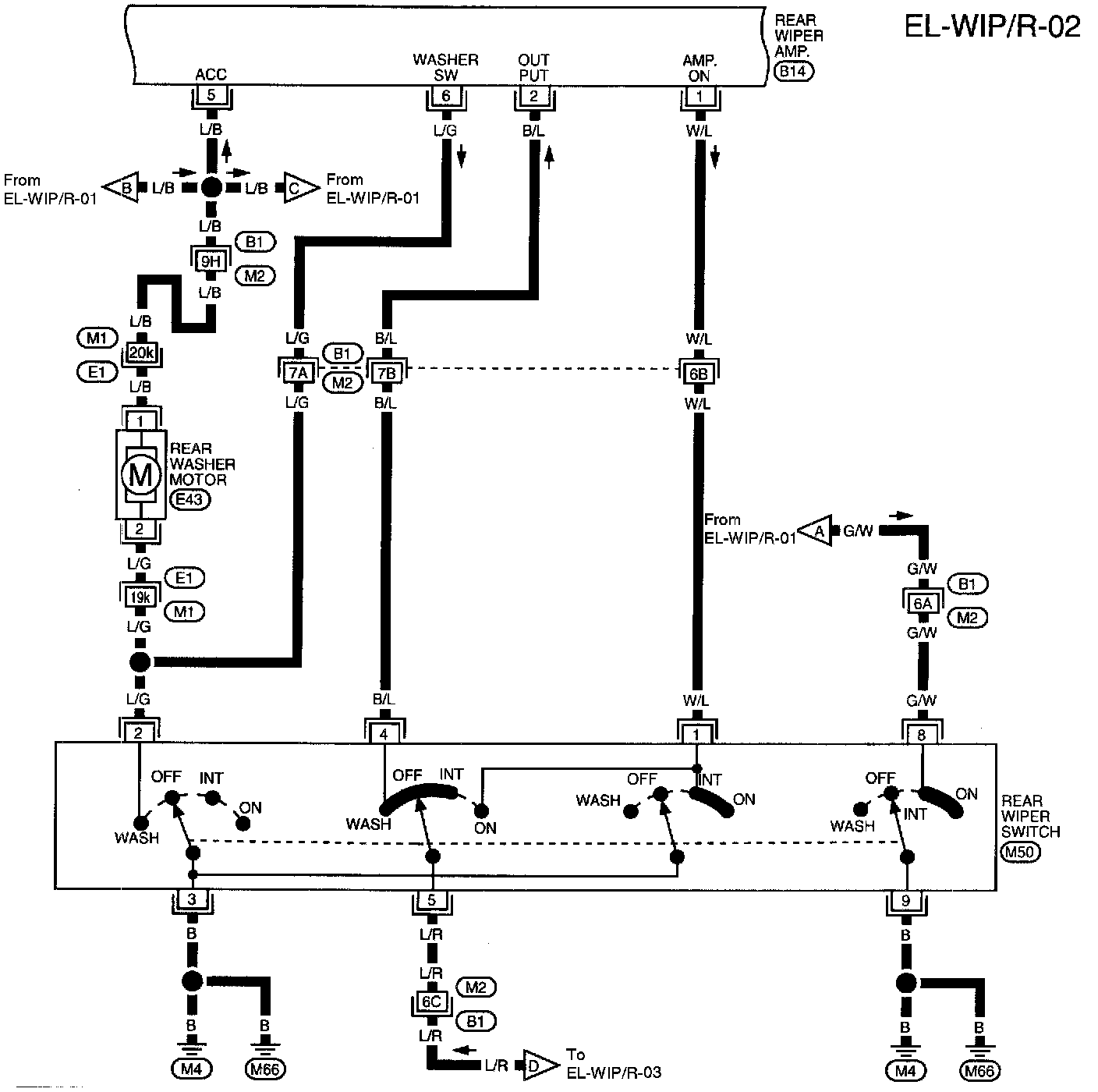

(Part 2 of 3)
Rear Wiper Amplifier.
Rear Wiper Switch

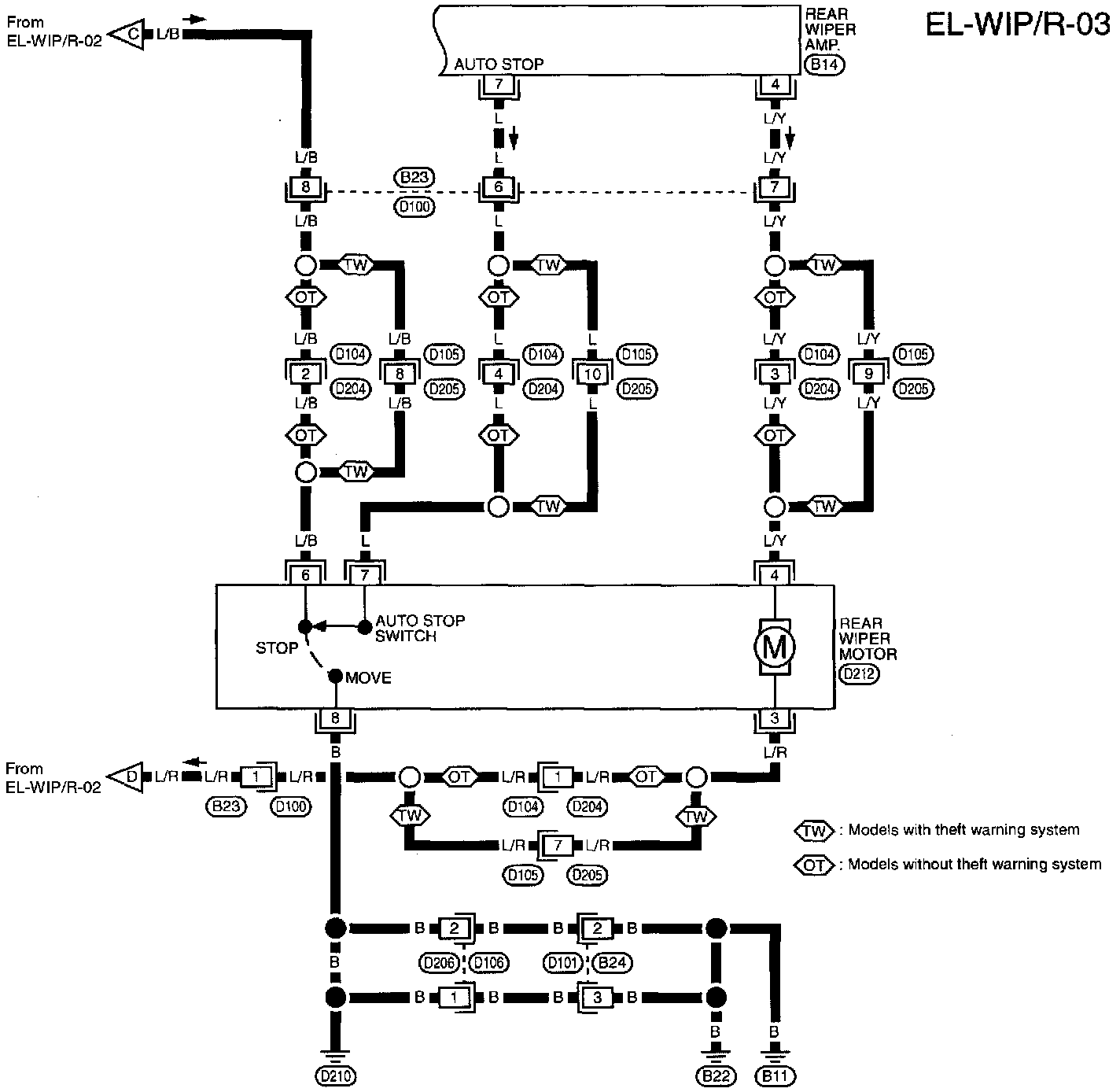

(Part 3 of 3)
Rear Wiper Amplifier.
Rear Wiper Motor

Circuit Diagram

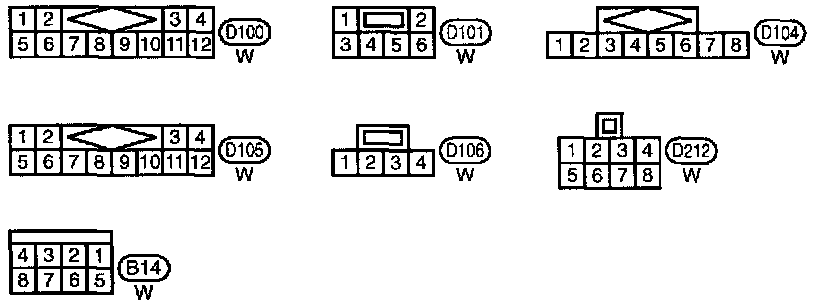

Circuit Connectors

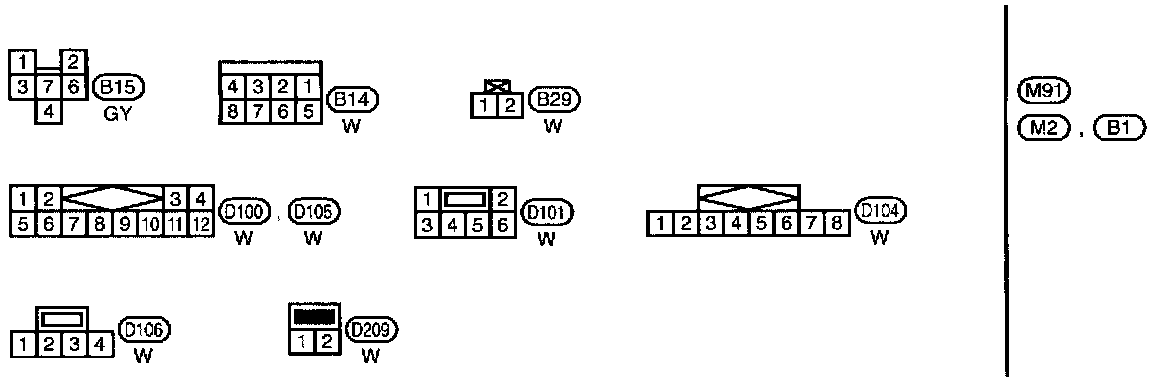

B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements





M91 Terminal Arrangement
