SC-START-1

M/T MODELS

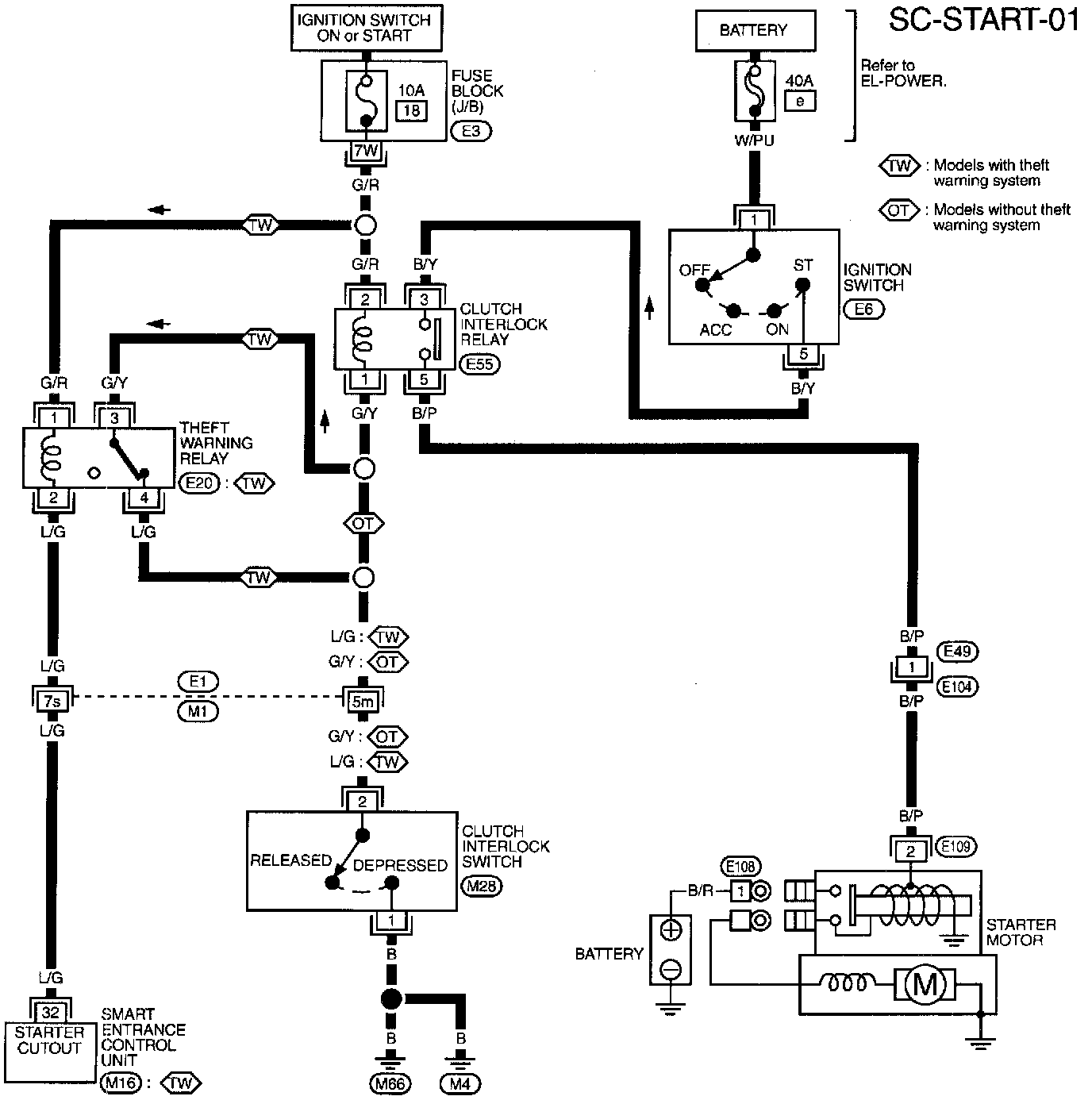

Starting System M/T:




SC-START-1

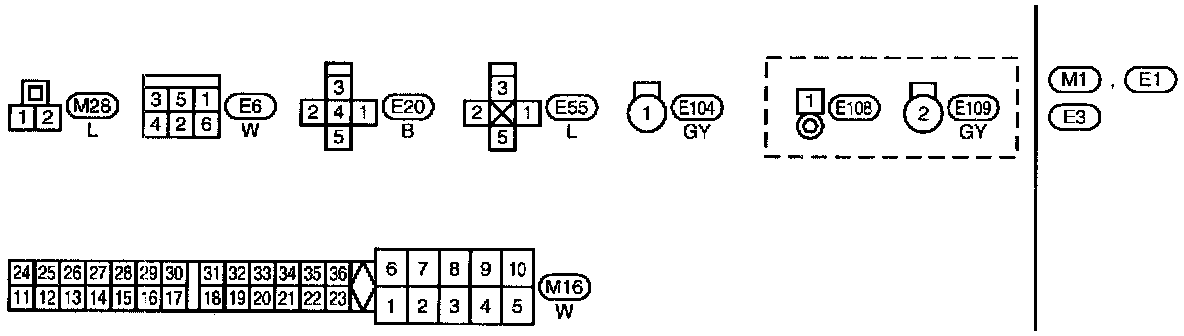

Circuit Connectors





E1, M1 Body, Engine and Main Harness Terminal Arrangements





E3 Terminal Arrangement
