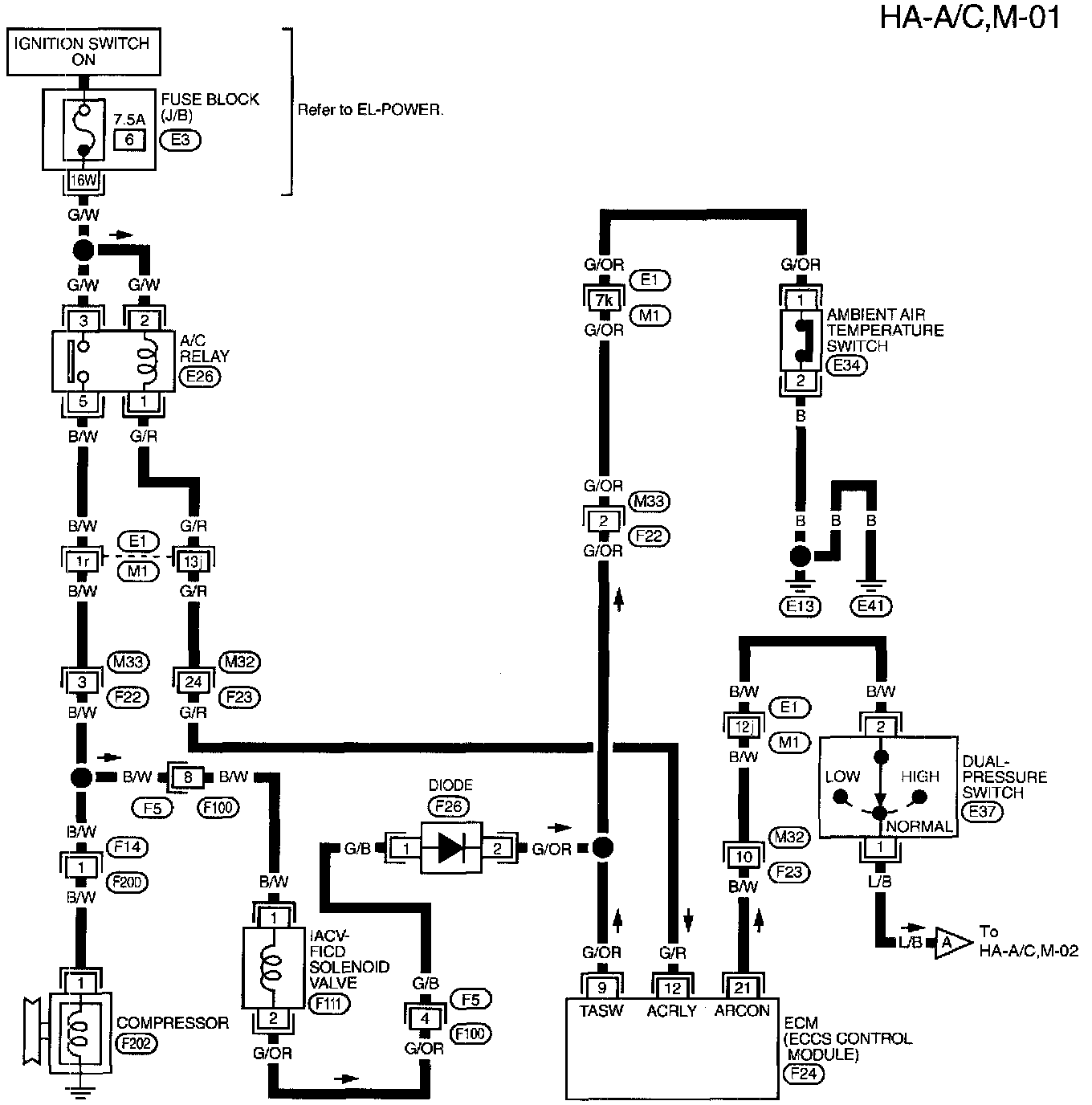

HA-A/C, M-01




HA-A/C,M-1

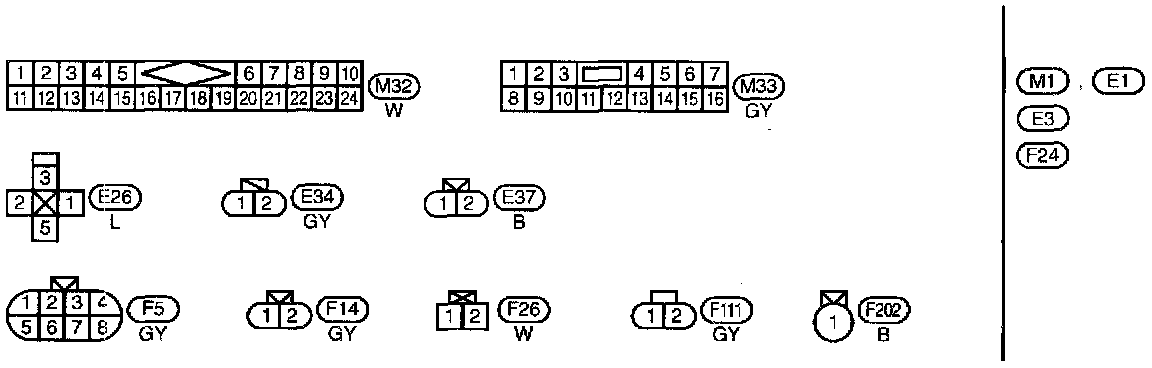

Circuit Connectors





E1, M1 Body, Engine and Main Harness Terminal Arrangements





E3 Terminal Arrangement





F24 Terminal Arrangement
