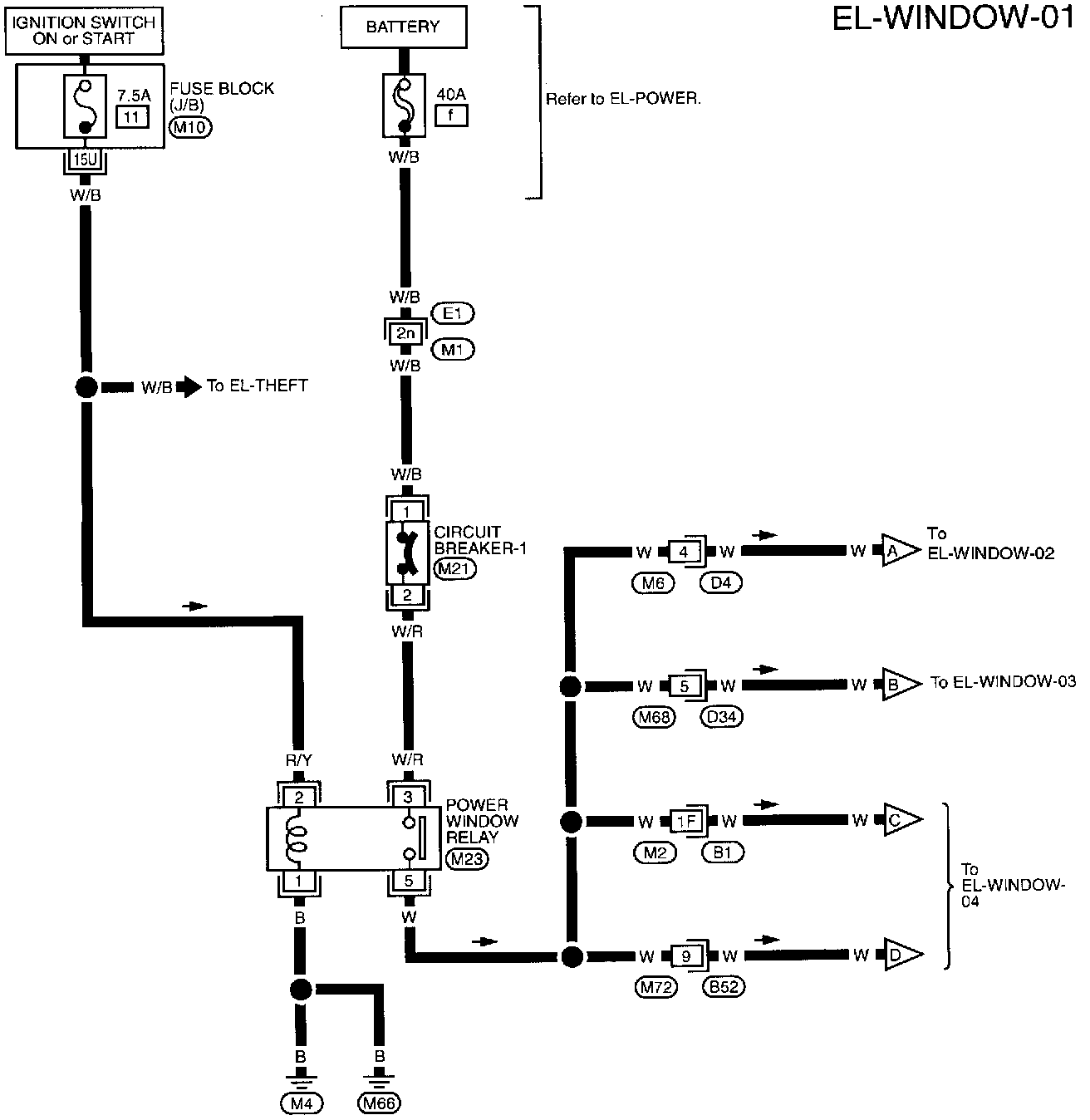

EL-WINDOW-01




EL-WINDOW-1

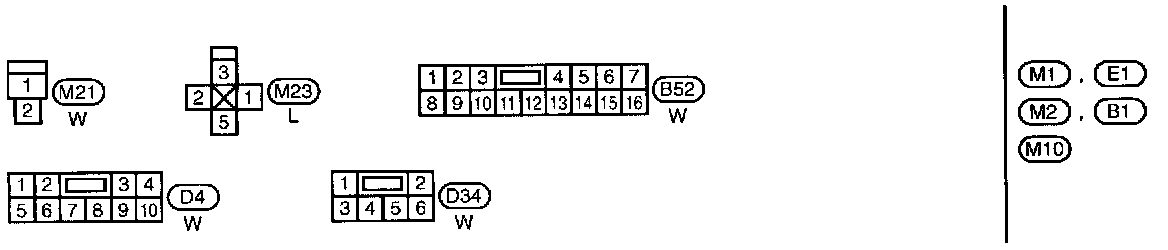

Circuit Connectors





B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements






M10 Terminal Arrangement
