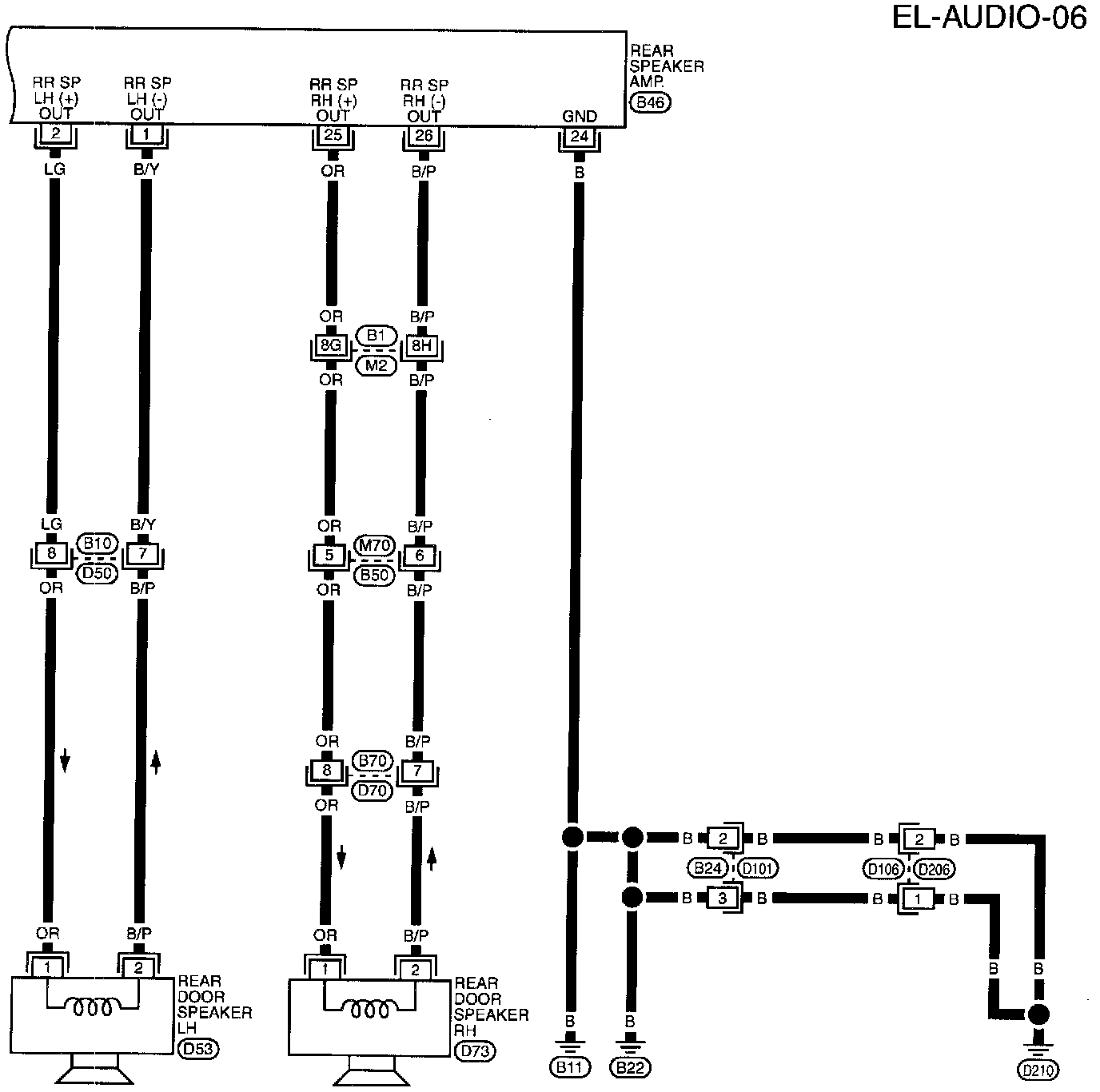

EL-AUDIO-06
EL-AUDIO-06
With Bose Audio System
EL-AUDIO-6

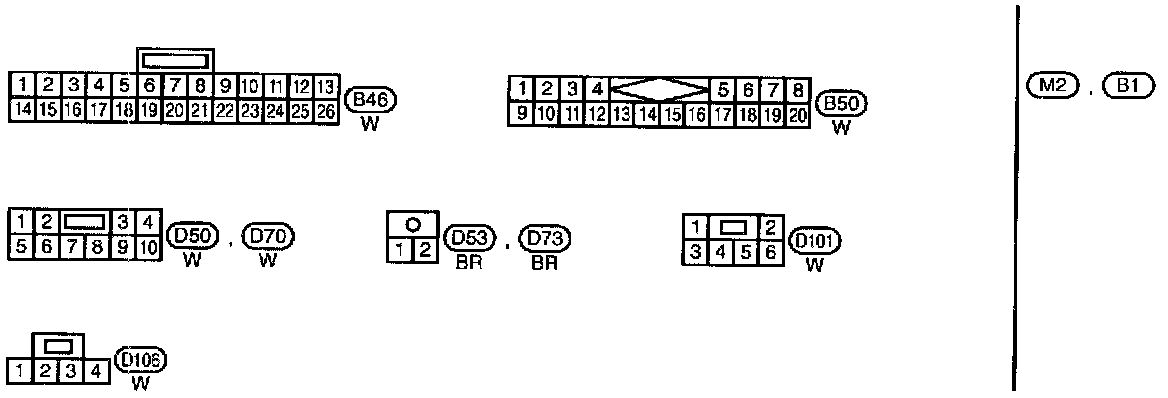

Circuit Connectors
B1, M2 Body, Engine and Main Harness Terminal Arrangements
