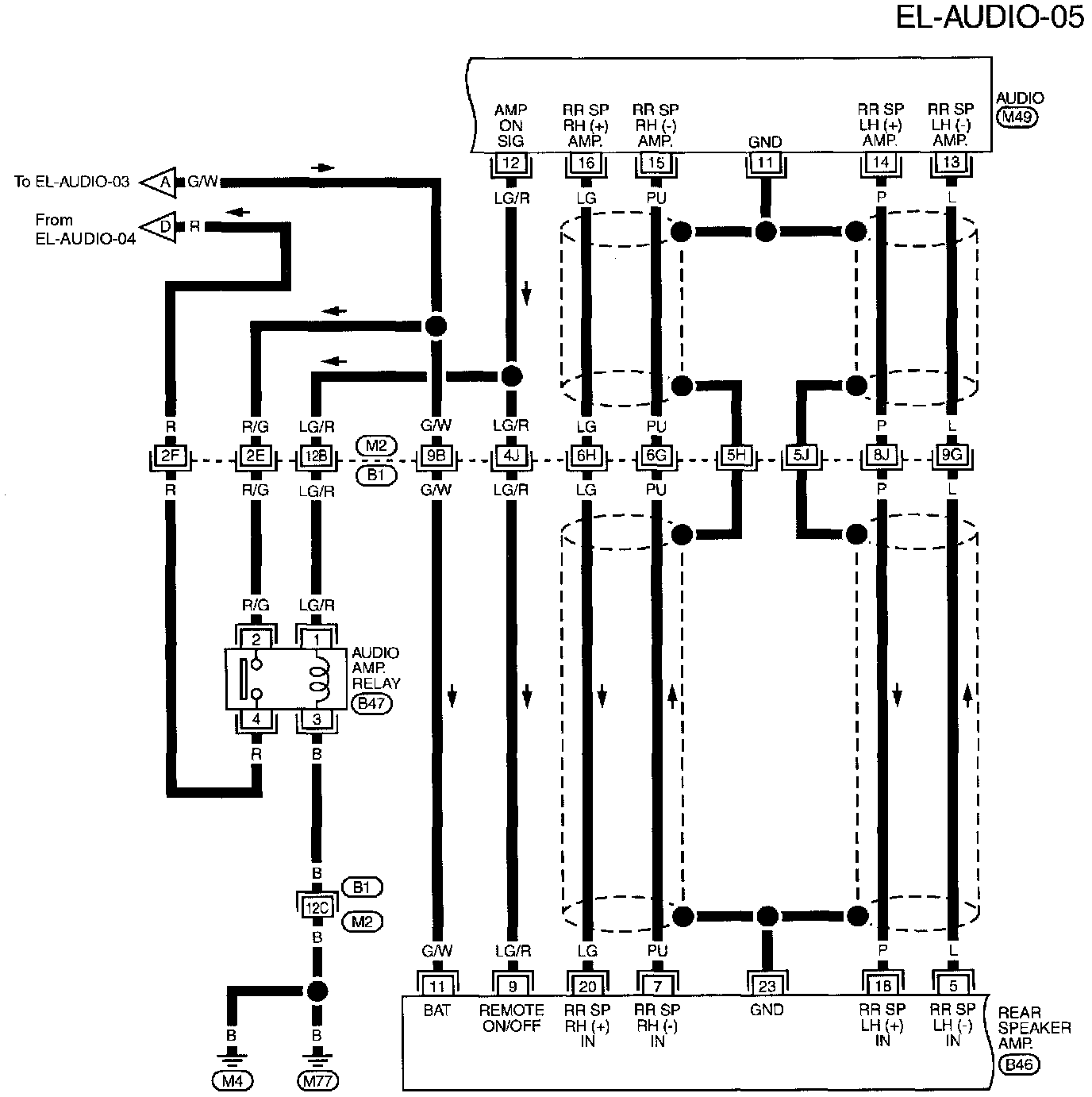

EL-AUDIO-05
EL-AUDIO-05
With Bose Audio System
EL-AUDIO-5

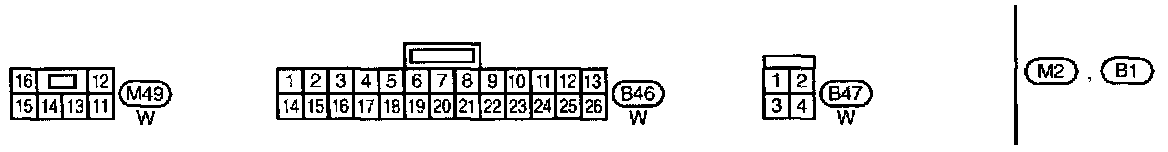

Circuit Connectors
B1, M2 Body, Engine and Main Harness Terminal Arrangements
