Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
To VIN # 350000
>>
EL Diagrams
>>

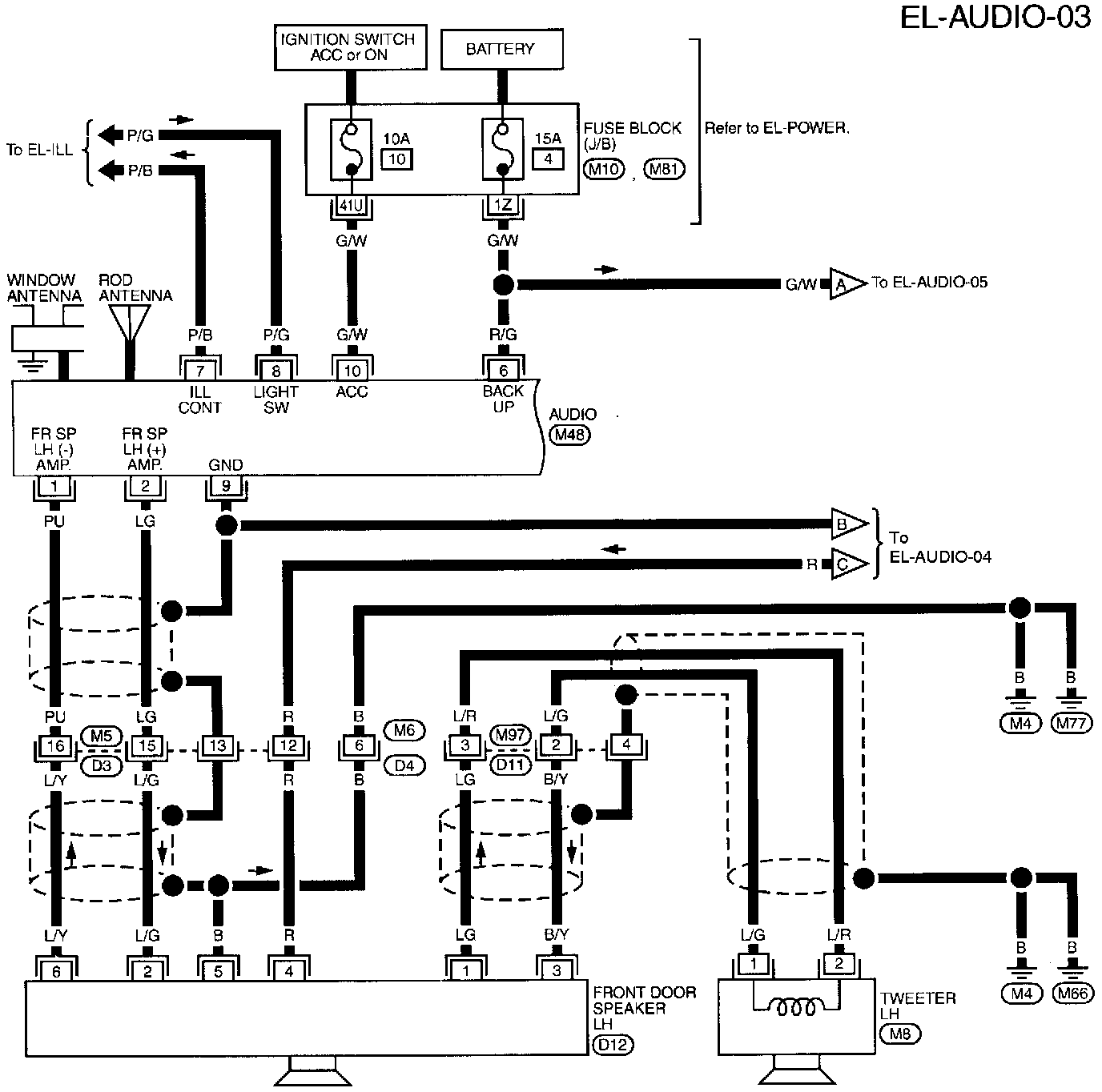

EL-AUDIO-03
EL-AUDIO-03
With Bose Audio System
EL-AUDIO-3

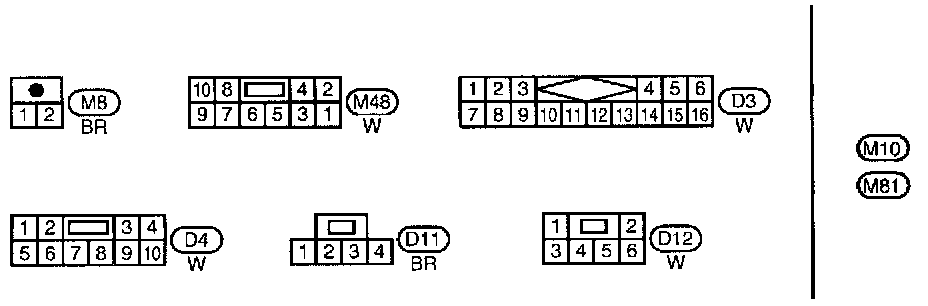

Circuit Connectors
M10, M81 Terminal Arrangement
