To VIN # 350000
>>
EL Diagrams
>>

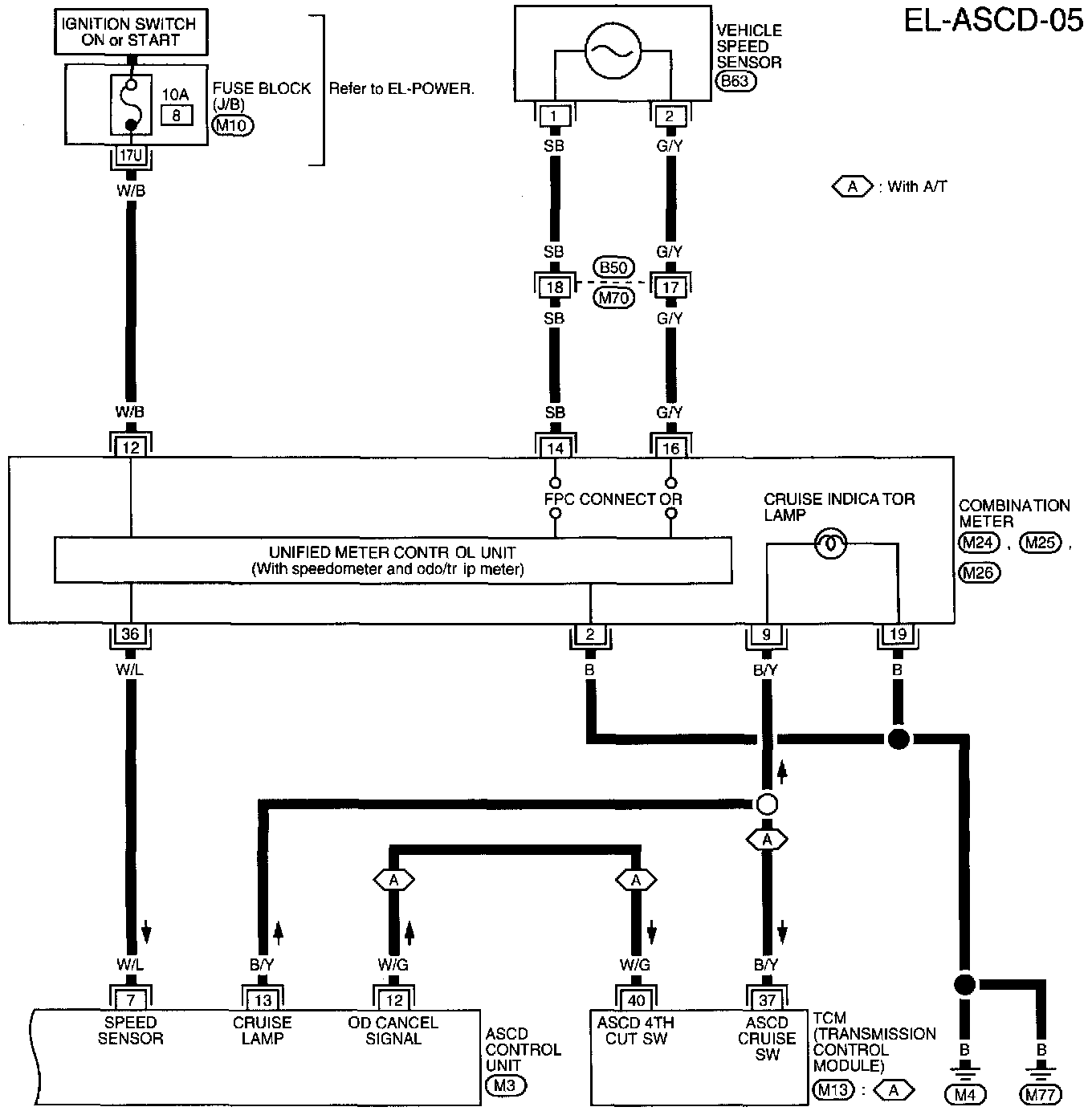

EL-ASCD-05
EL-ASCD-05
EL-ASCD-5

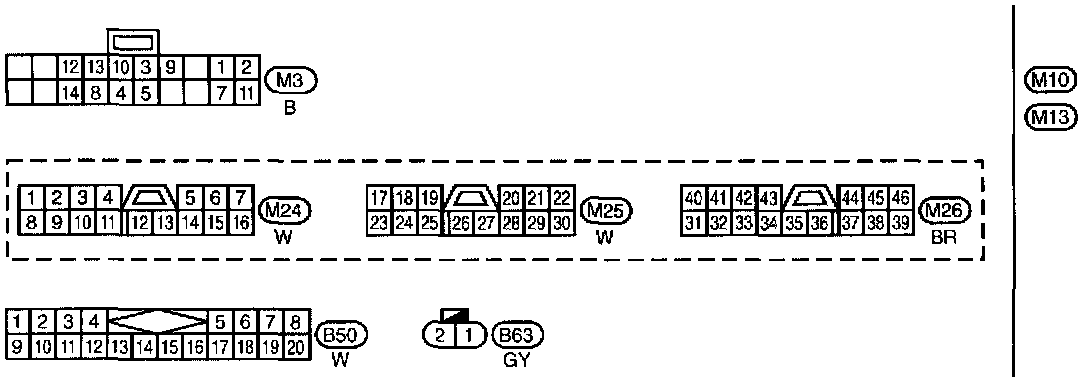

Circuit Connectors
M10 Terminal Arrangement
M13 Terminal Arrangement
