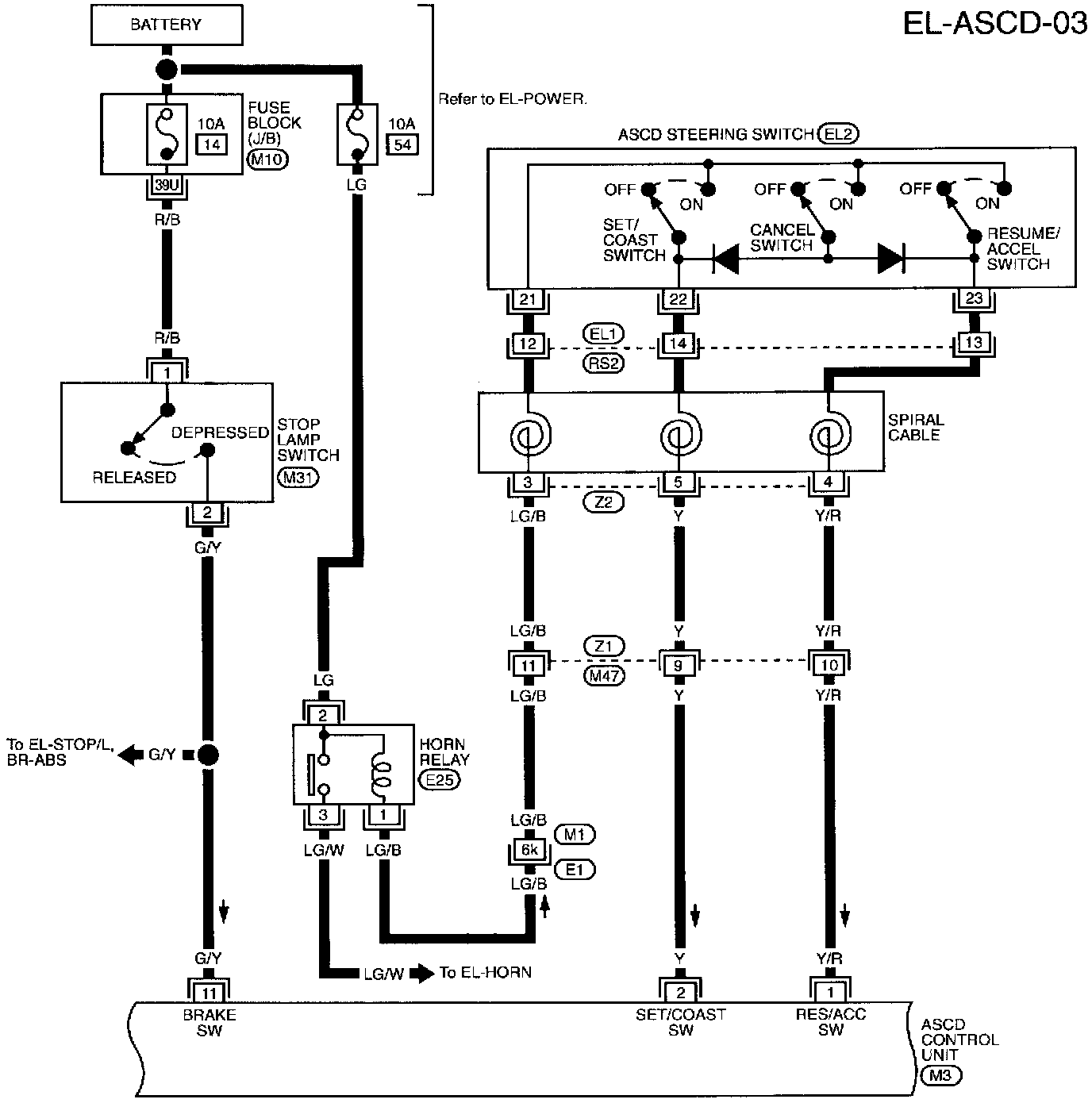

EL-ASCD-03
EL-ASCD-03
EL-ASCD-3
Circuit Connectors
E1, M1 Body, Engine and Main Harness Terminal Arrangements
M10 Terminal Arrangement
