Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
To VIN # 350000
>>
EC Diagrams
>>

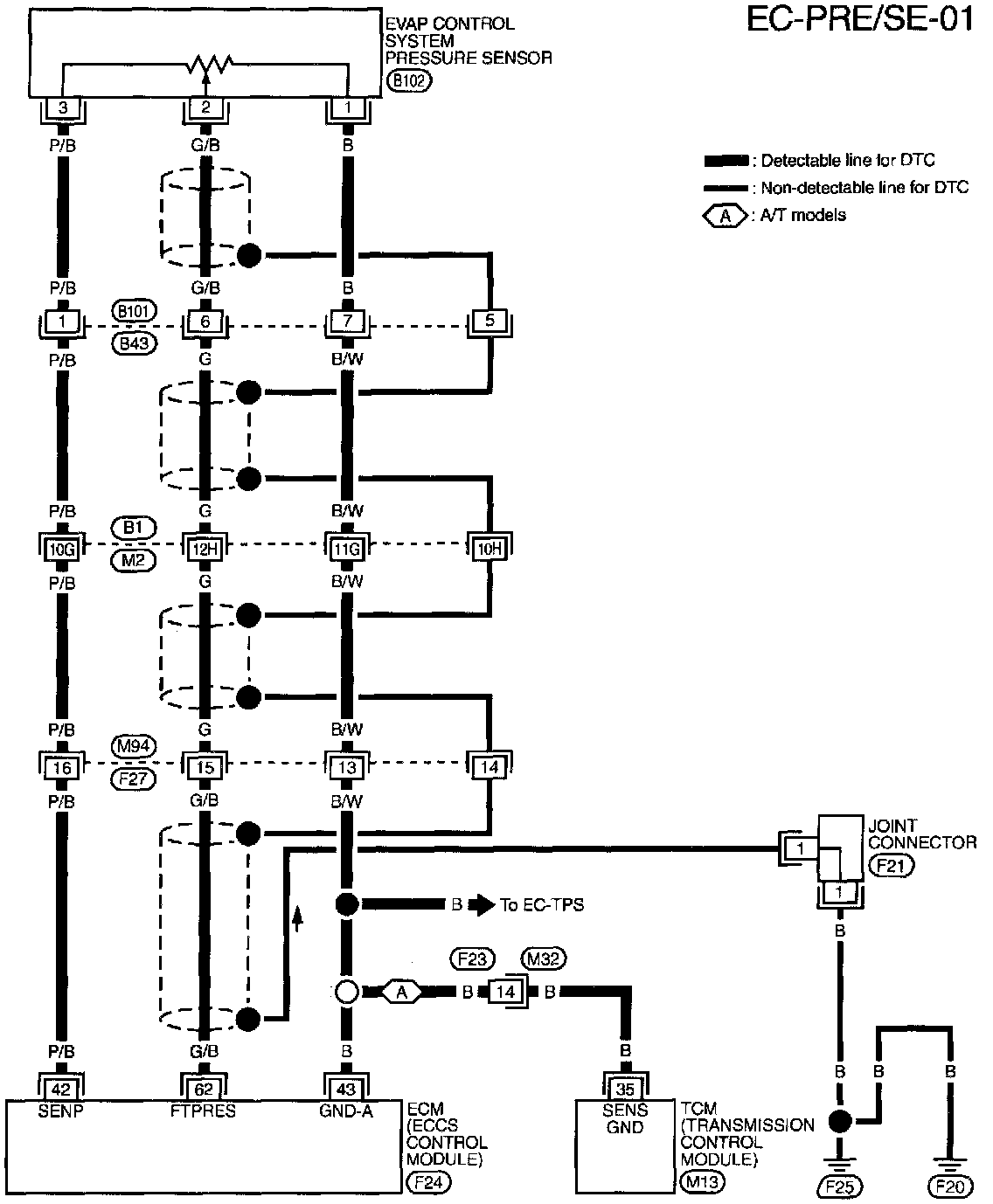

EC-PRE/SE
EC-PRE/SE
EC-PRE/SE-1

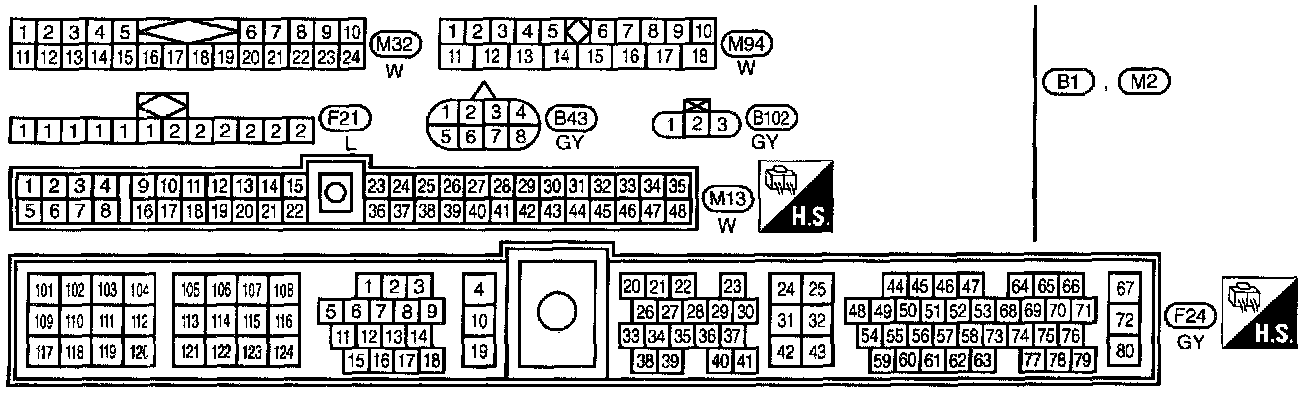

Circuit Connectors
B1, M2 Body, Engine and Main Harness Terminal Arrangements
