EC-PGC/V

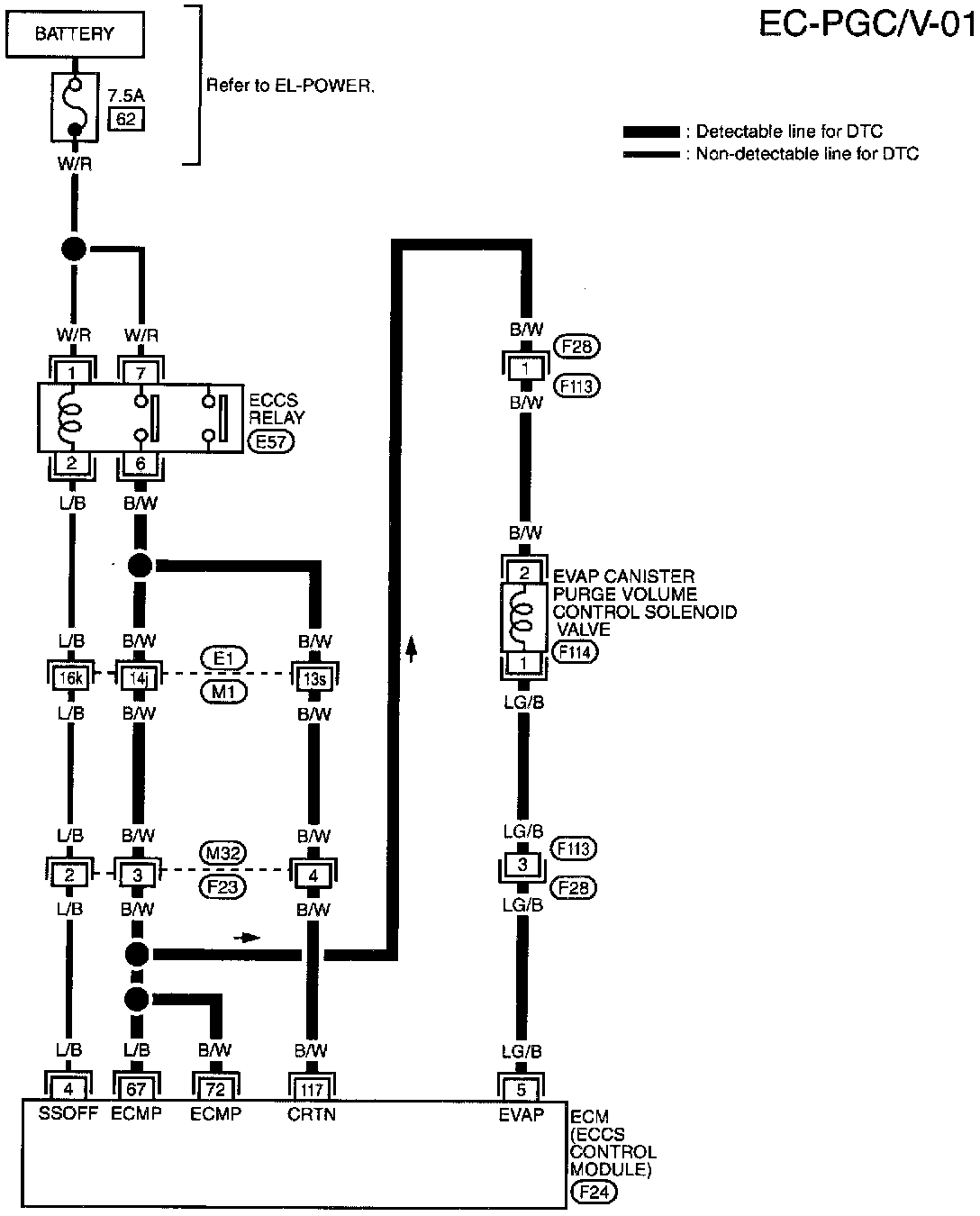

EC-PGC/V-1

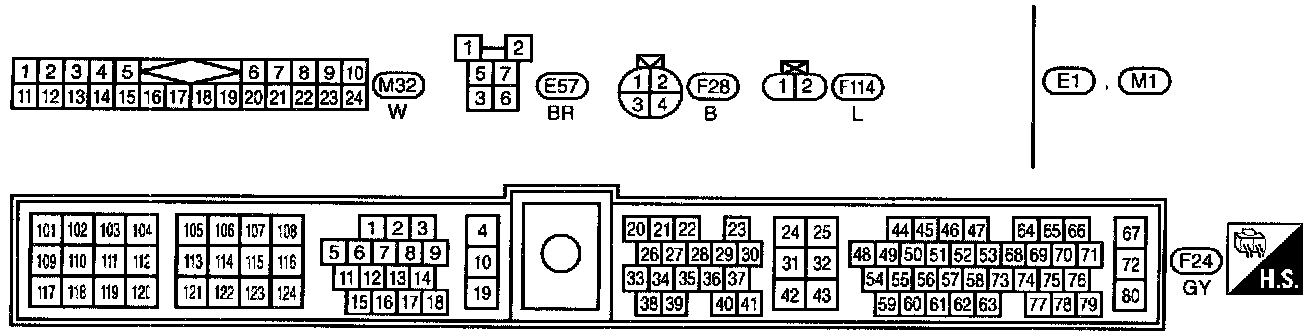

Circuit Connectors





E1, M1 Body, Engine and Main Harness Terminal Arrangements
