EC-BYPS/V

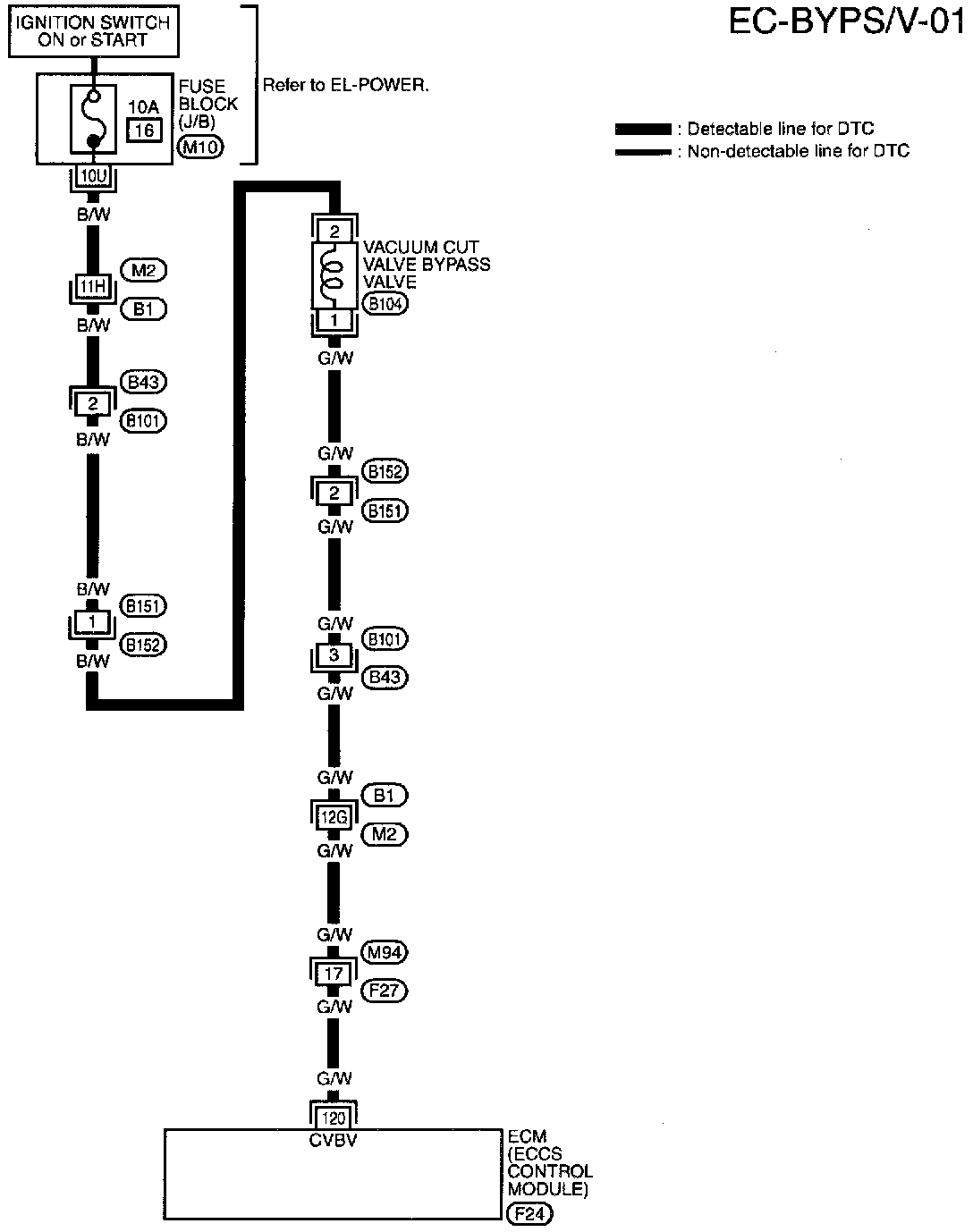

EC-BYPS/V-1 (CIRCUIT)

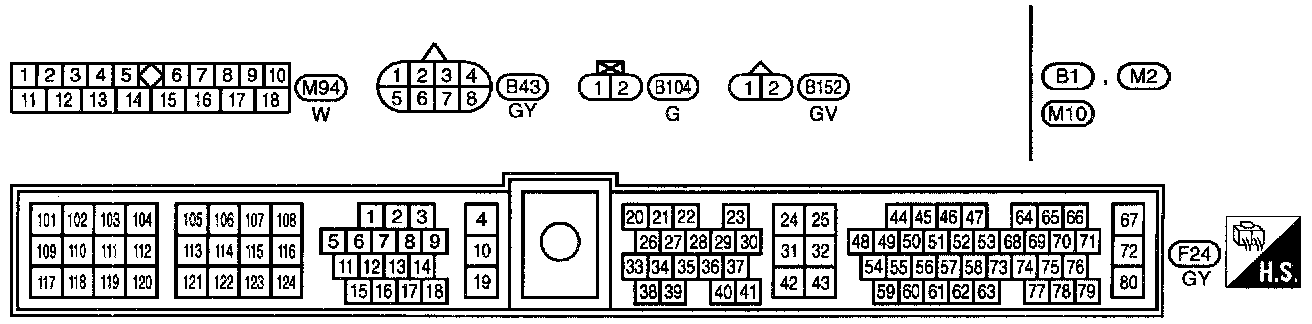

Circuit Connectors





B1, M2 Body, Engine and Main Harness Terminal Arrangements





M10 Terminal Arrangement
