To VIN # 350000
>>
BR Diagrams
>>

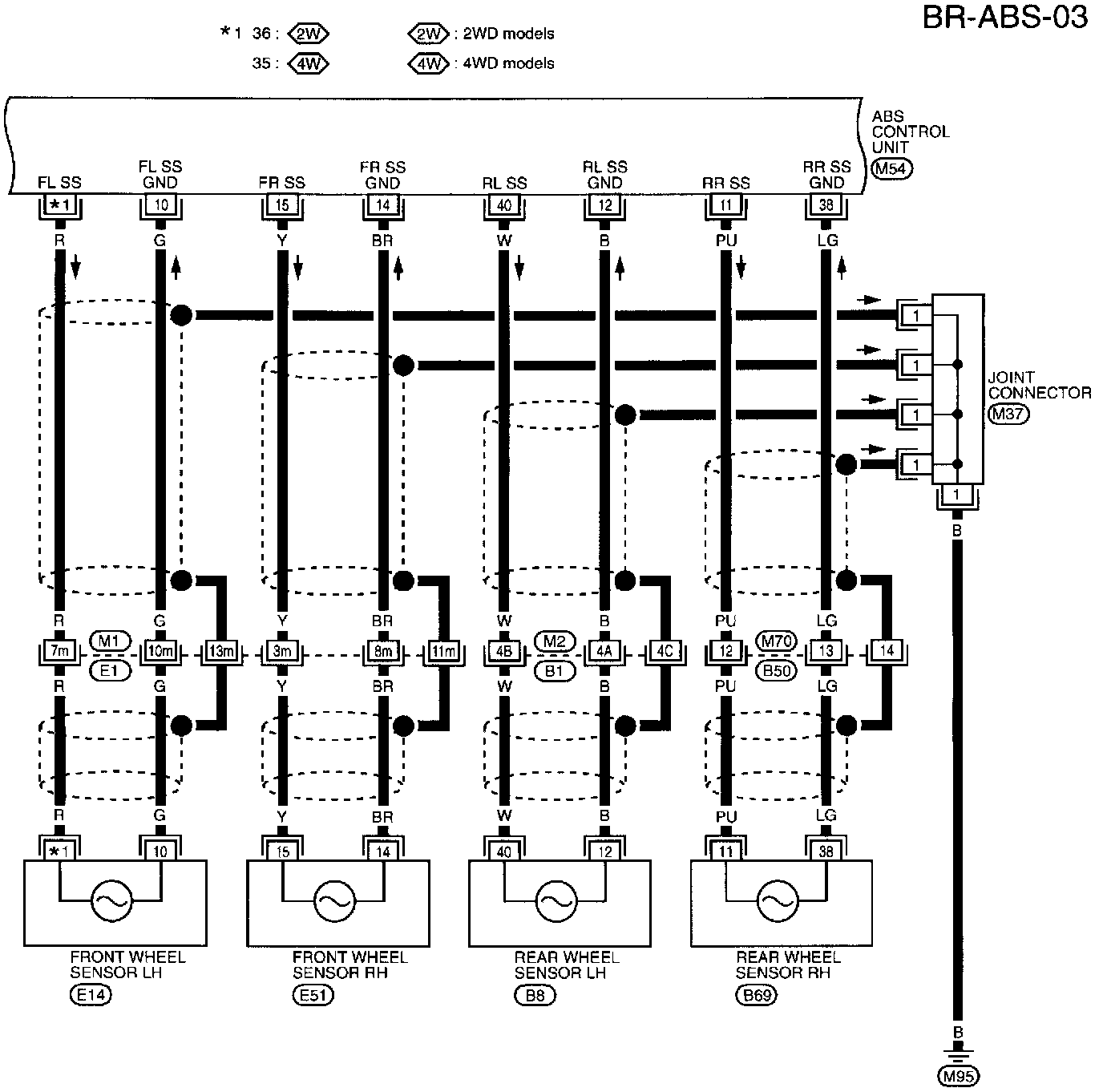

BR-ABS-03
BR-ABS-03
BR-ABS-03:
BR-ABS-3

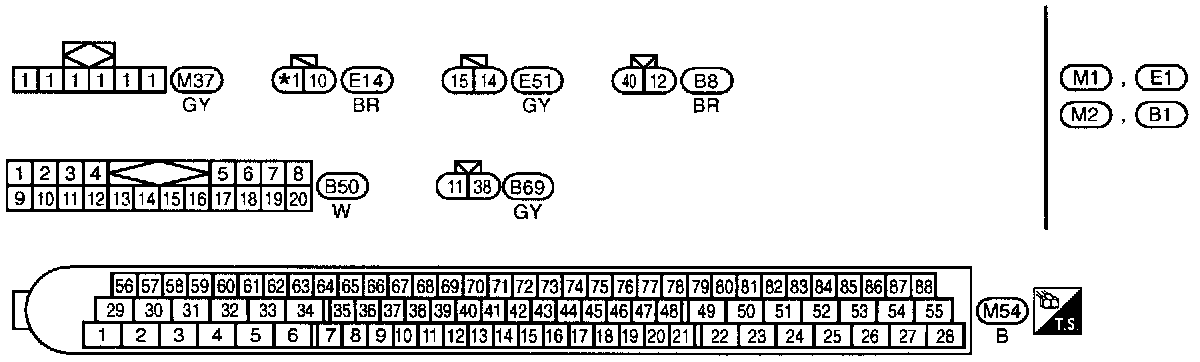

Circuit Connectors
B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements
