Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
To VIN # 350000
>>
BR Diagrams
>>

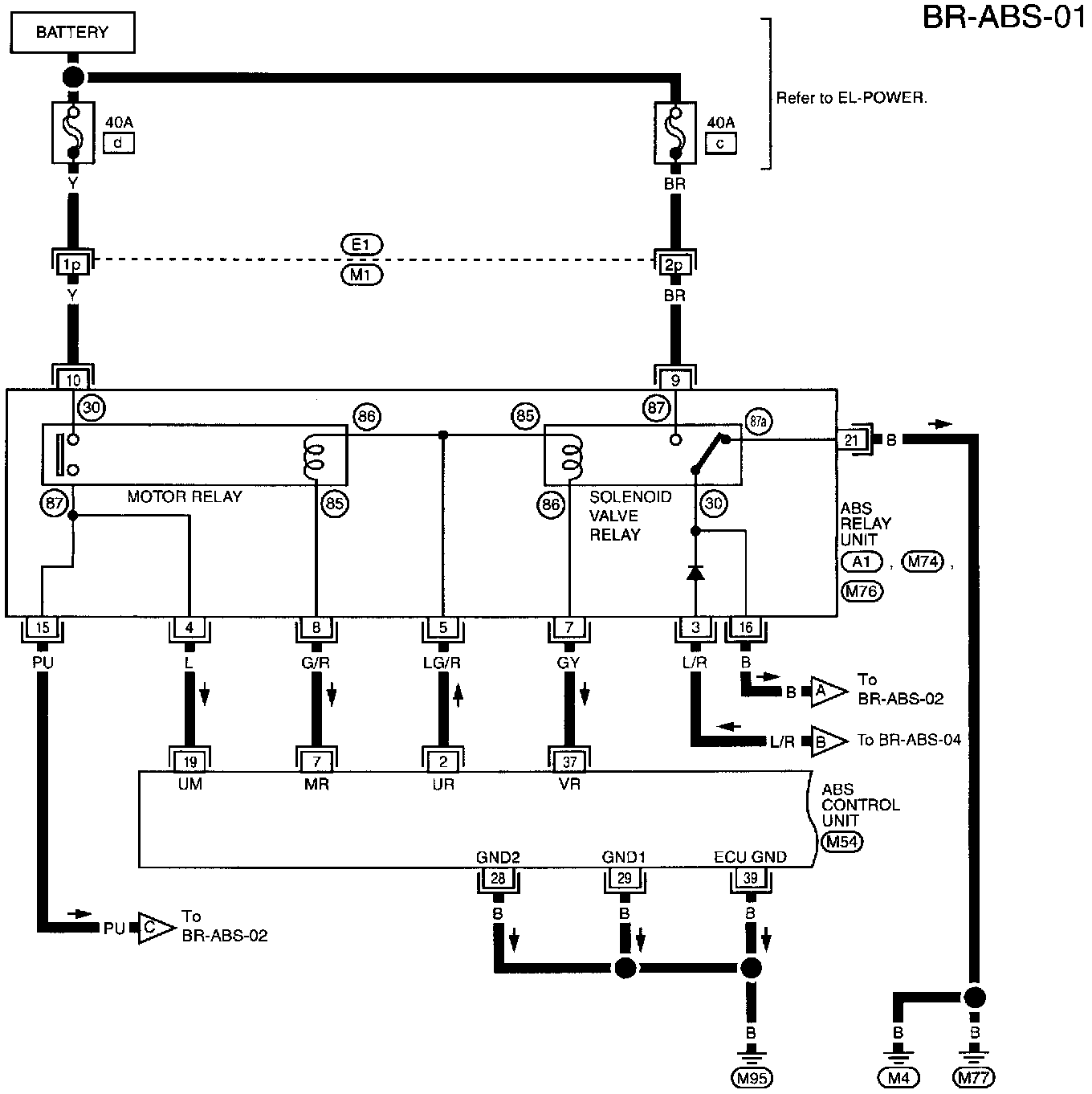

BR-ABS-01
BR-ABS-01
BR-ABS-01:
BR-ABS-1

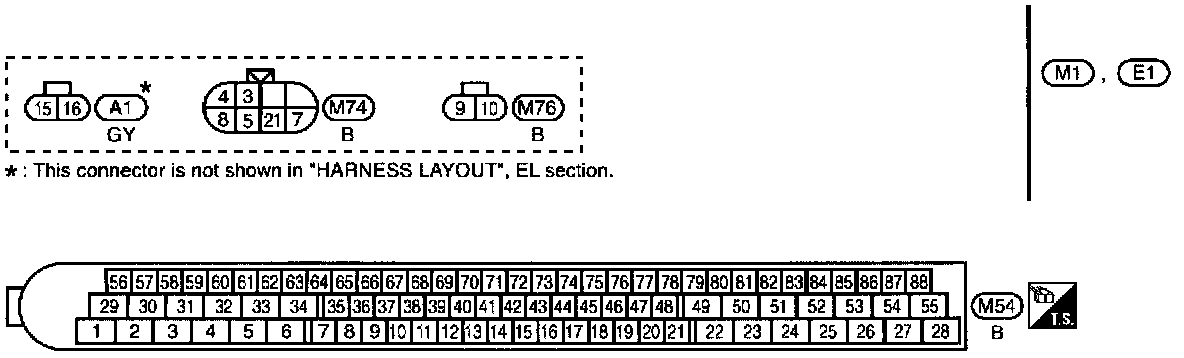

Circuit Connectors
E1, M1, Body, Engine and Main Harness Terminal Arrangements
