Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> System Diagram >> To VIN # 350000

To VIN # 350000

CLOSE

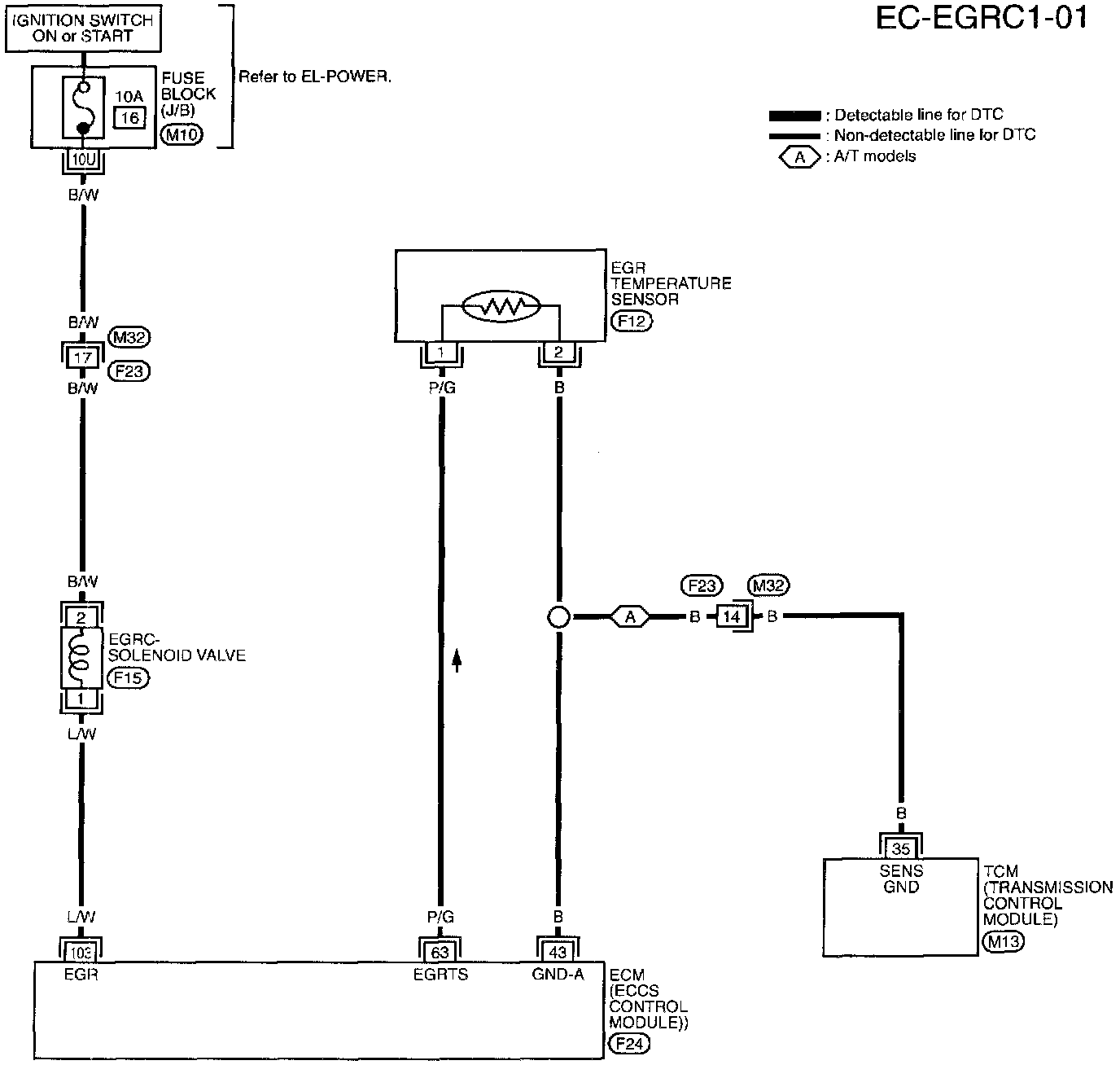

Circuit Diagram

CLOSE

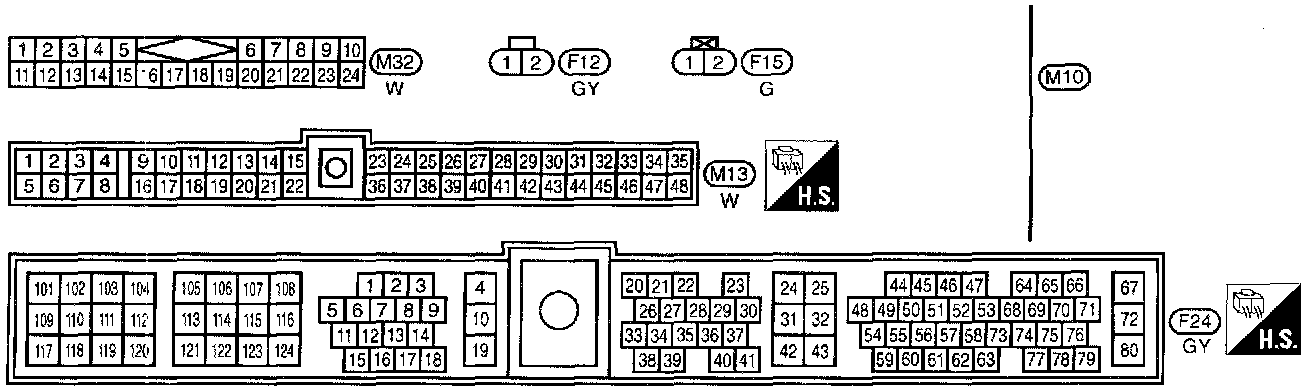

Circuit Connectors

M10 Terminal Arrangement

(OPEN)

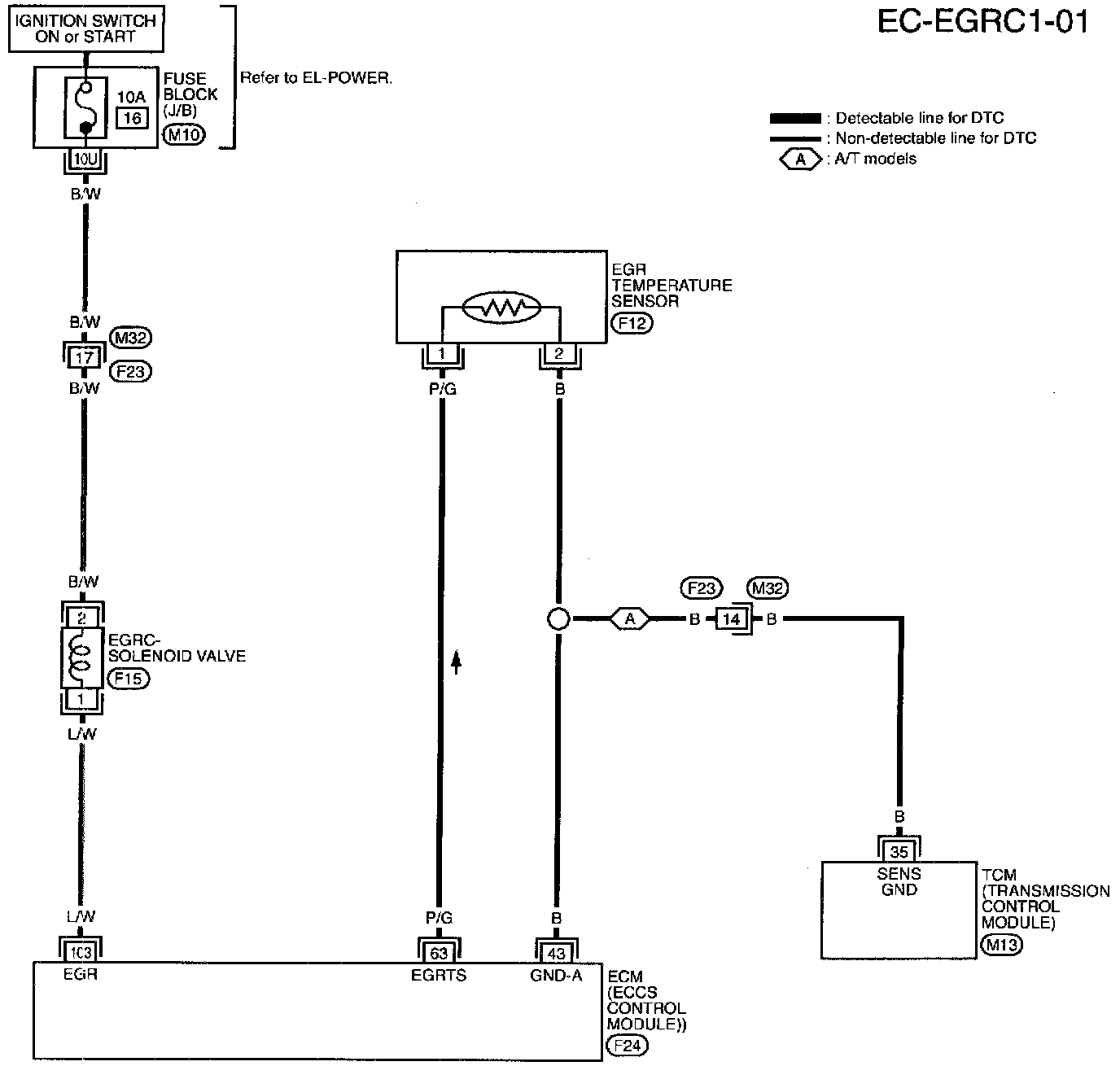

Circuit Diagram

(OPEN)

Circuit Connectors

M10 Terminal Arrangement
