Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
To VIN # 350000
To VIN # 350000
Circuit Diagrams

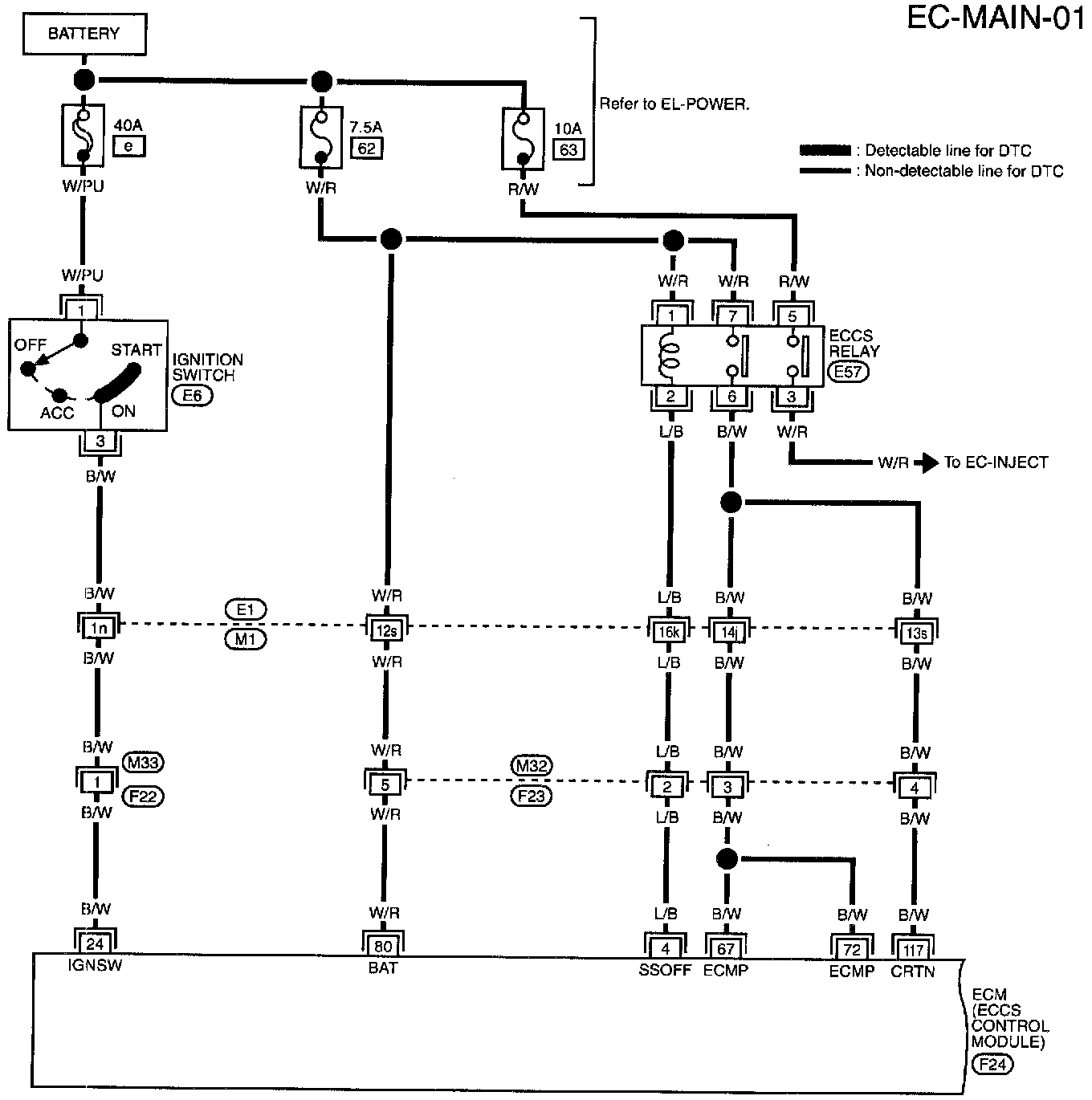

EC-MAIN-01:

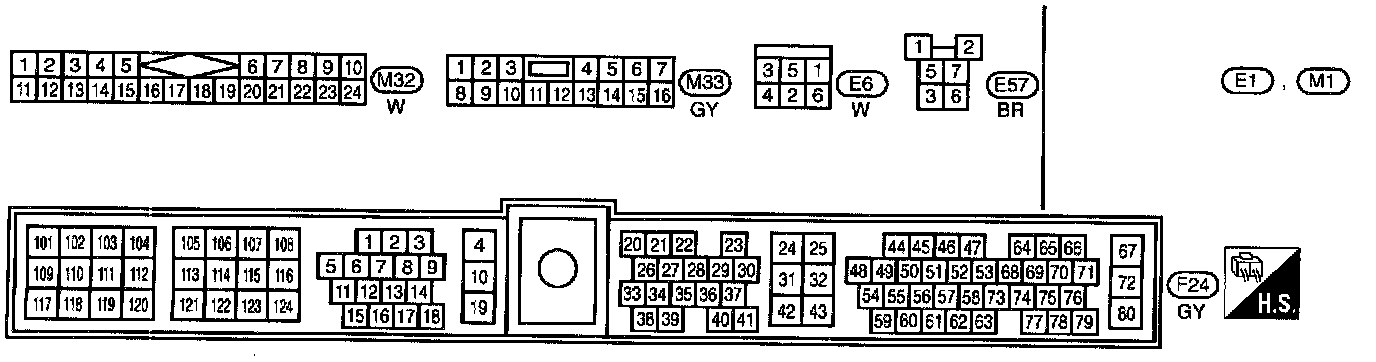

EC-MAIN-01 Connectors:

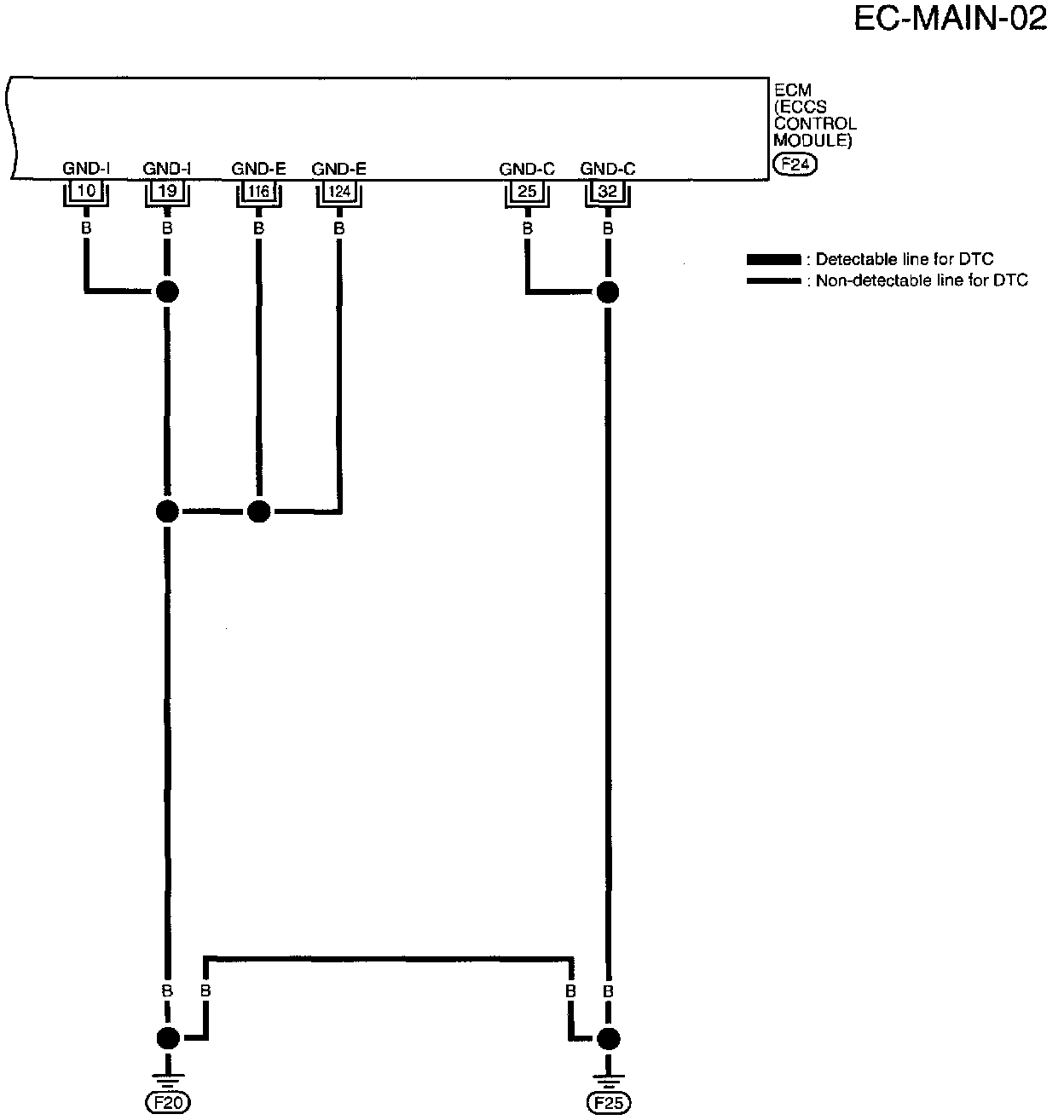

EC-MAIN-02:

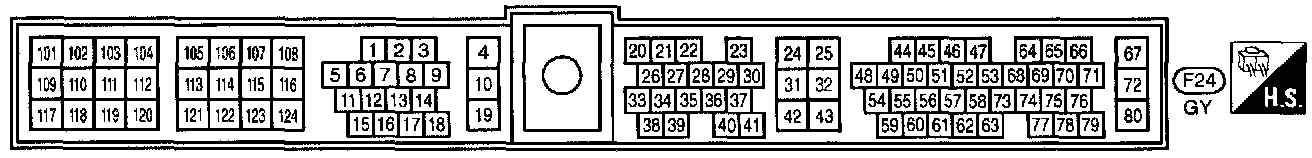

EC-MAIN-02 Connectors:

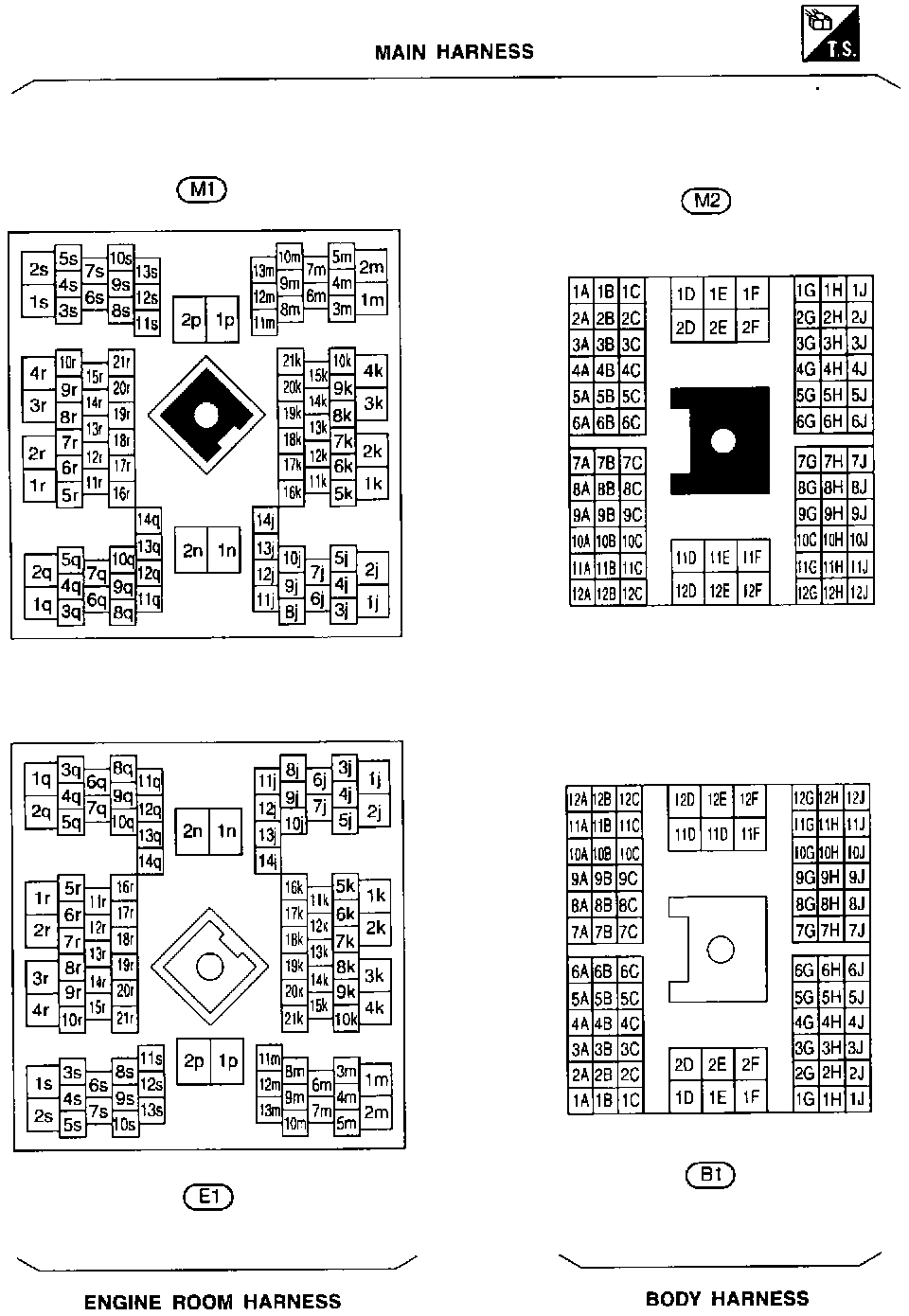

E1, M1 Body, Engine and Main Harness Terminal Arrangements
