Warning Lamps

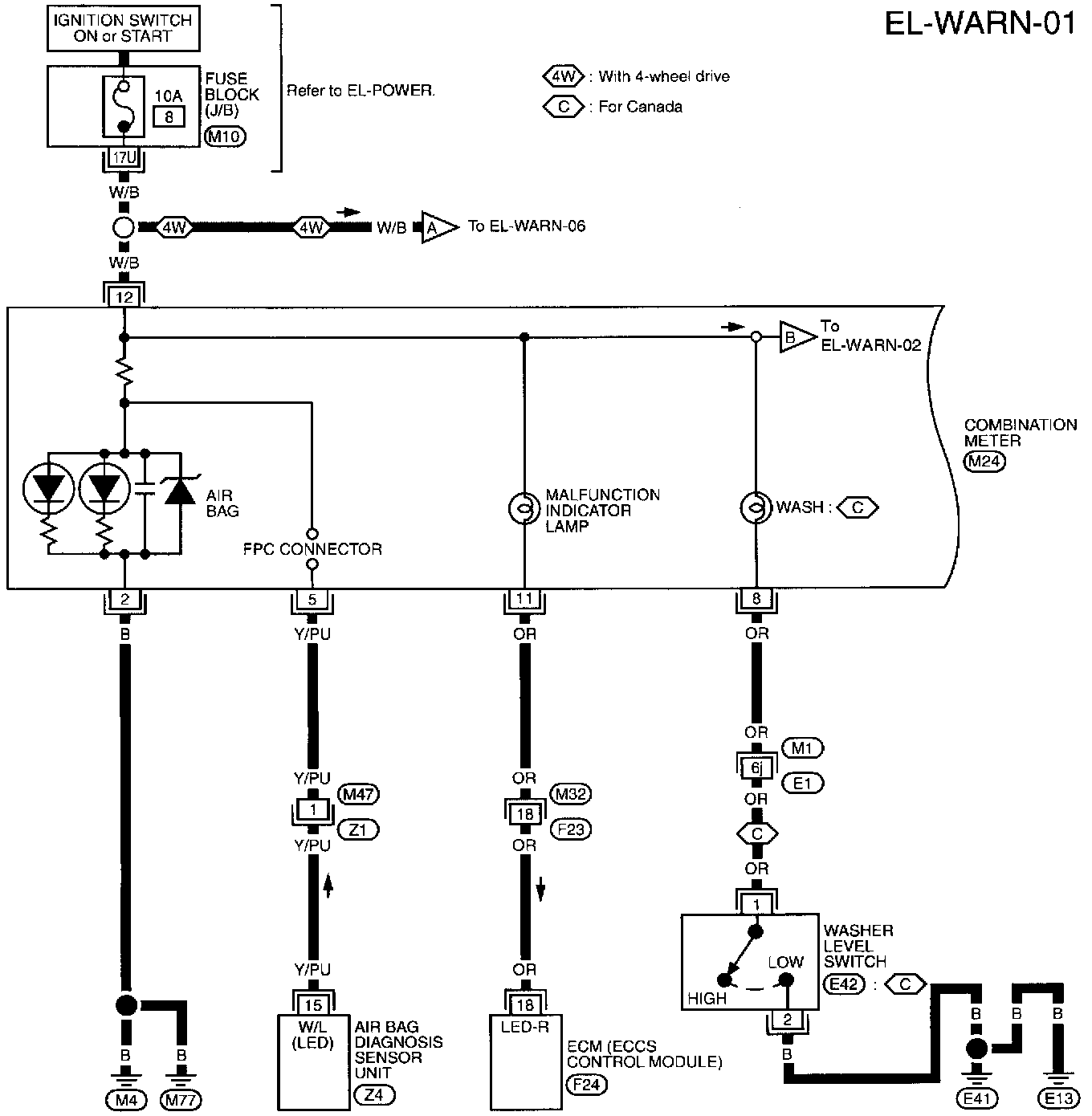

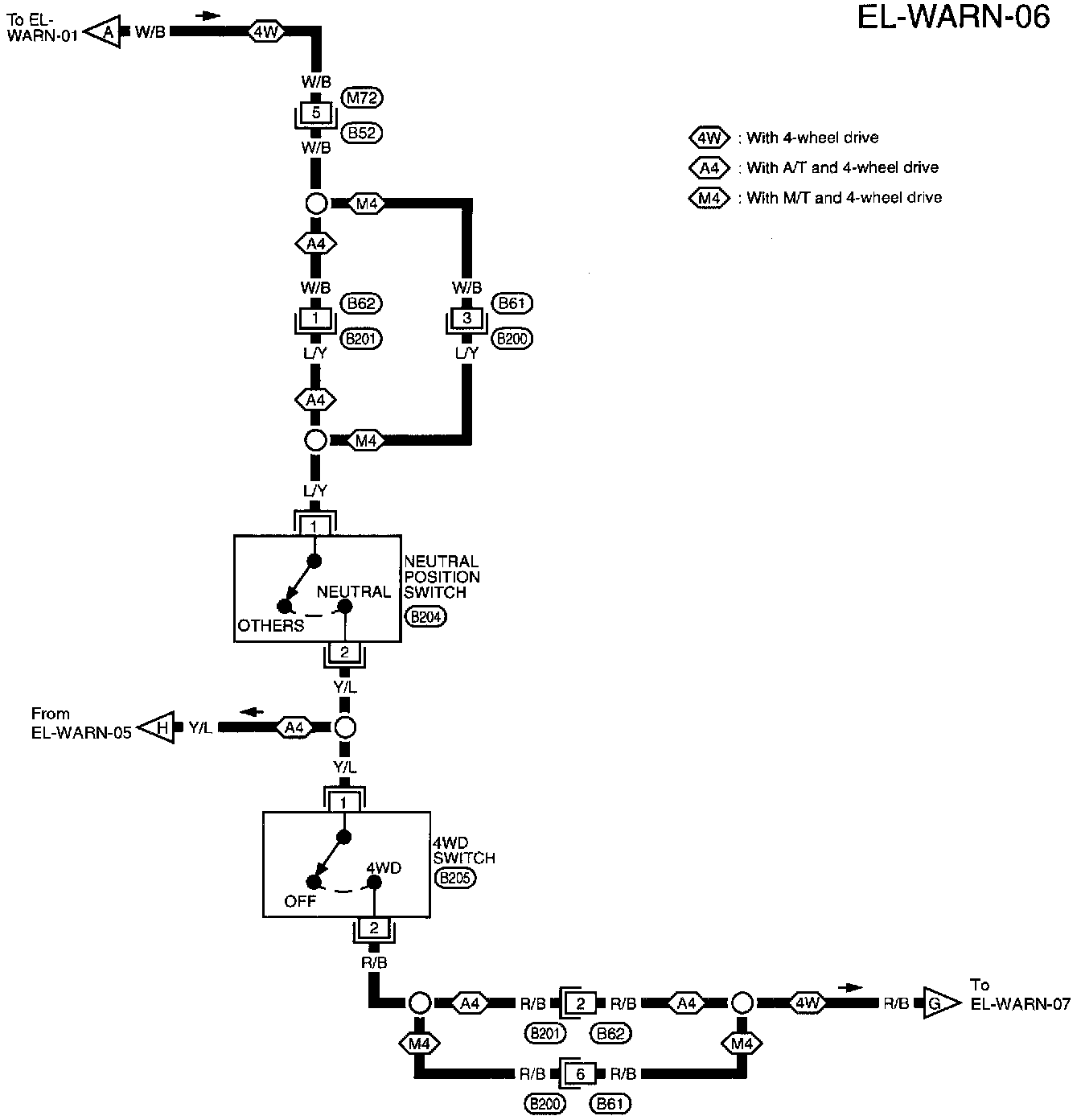

Schematic




(Part 1 Of 7)
Air Bag Diagnosis Sensor Unit
Combination Meter
- Malfunction Indicator Lamp
- FPC Connector
Fuse Block (J/B)
ECM (ECCS Control Module)
Washer Level Switch

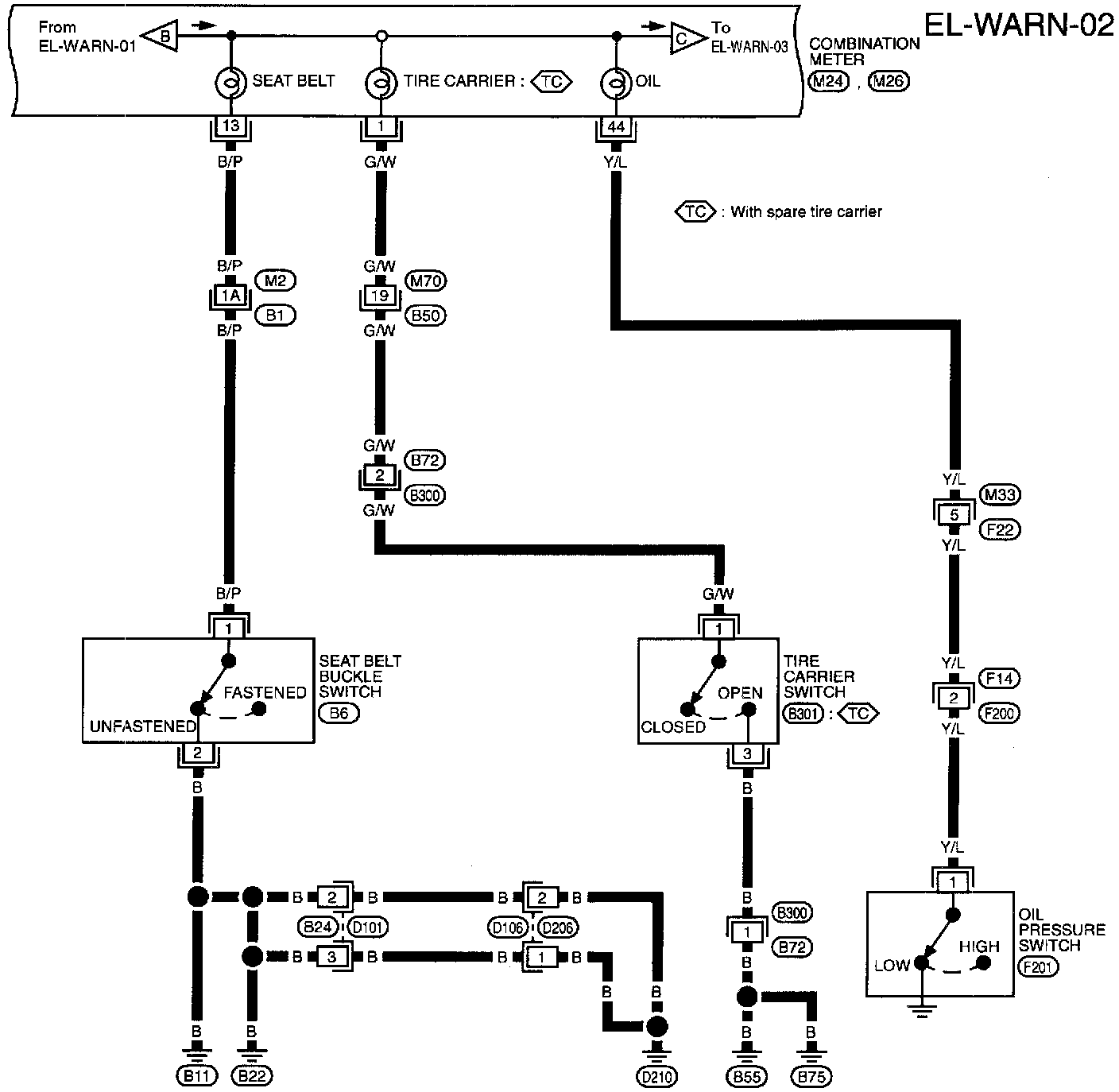

(Part 2 Of 7)
Combination Meter
Oil Pressure Switch
Seat Belt Buckle Switch
Tire Carrier Switch

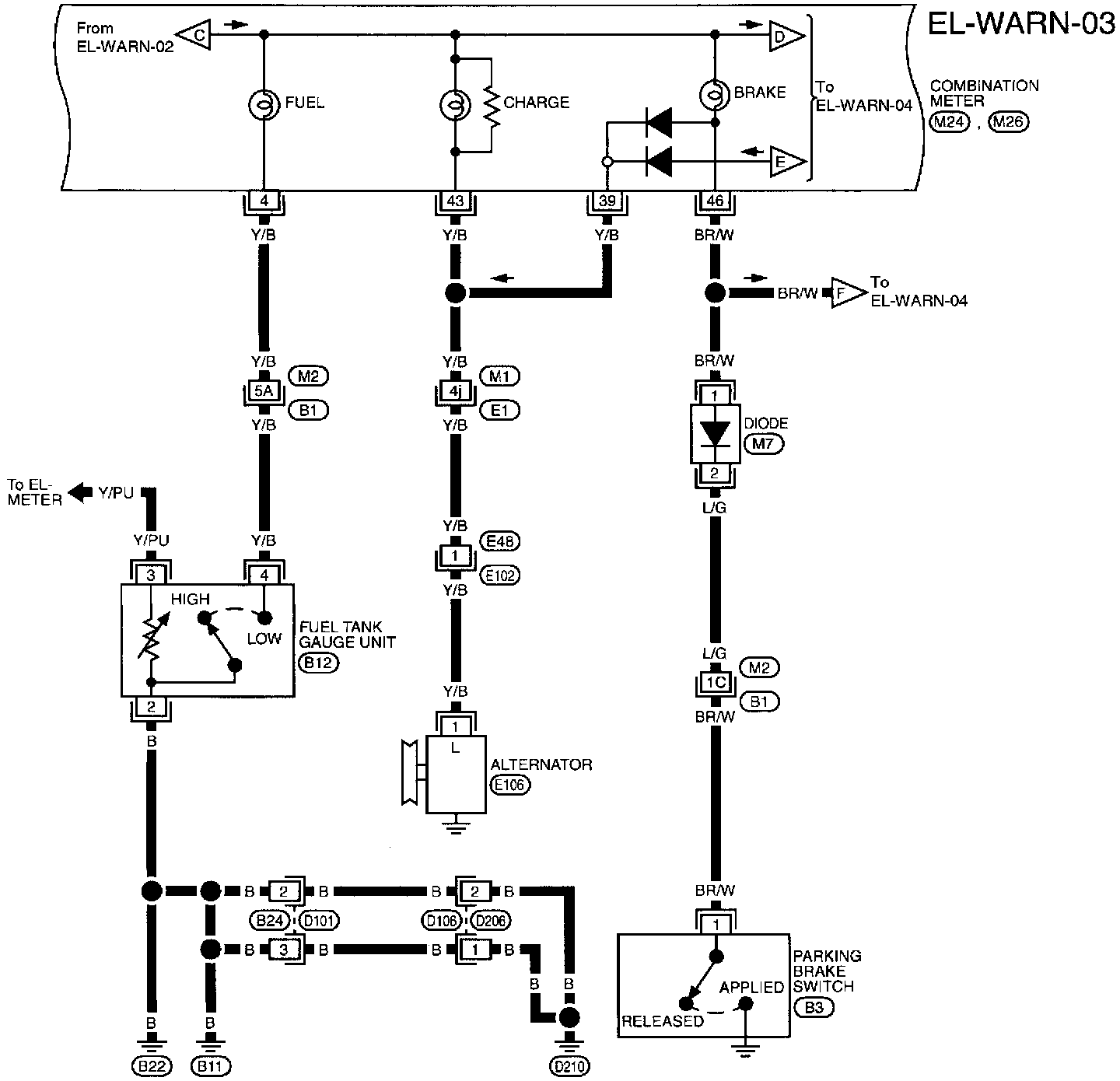

(Part 3 Of 7)
Alternator
Combination Meter
Fuel Tank Gauge Unit
Parking Brake Switch

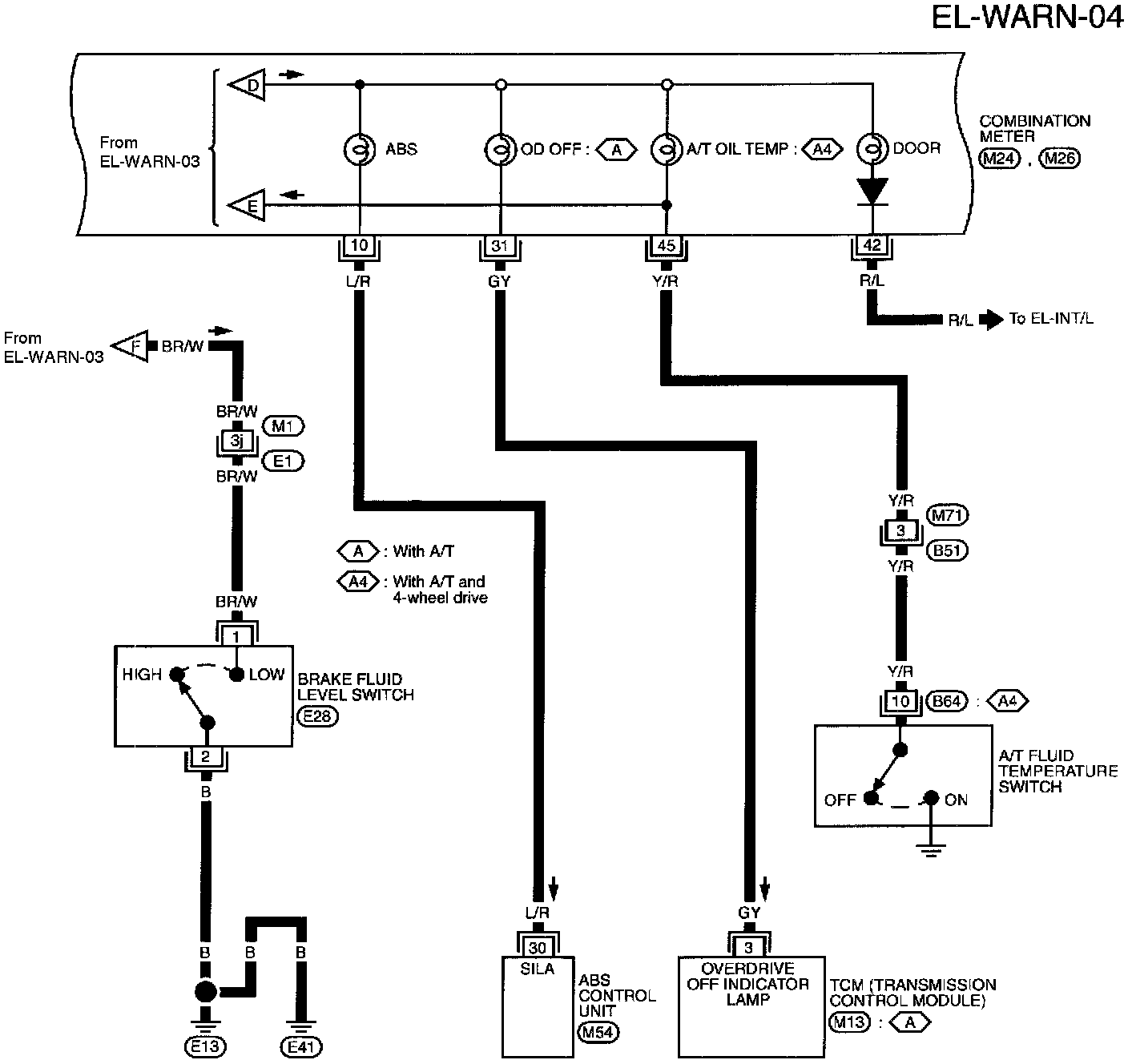

(Part 4 Of 7)
A/T Fluid Temperature Switch
ABS Control Unit
Brake Fluid Level Switch
Combination Meter
TCM (Transmission control Module)
- Overdrive Off Indicator Lamp

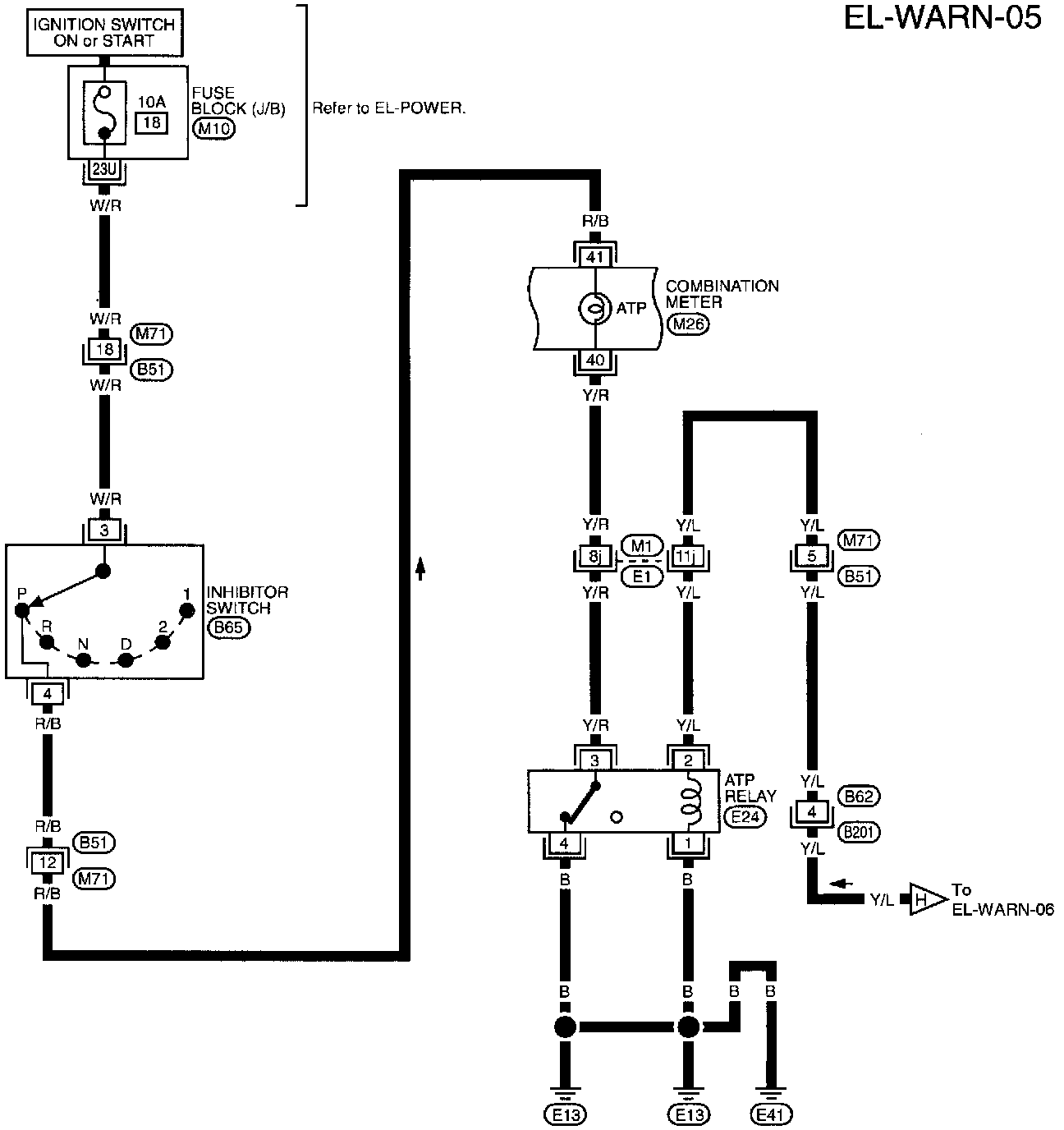

(Part 5 Of 7)
Combination Meter
Fuse Block (J/B)
Inhibitor Switch




(Part 6 Of 7)

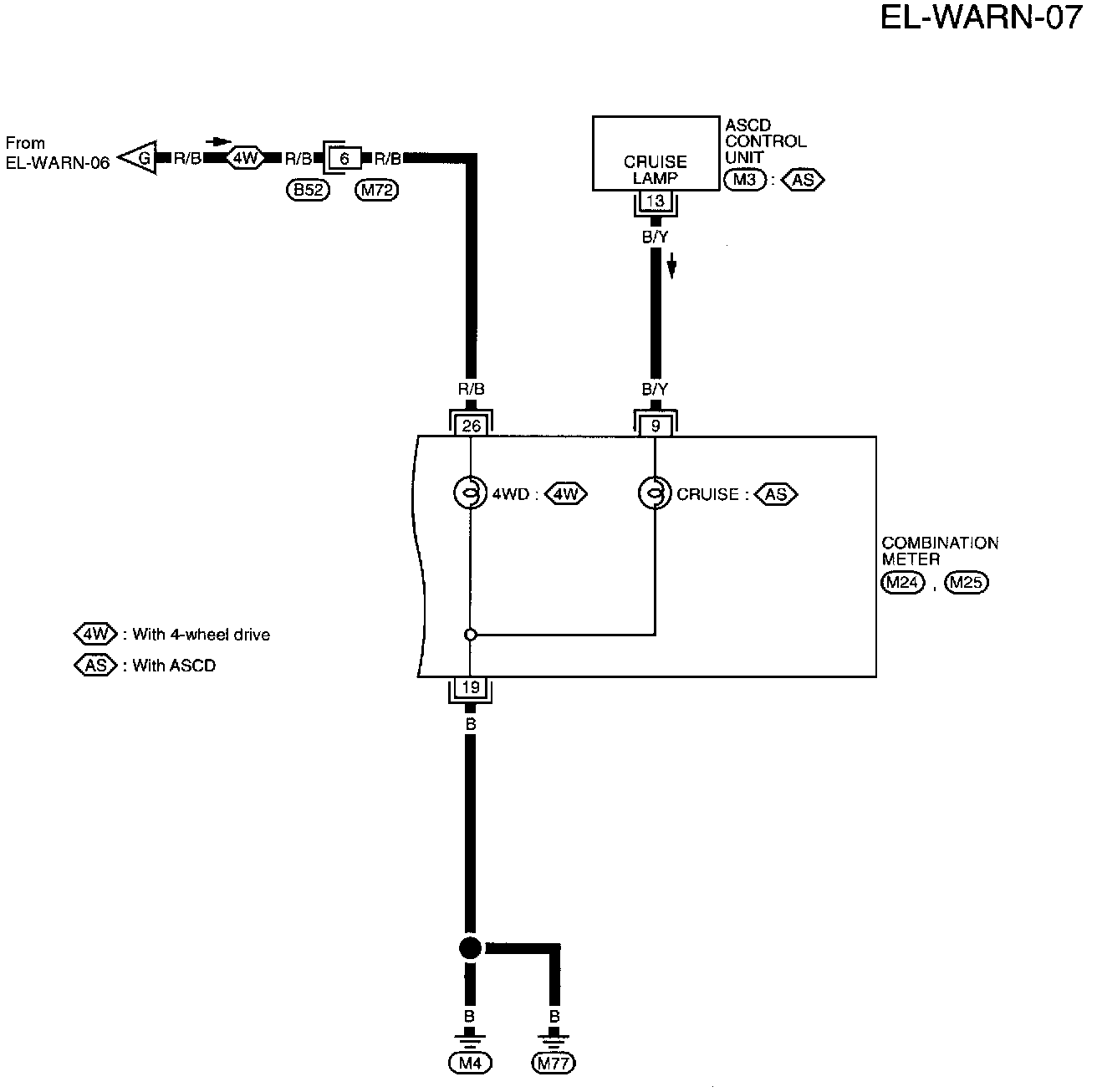

(Part 7 Of 7)
ASCD Control Unit
Combination Meter

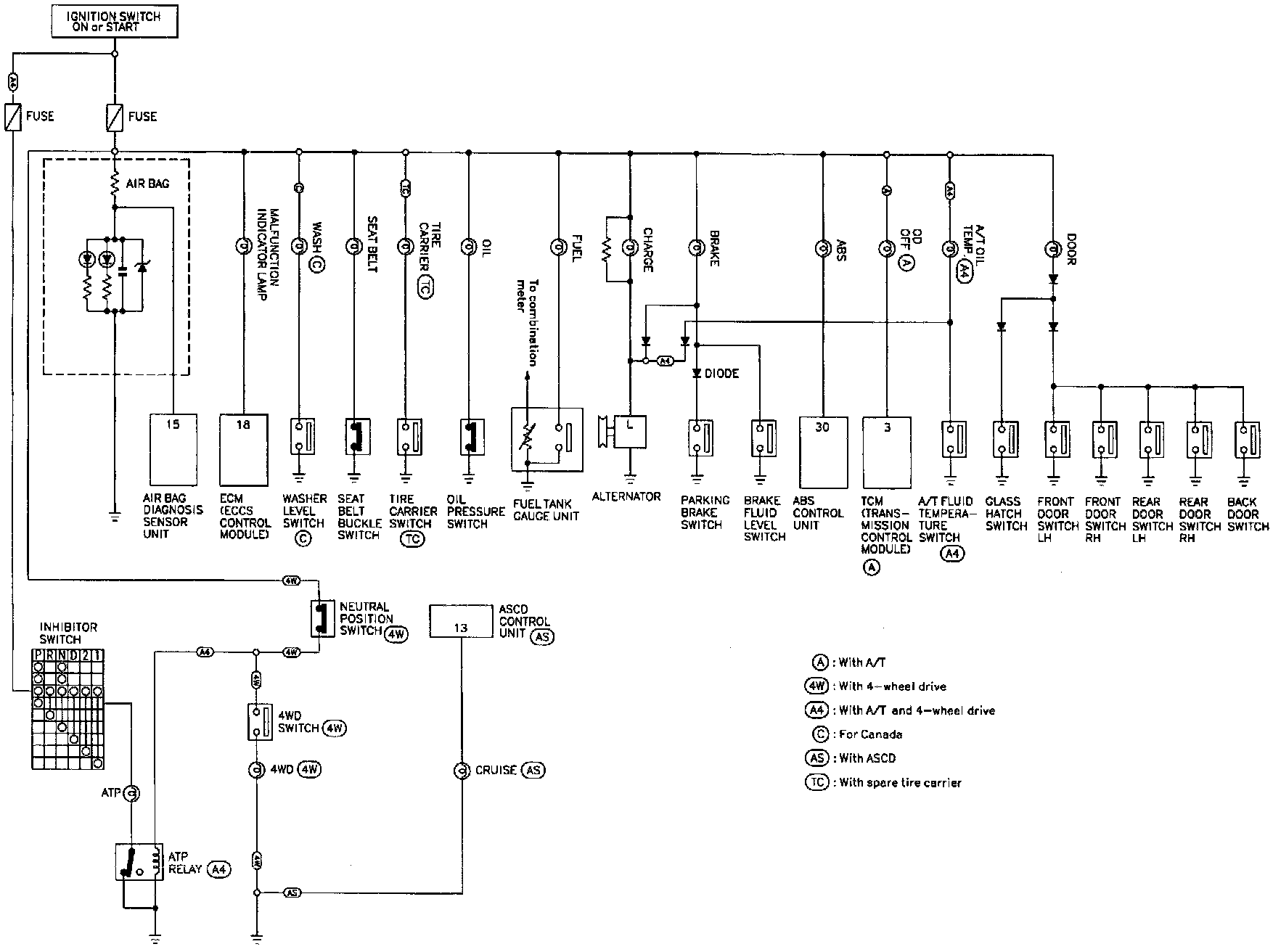

Circuit Diagram

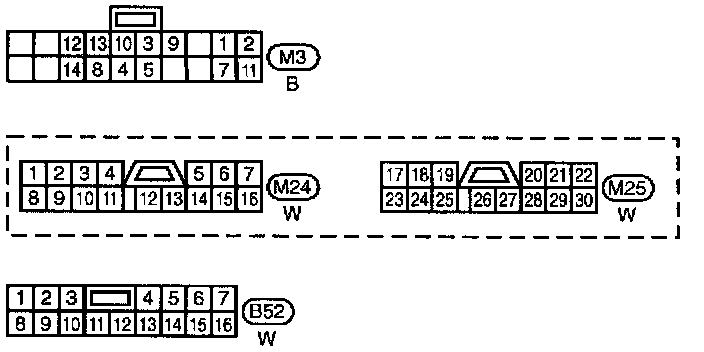

Circuit Connectors

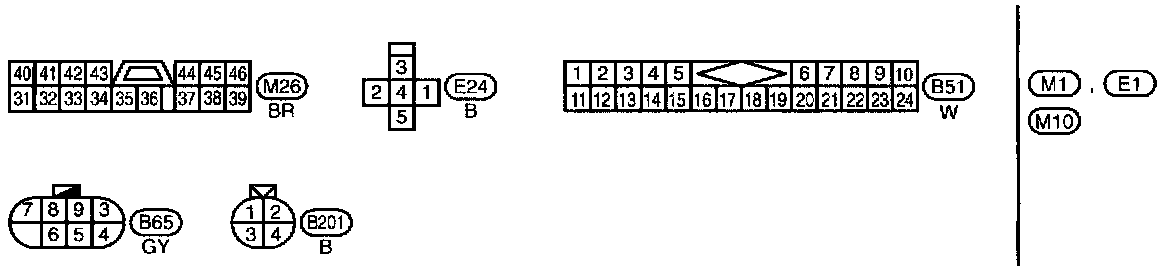

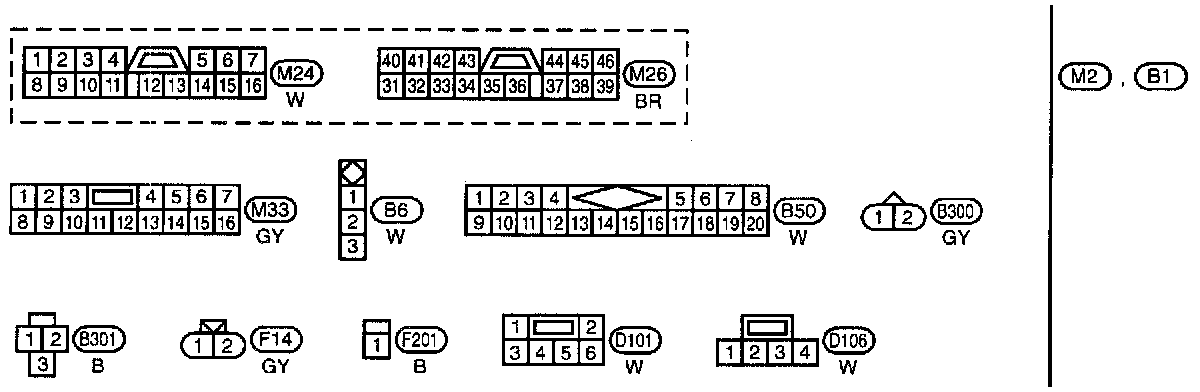

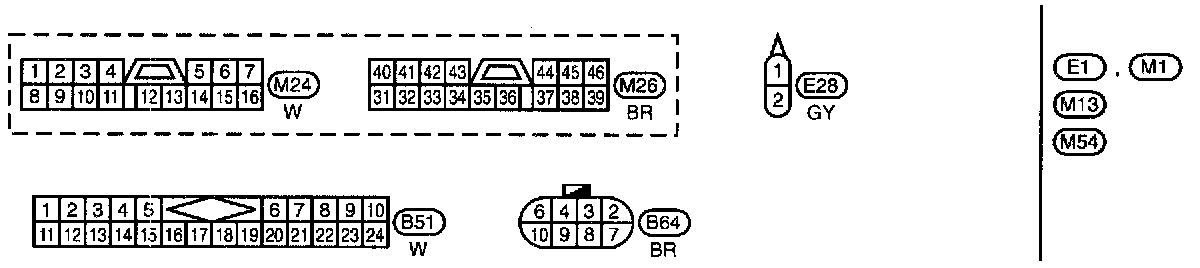

B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements

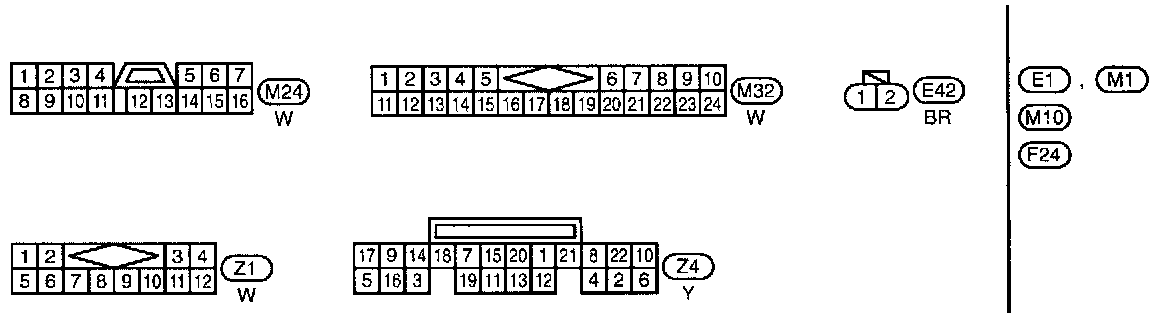

M10 Terminal Arrangement

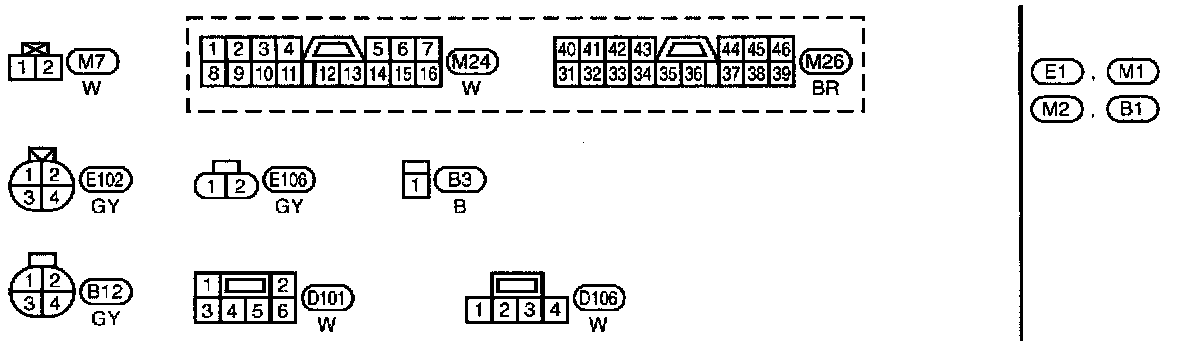

F24, M13, M54 Terminal Arrangement
