From VIN # 350001

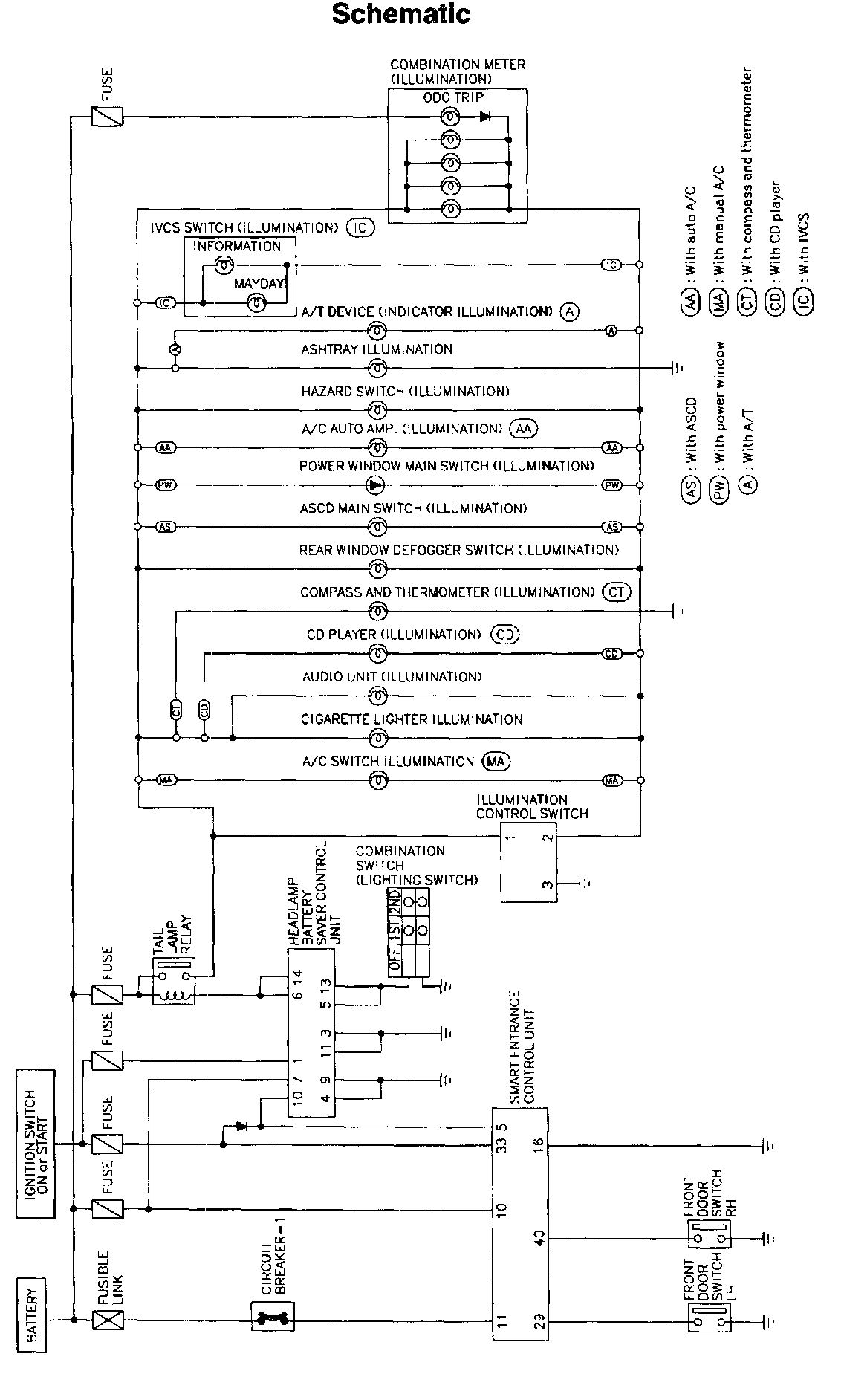

Schematic

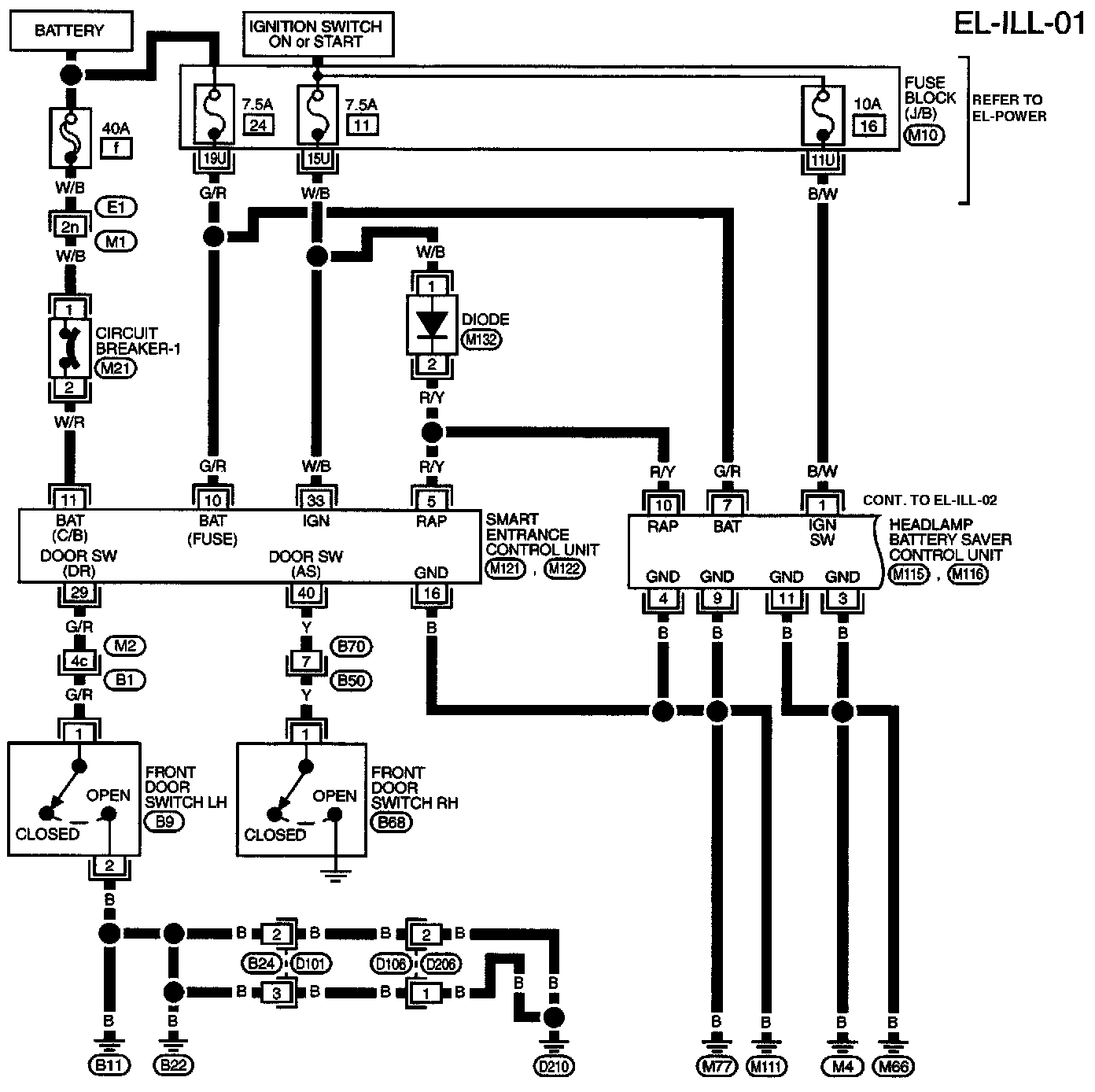

EL-ILL-01:

(Part 1 of 5)
Fuse Block (J/B)
Circuit Breaker-1
Diode
Smart Entrance Control Unit
Headlamp Battery Saver Control Unit
Front Door Switch LH
Front Door Switch RH

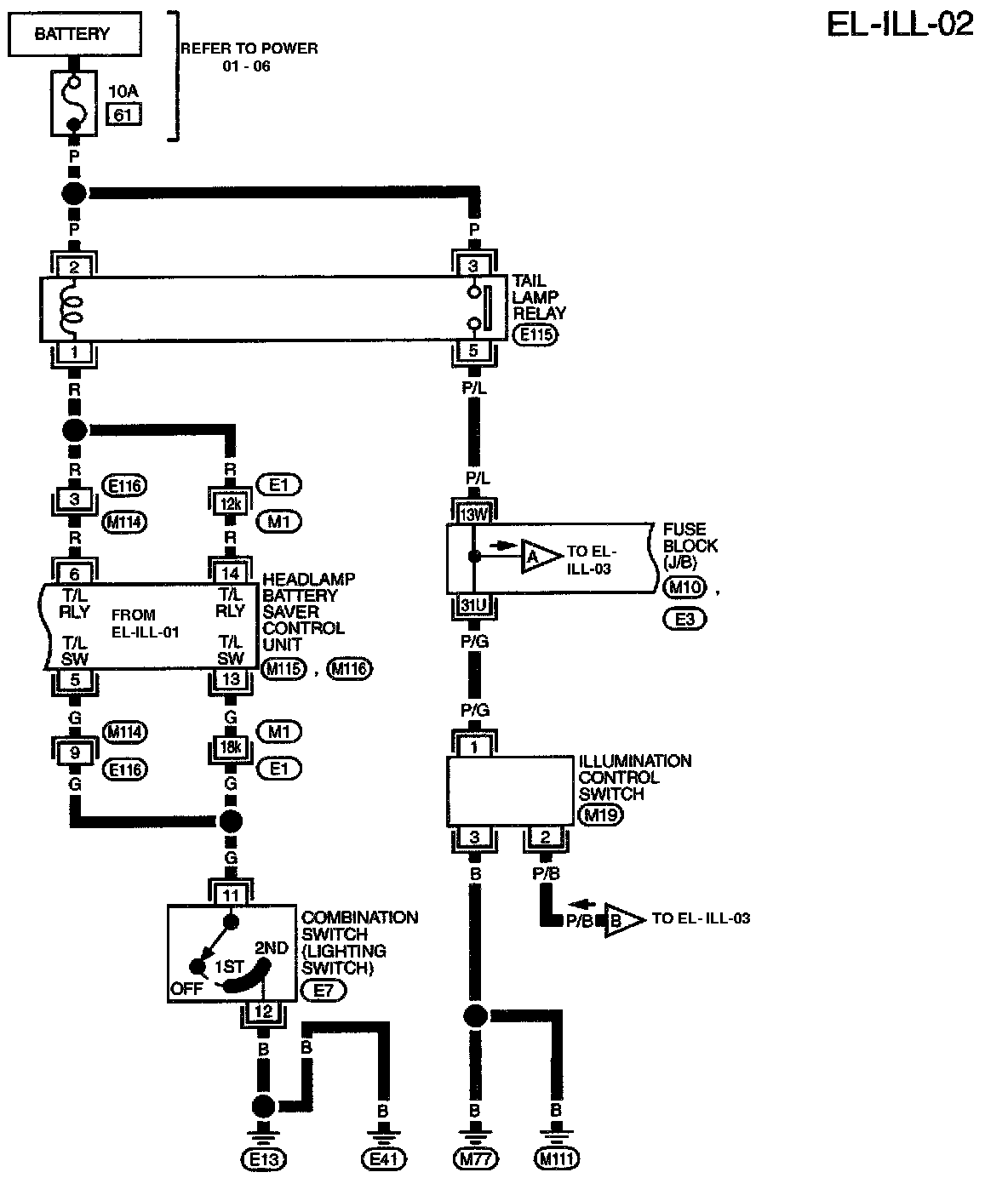

EL-ILL-02:

(Part 2 of 5)
Tail Lamp Relay
Headlamp Battery Saver Control Unit
Fuse Block (J/B)
Illumination Control Switch
Combination Switch (Lighting Switch)

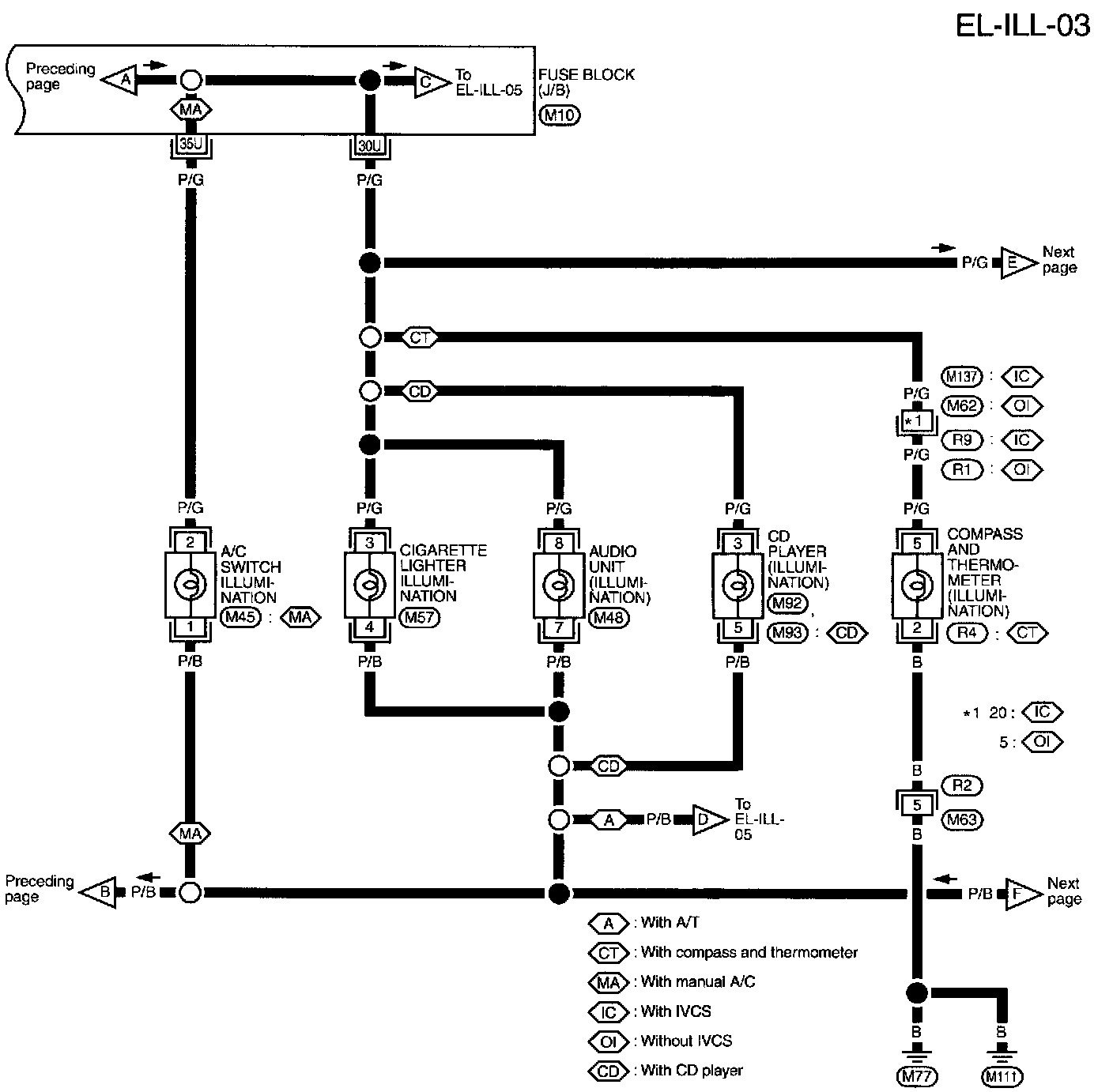

(Part 3 of 5)
Fuse Block (J/B)
A/C Switch Illumination
Cigarette Lighter Illumination
Audio Unit (Illumination)
CD Player (Illumination)
Compass And Thermometer (Illumination)

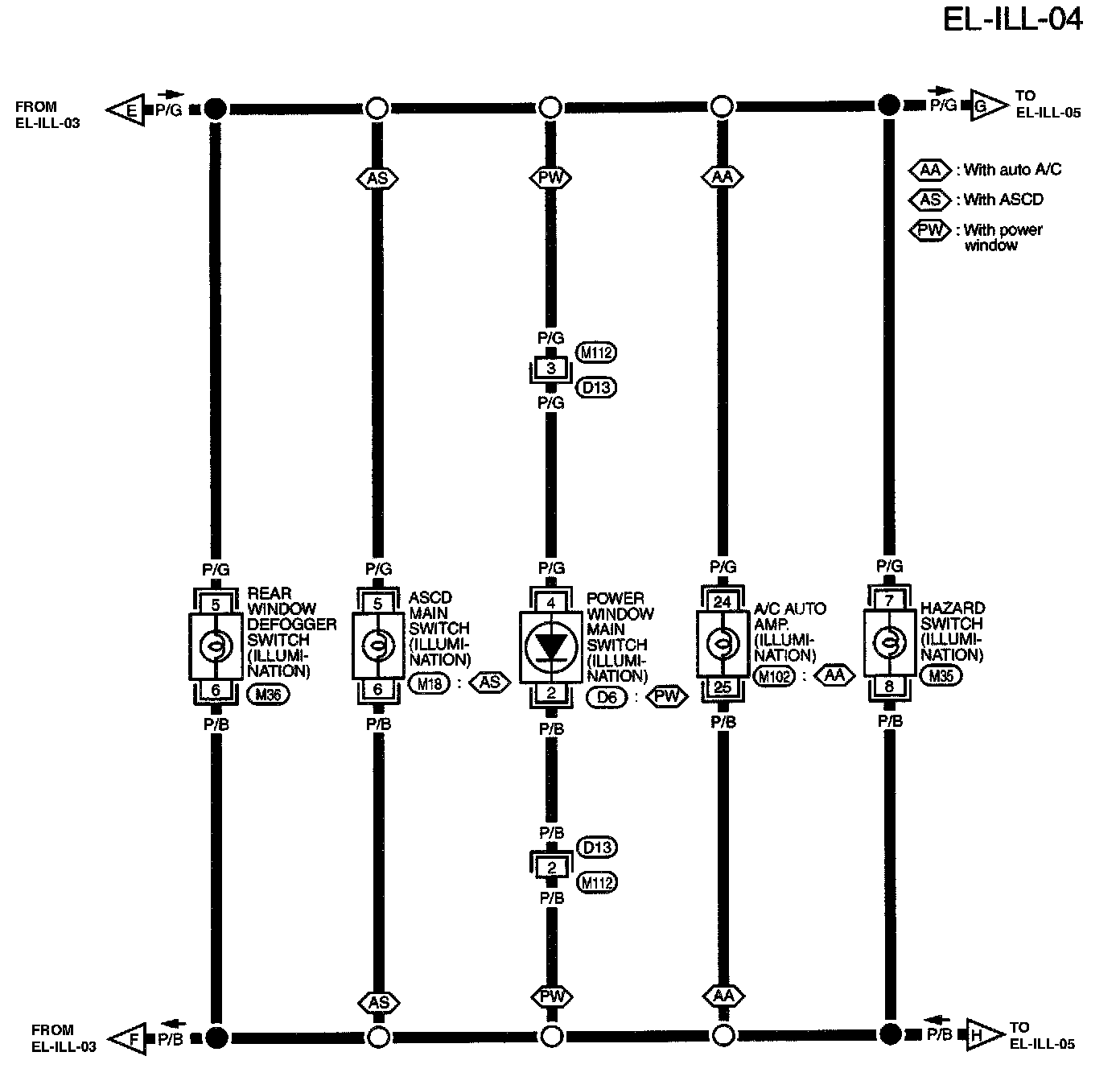

EL-ILL-04:

(Part 4 of 5)
Rear Window Defogger Switch (Illumination)
ASCD Main Switch (Illumination)
Power Window Main Switch (Illumination)
Hazard Switch (Illumination)

EL-ILL-05:

(Part 5 of 5)
Fuse Block (J/B)
Fuse Block (J/B)
Ashtray (Illumination)
A/T Device (Indicator Illumination)
Combination Meter (Illumination)

Circuit Diagrams

















Circuit Connectors

Main Harness, Engine Room, And Body Harness Connector Views:

Fuse Block J/B Connector Views:

B1, E1, E3, M1, M2, M10, M91 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
