Automatic Air Conditioning

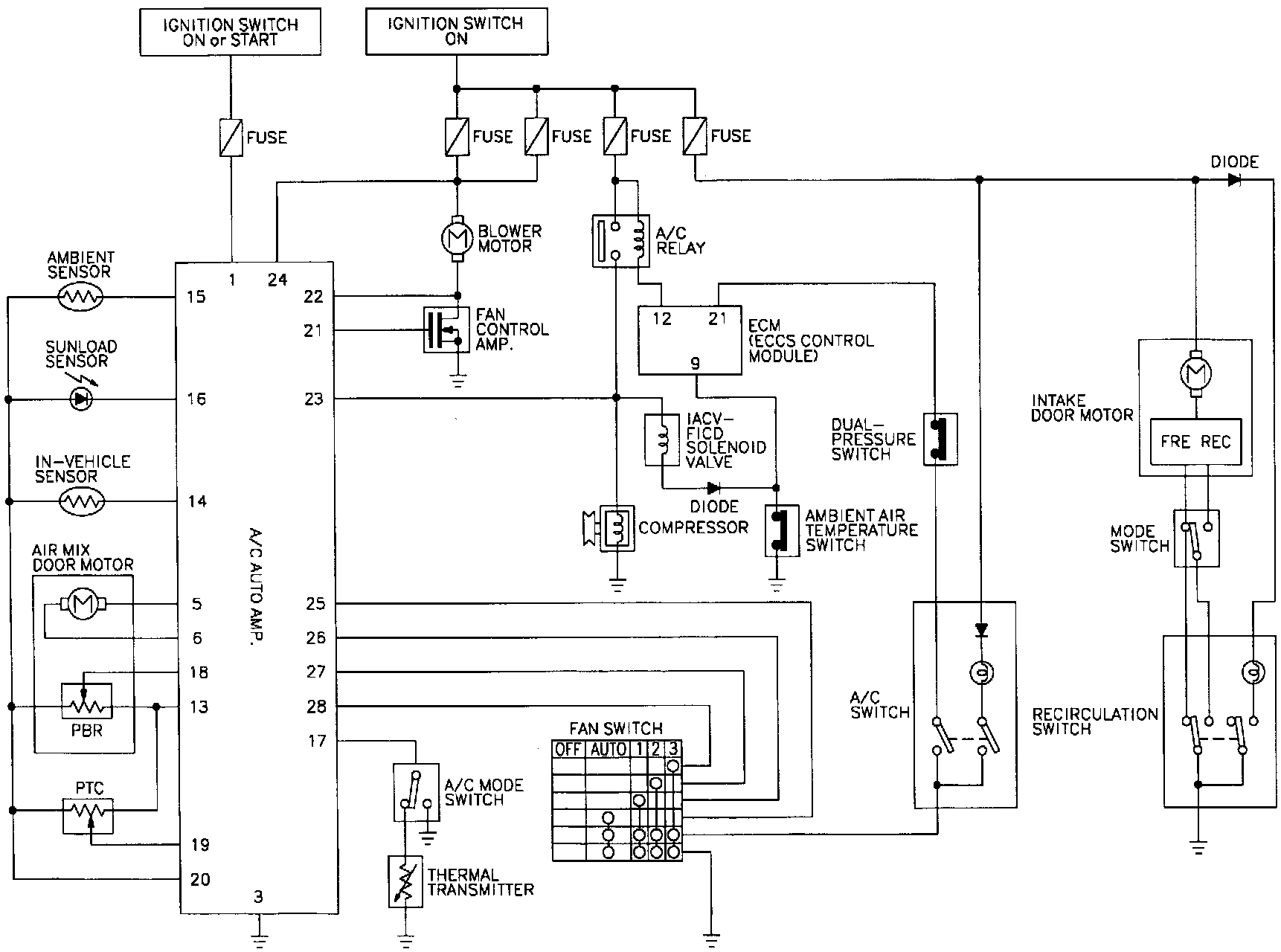

Circuit Diagram

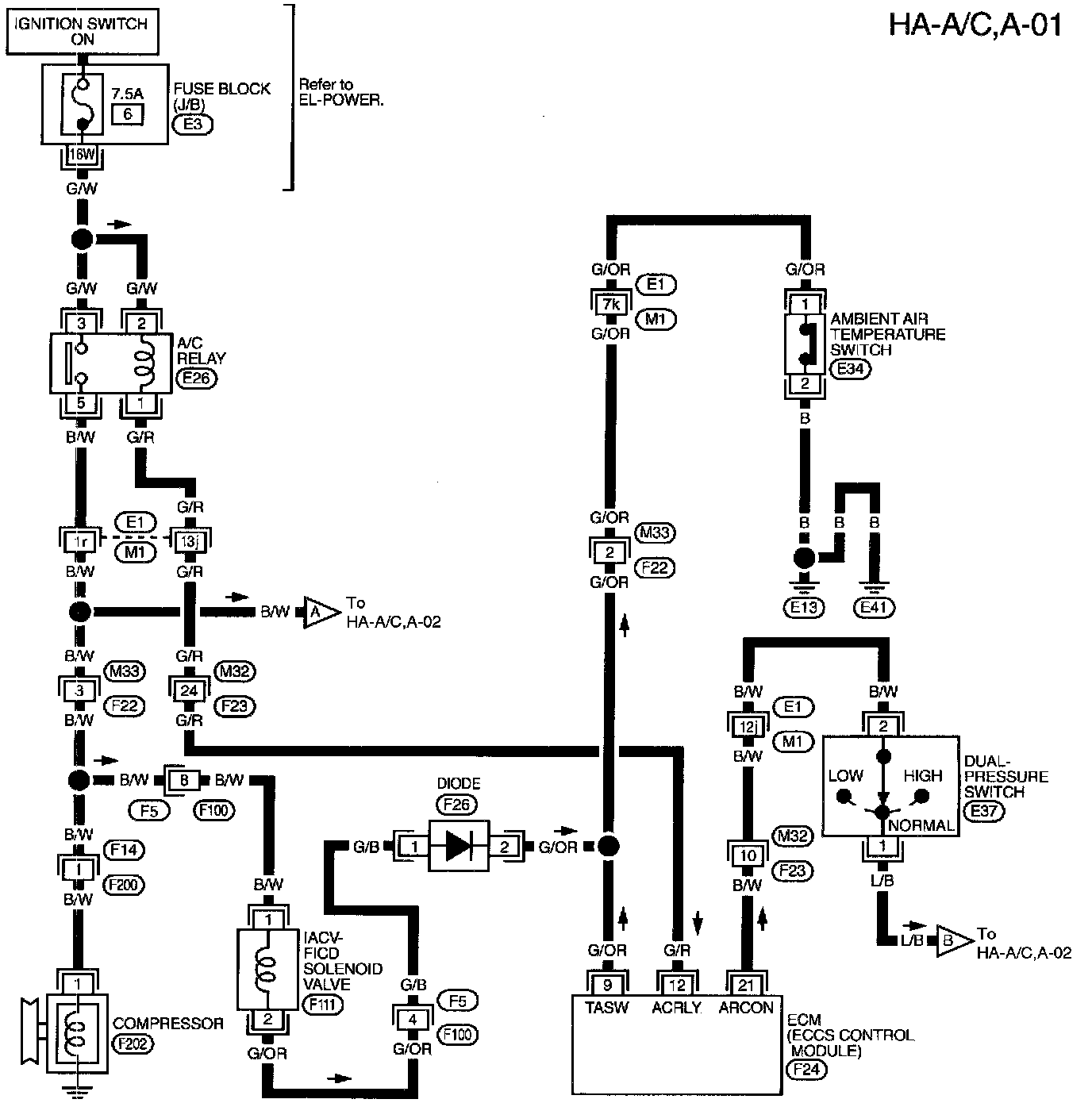

(Part 1 of 5)
Ambient Air Temperature Switch
A/C relay
Dual Pressure Switch
ECM (ECCS Control Module)
Fuse Block (J/B)
IACV-FICD Solenoid Valve

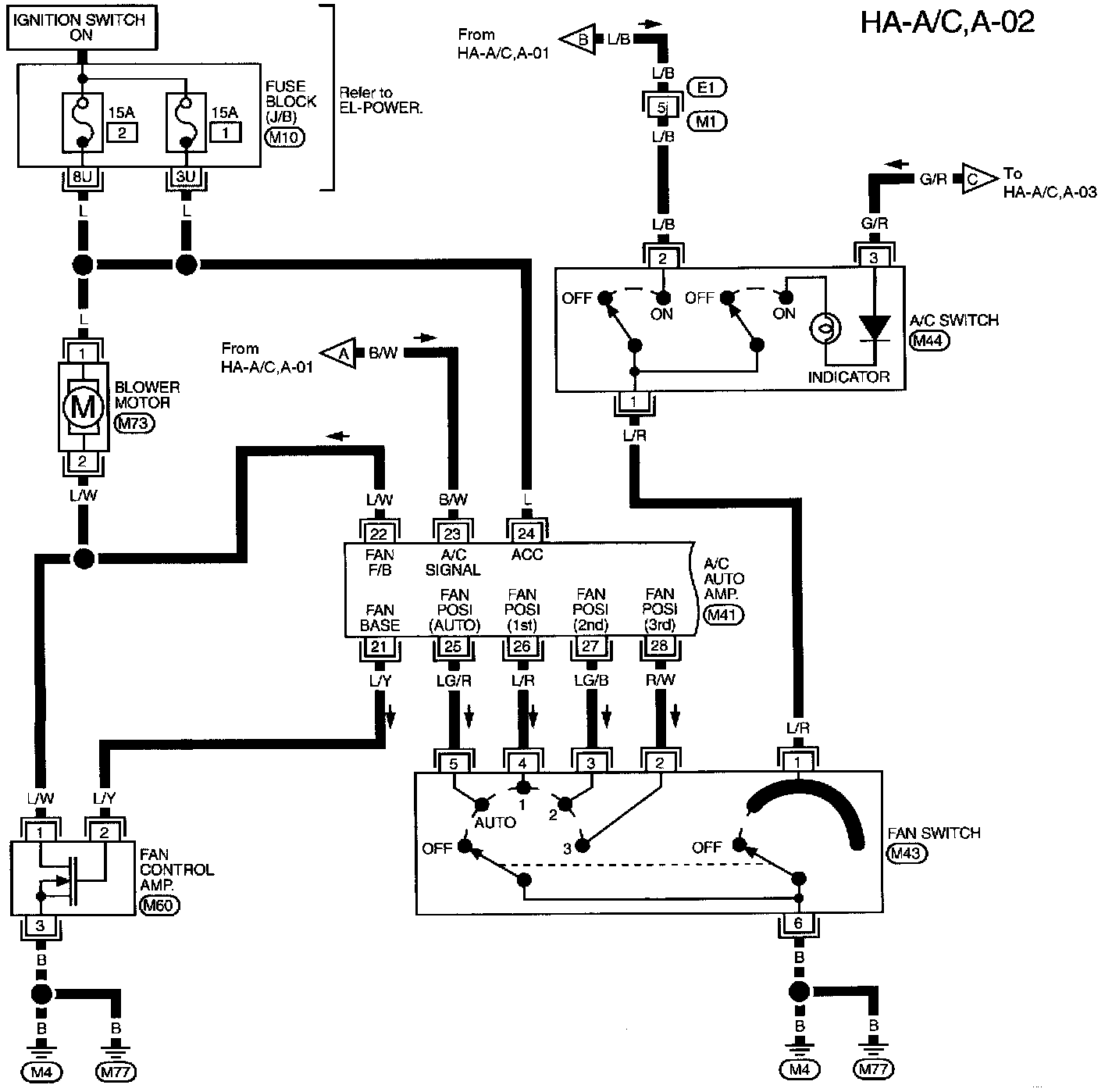

(Part 2 of 5)
A/C Switch
A/C Auto Amplifier
Blower Motor
Fan Switch
Fan Control Amplifier
Fuse Block (J/B)

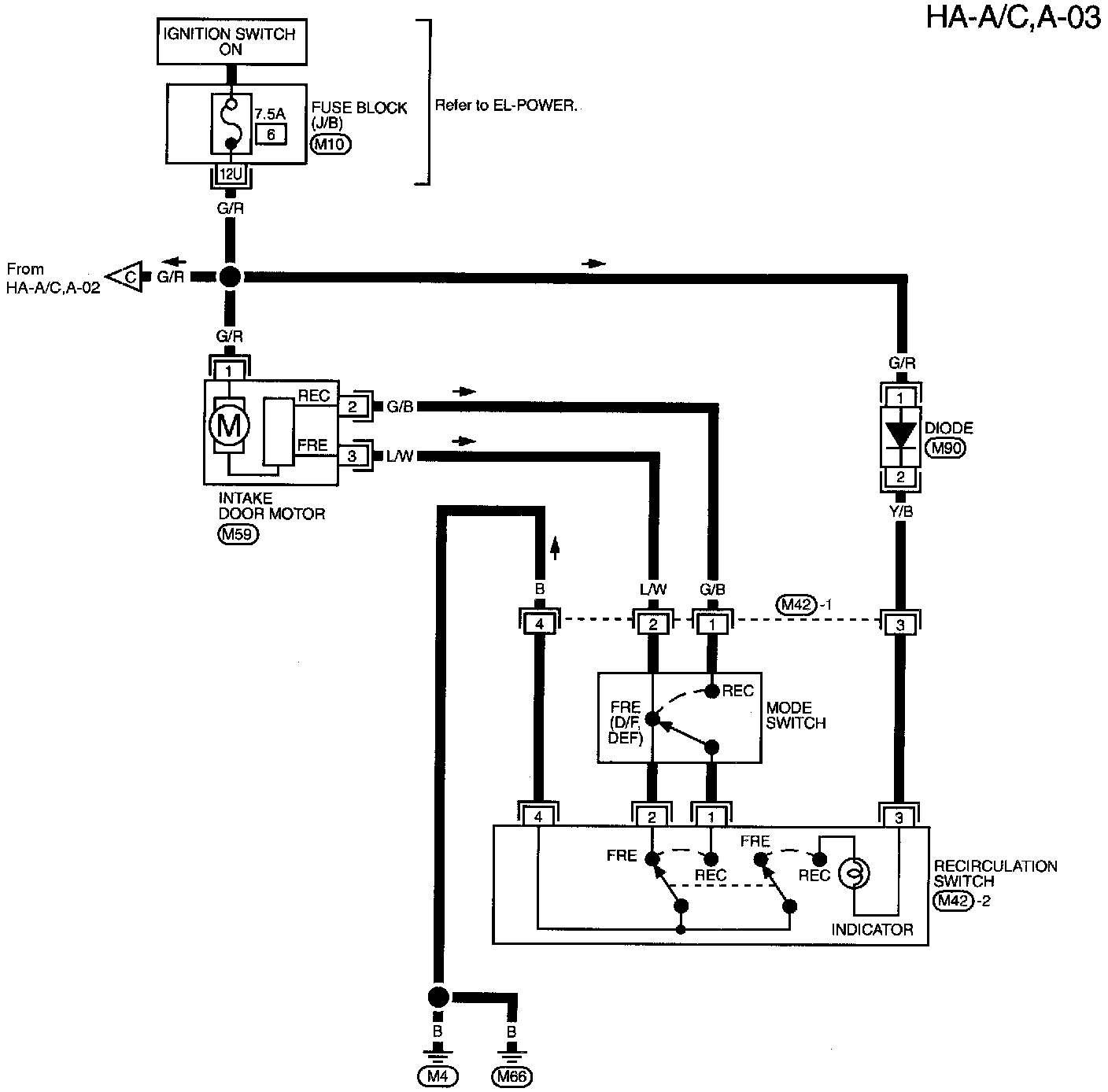

(Part 3 of 5)
Fuse Block (J/B)
Recirculation Switch
Mode Switch





(Part 4 of 5)
A/C Auto Amplifier
Ambient Sensor
In-Vehicle Sensor
Sunload Sensor
Fuse Block (J/B)

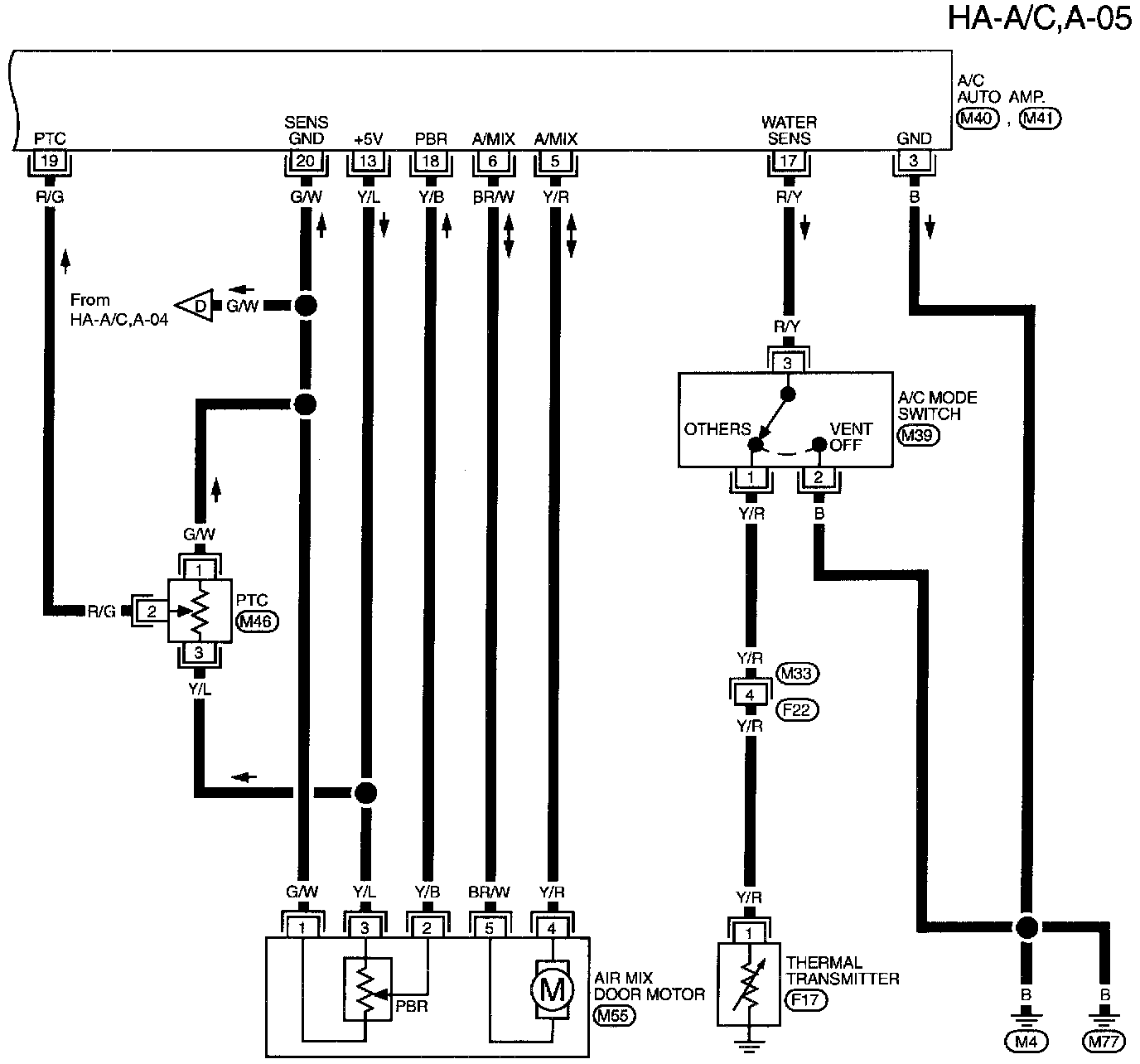

(Part 5 of 5)
A/C Auto Amplifier
A/C Mode Switch
Air Mix Door Motor
Thermal Transmitter

Circuit Diagrams

















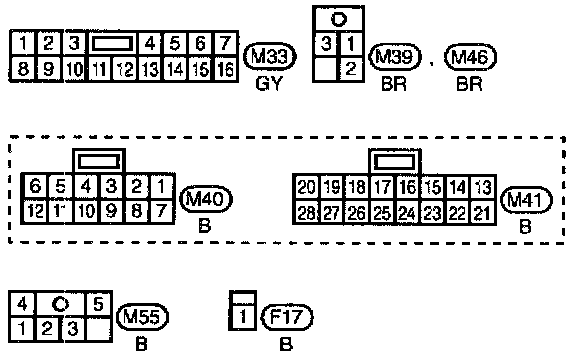

Circuit Connectors

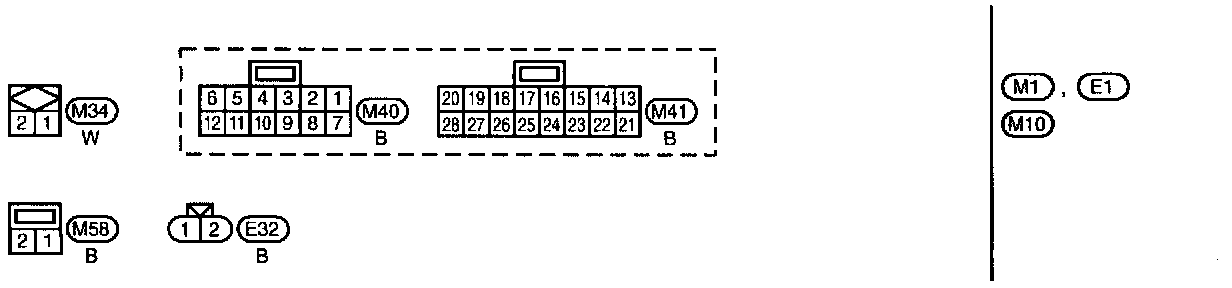

E1, M1 Body, Engine and Main Harness Terminal Arrangements

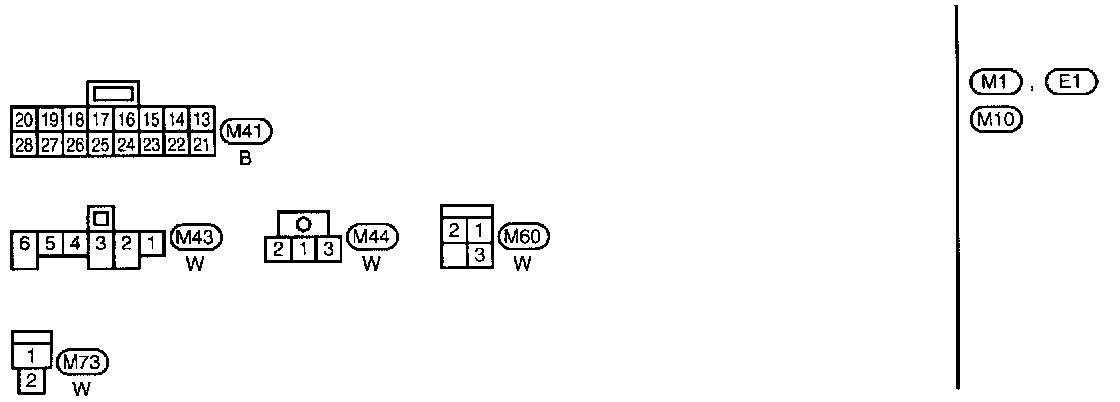

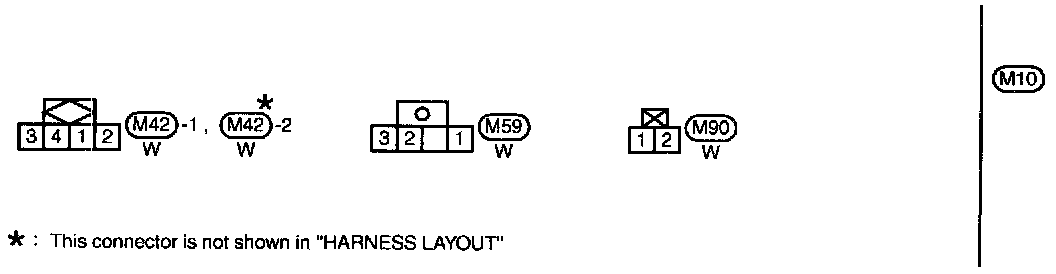

M10 Terminal Arrangement

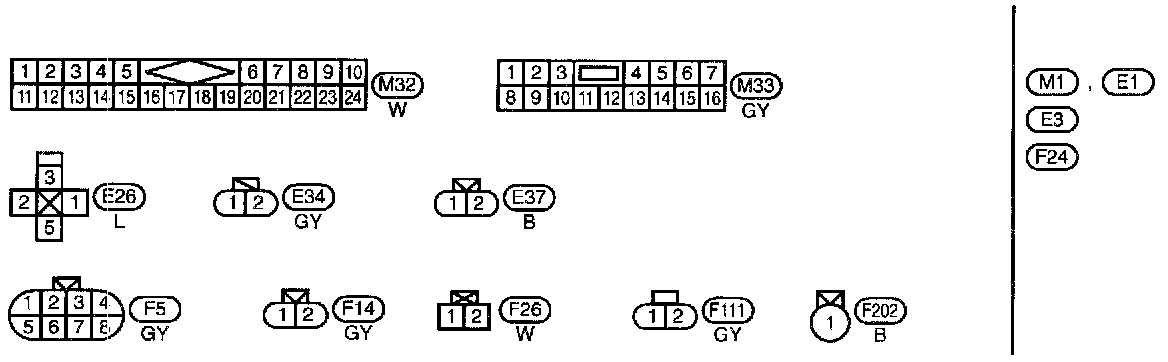

F24 Terminal Arrangement
