Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
From VIN # 350001
>>
EL-Theft-05
EL-Theft-05

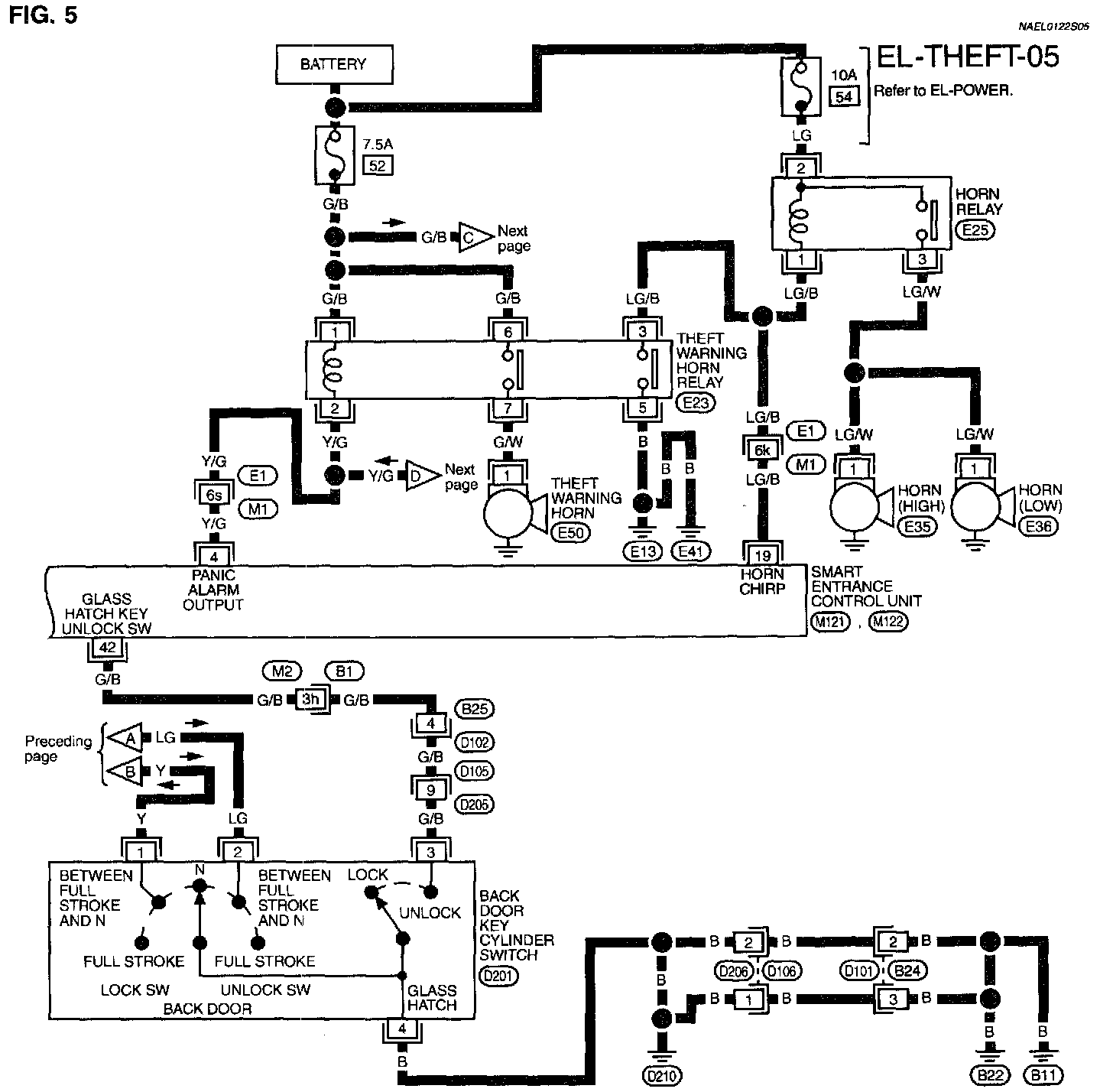

EL-THEFT-05:
EL-THEFT-05
Main Harness, Engine Room, And Body Harness Connector Views:
B1, E1, M1, M2 Super Multiple Junction Box (SMJ) Terminal Arrangement
