Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
From VIN # 350001
>>
EL-P/Ant
EL-P/Ant

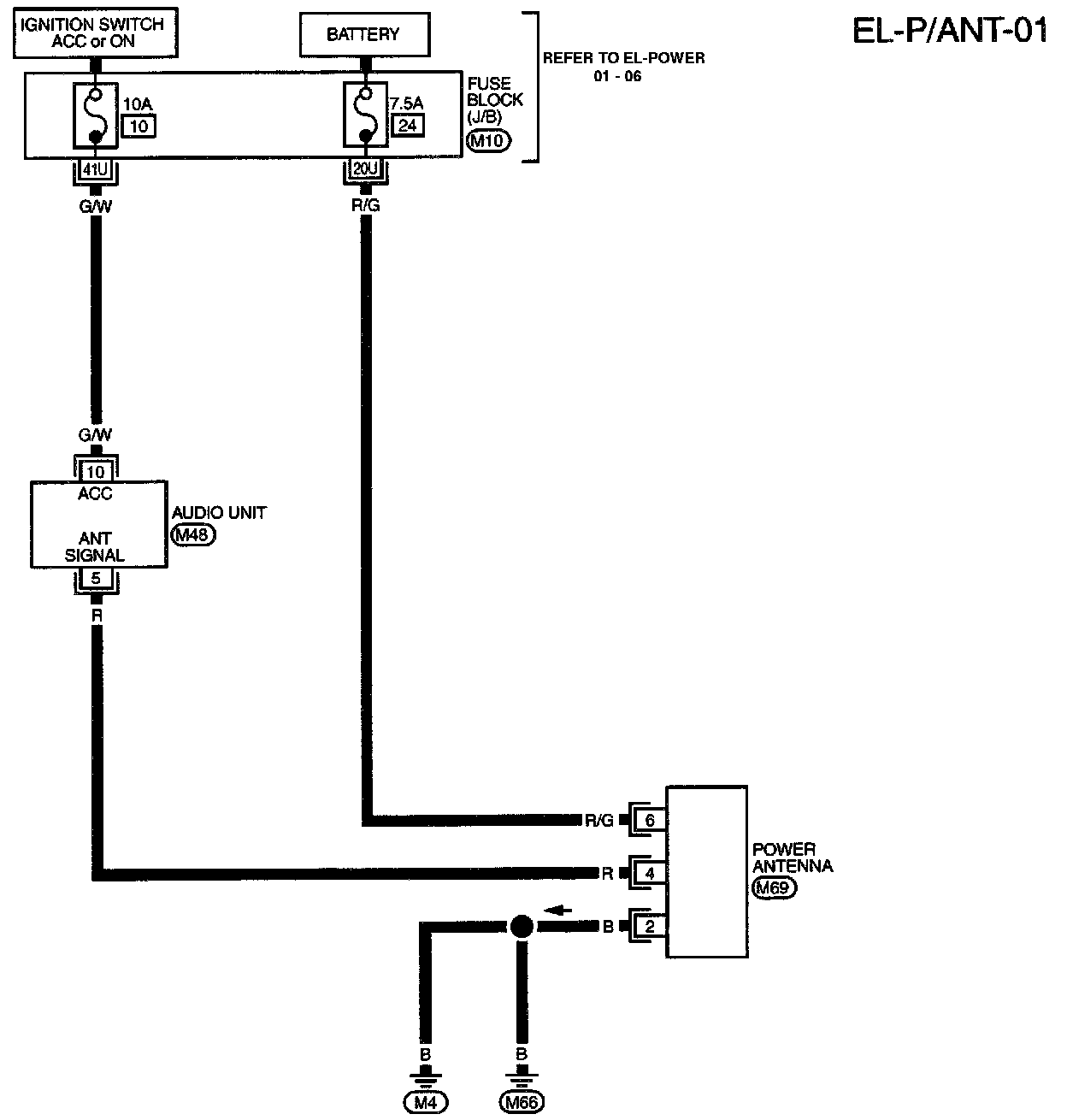

EL-P/ANT-01:
EL-P/ANT-01

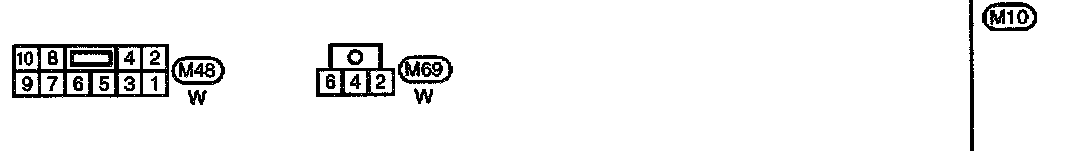

Circuit Connectors
Fuse Block J/B Connector Views:
M10
Fuse Block
- Junction Box (J/B) Terminal Arrangement
