From VIN # 350001

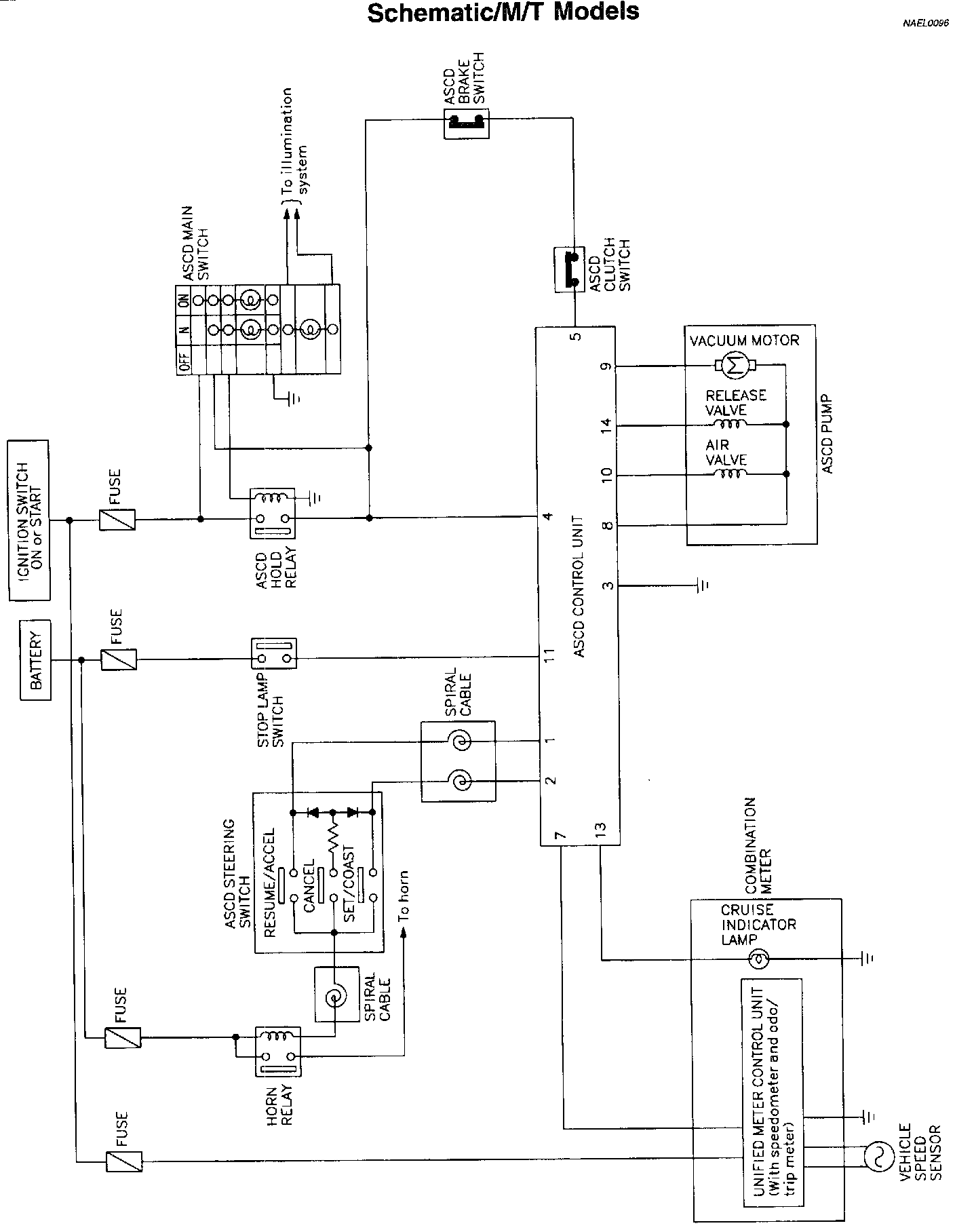

Schematic (M/T Models)

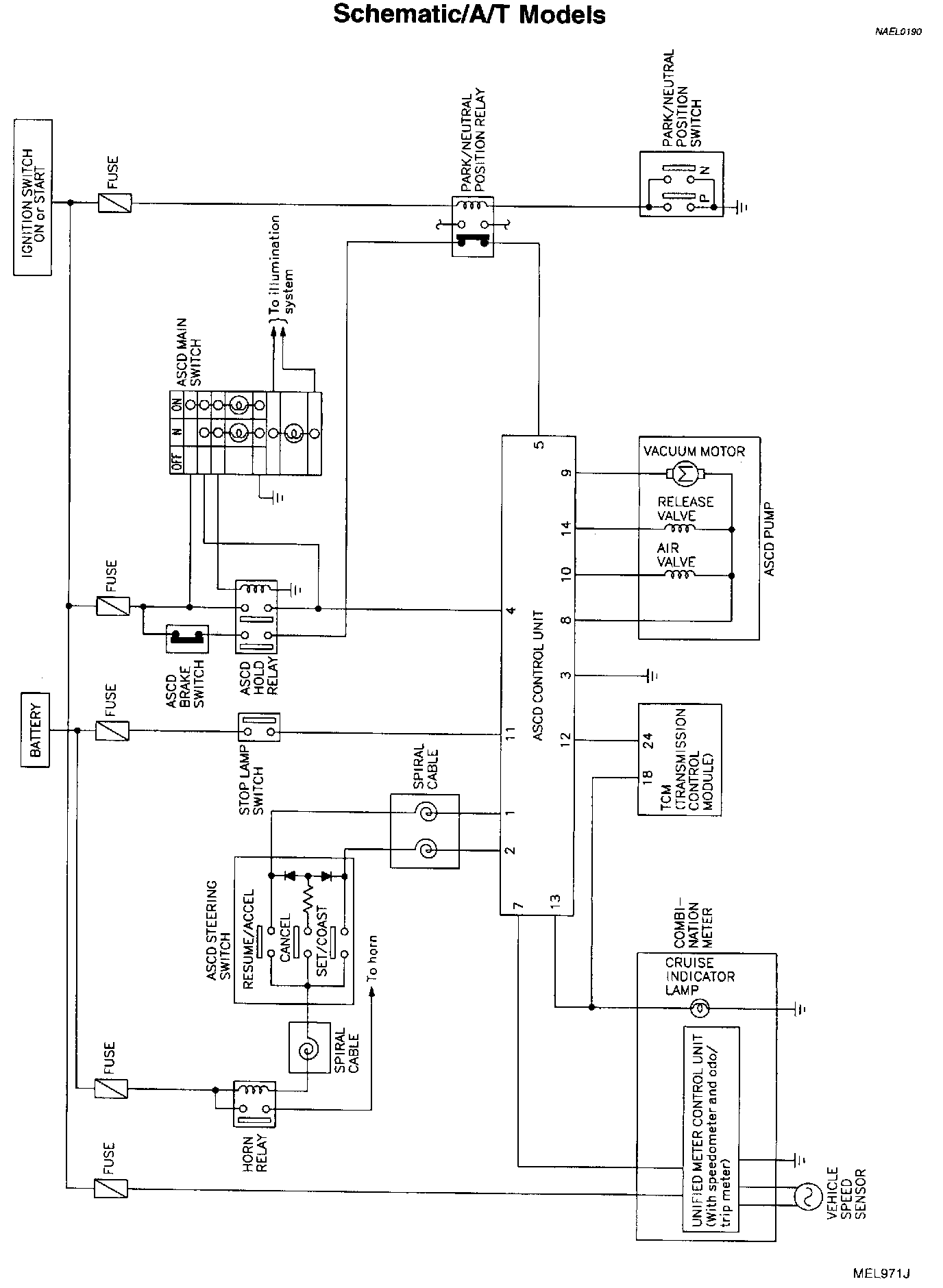

Schematic (A/T Models)
EL-ASCD-01:
(Part 1 of 5)
Fuse Block (J/B)
ASCD Main Switch
ASCD Brake Switch
ASCD Hold Relay
ASCD Hold Relay
EL-ASCD-02:
(Part 2 of 5)
Fuse Block (J/B)
Park/Neutral Position Relay
ASCD Brake Switch
Park/Neutral Position Switch
ASCD Clutch Switch
ASCD Control Unit
EL-ASCD-03:
(Part 3 of 5)
Fuse Block (J/B)
ASCD Steering Switch
Stop Lamp Switch
Spiral Cable
Horn Relay
ASCD Control Unit
EL-ASCD-04:
(Part 4 of 5)
ASCD Control Unit
ASCD Pump
EL-ASCD-05:
(Part 5 of 5)
Fuse Block (J/B)
Vehicle Speed Sensor
Combination Meter
ASCD Control Unit
TCM (Transmission Control Module)
Circuit Connectors
Circuit Connectors

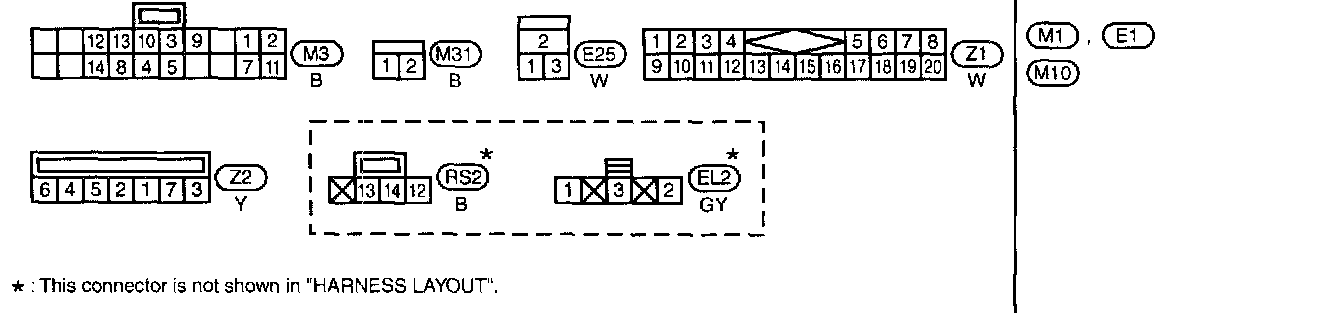

Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
Control Module Connector Views:
E1, E3, M1, M10, M119 Super Multiple Junction Box (SMJ), Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
