From VIN # 350001

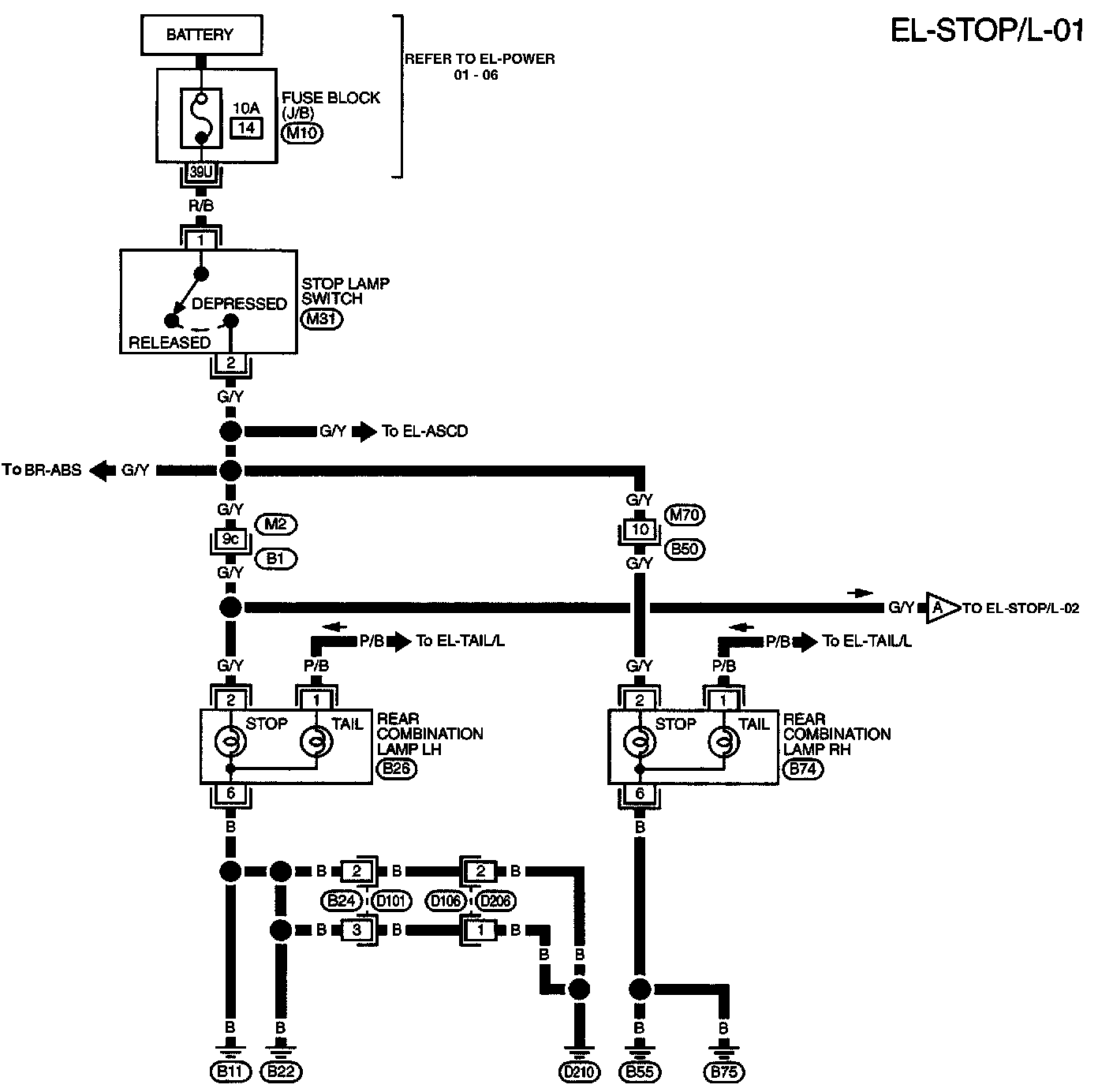

EL-Stop/L-01:
EL-Stop/L-02:
Circuit Diagrams

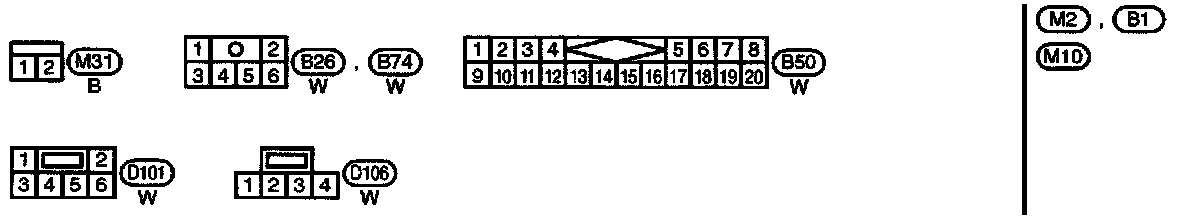

Circuit Connectors
Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
B1, M2, M10, Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
