To VIN # 350000

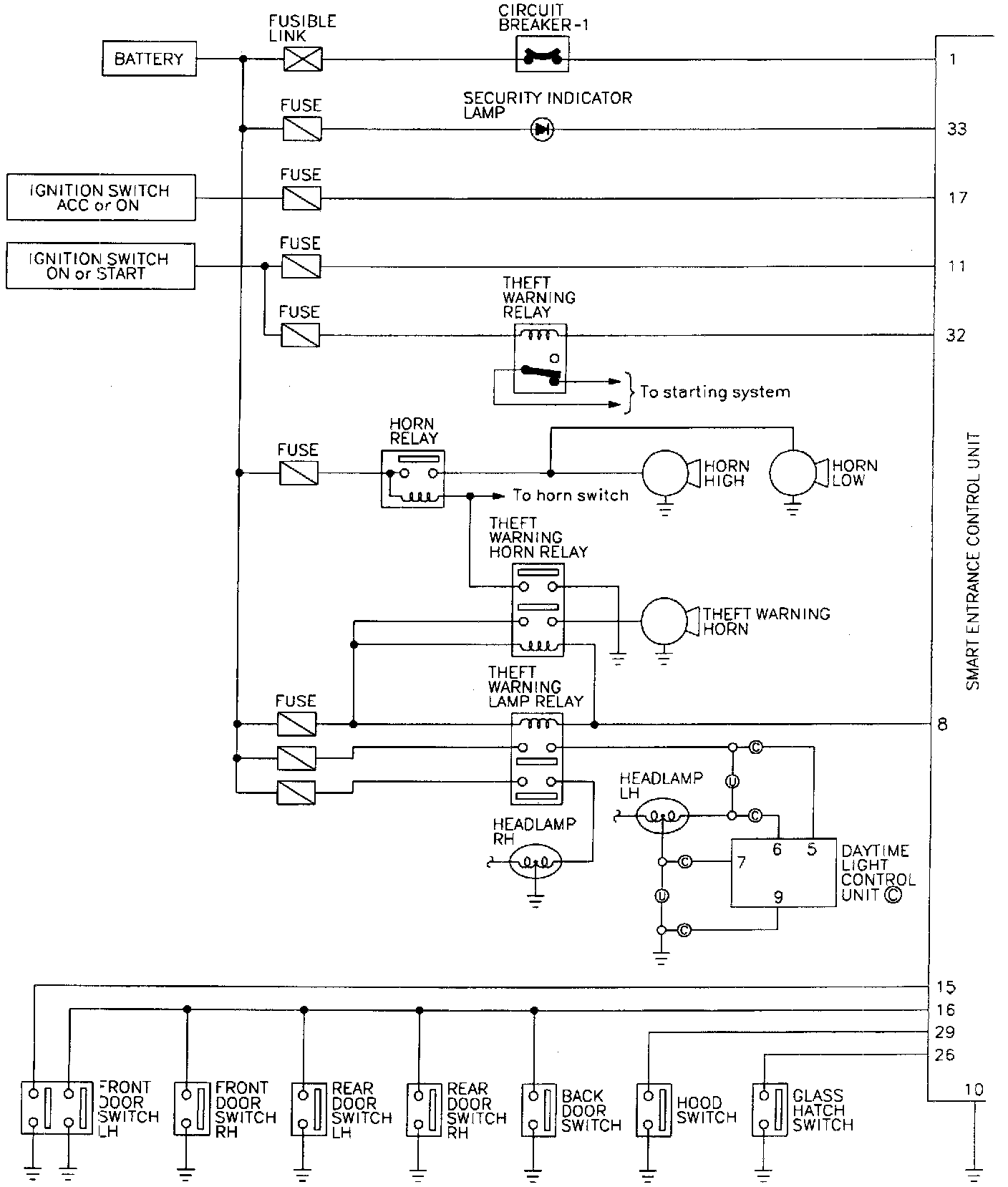

Schematic

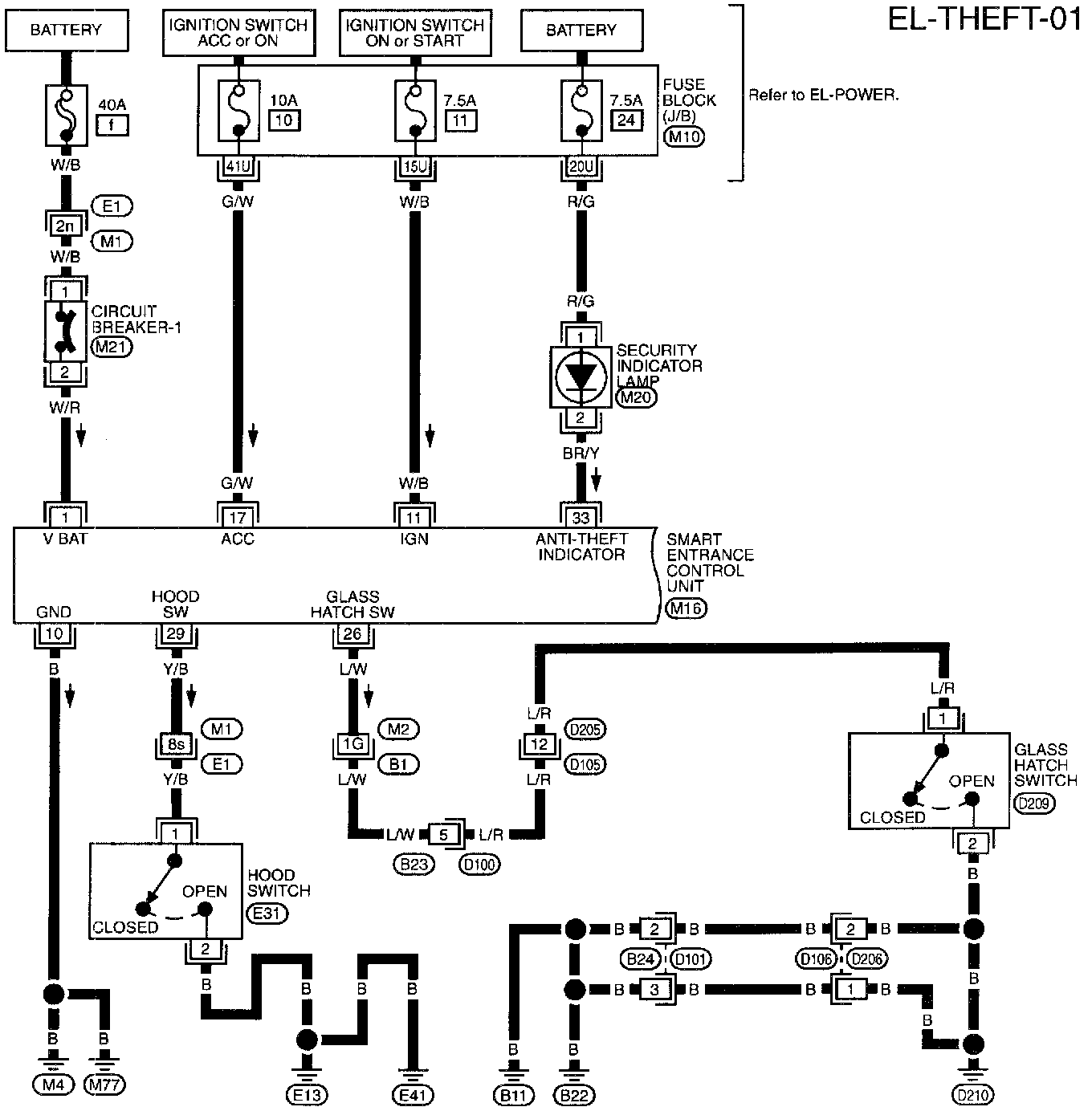

(Part 1 of 6)
Circuit Breaker-1
Fuse Block (J/B)
Glass Hatch Switch
Security Indicator Lamp
Smart Entrance Control Unit
- Anti-Theft Indicator

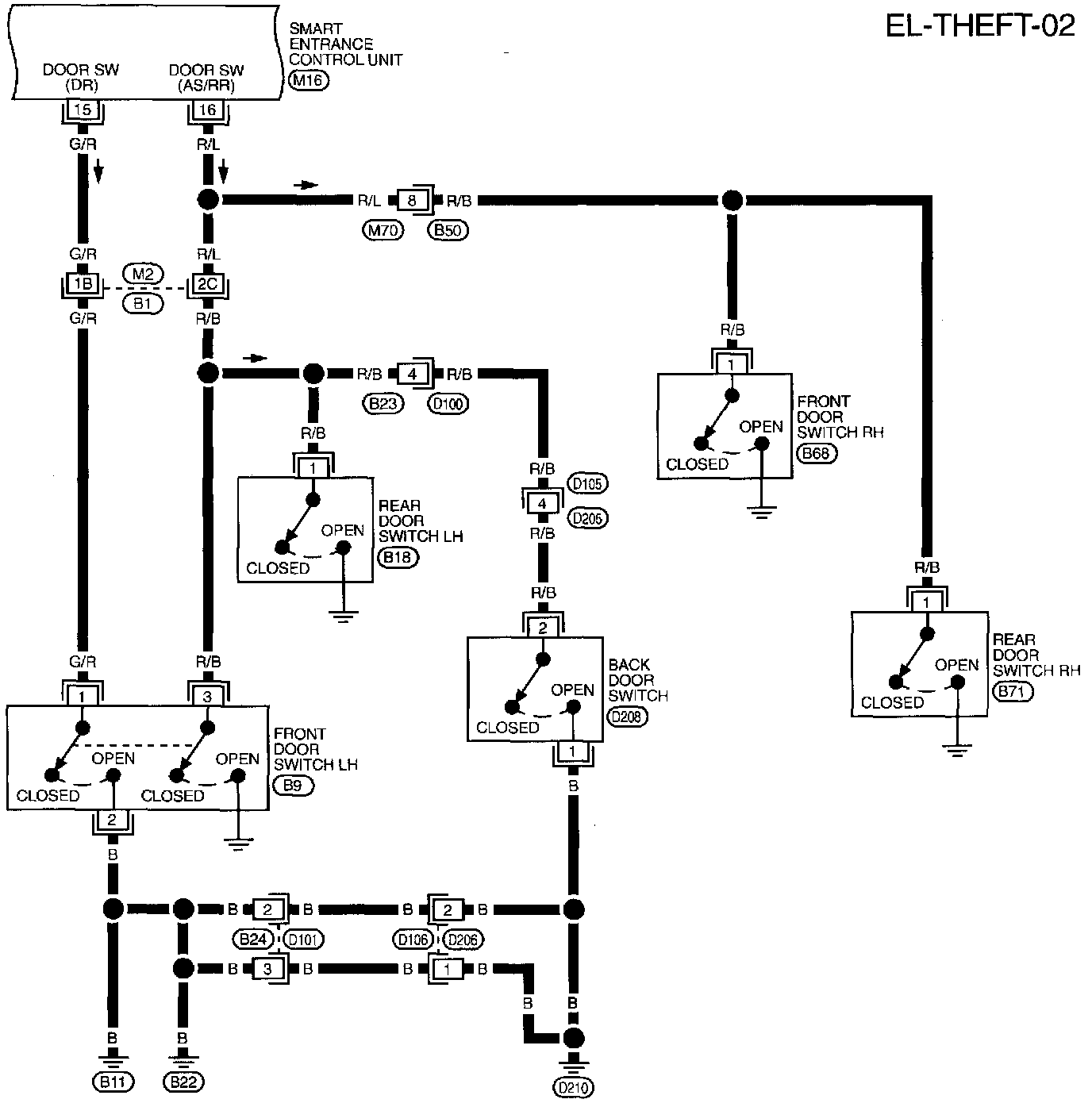

(Part 2 of 6)
Back Door Switch
Front Door Switch LH/RH
Rear Door Switch LH/RH
Smart Entrance Control Unit

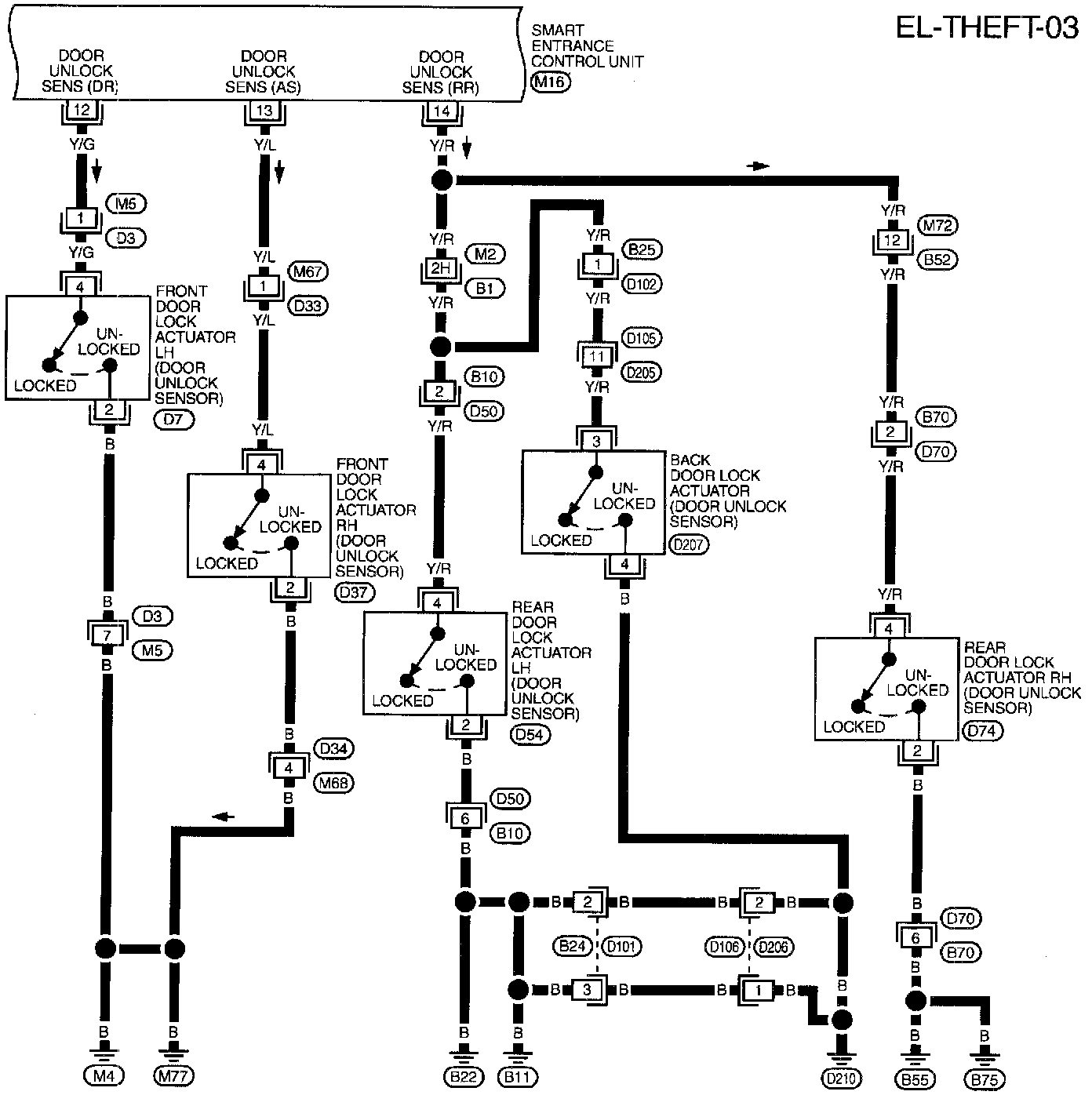

(Part 3 of 6)
Back Door Lock Actuator (Door Unlock Sensor)
Front Door Lock Actuator LH/RH (Door Unlock Sensor)
Rear Door Lock Actuator LH/RH (Door Unlock Sensor)
Smart Entrance Control Unit

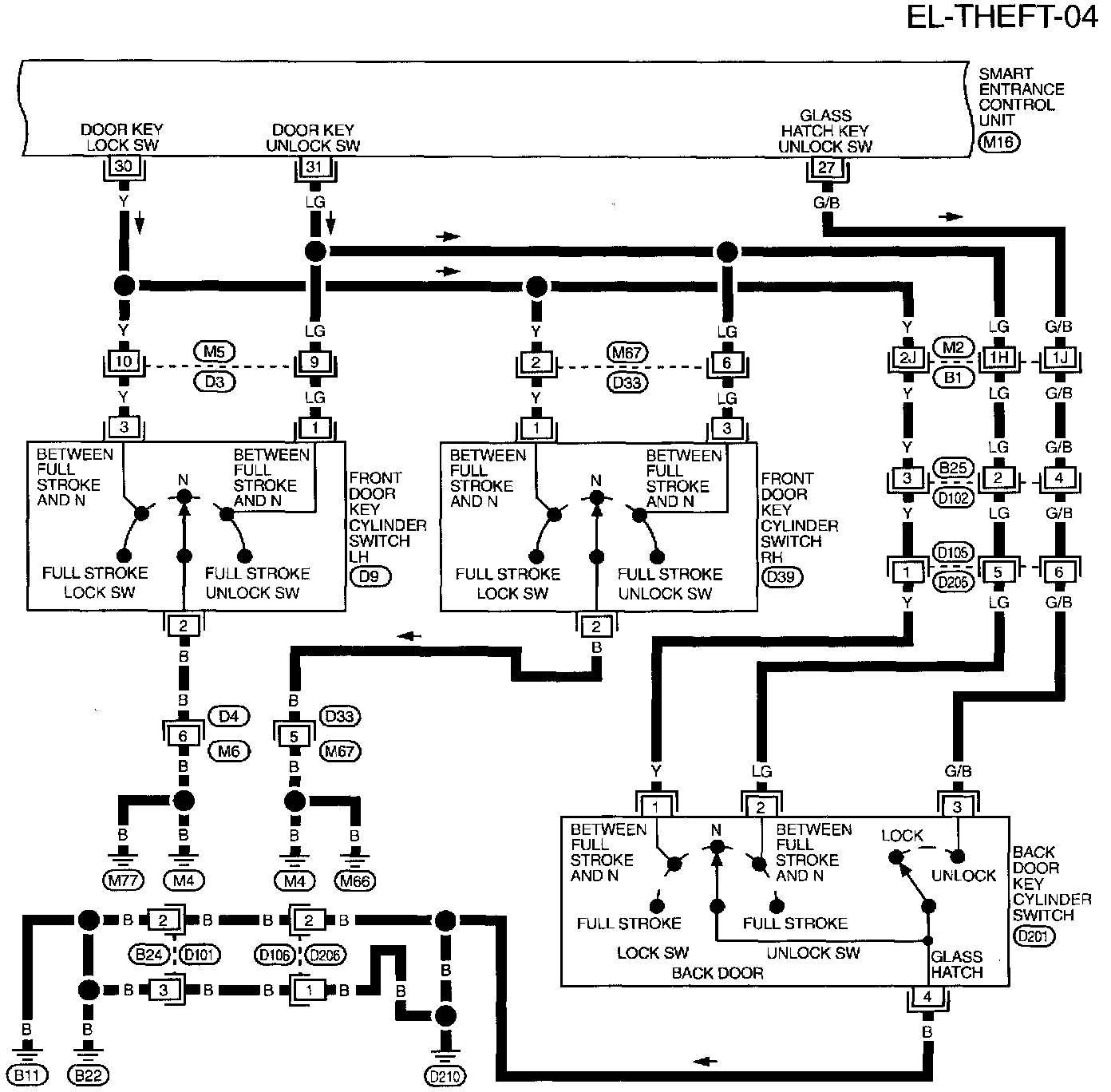

(Part 4 of 6)
Back Door Key Cylinder Switch
Front Door Key Cylinder Switch LH/RH
Smart Entrance Control Unit

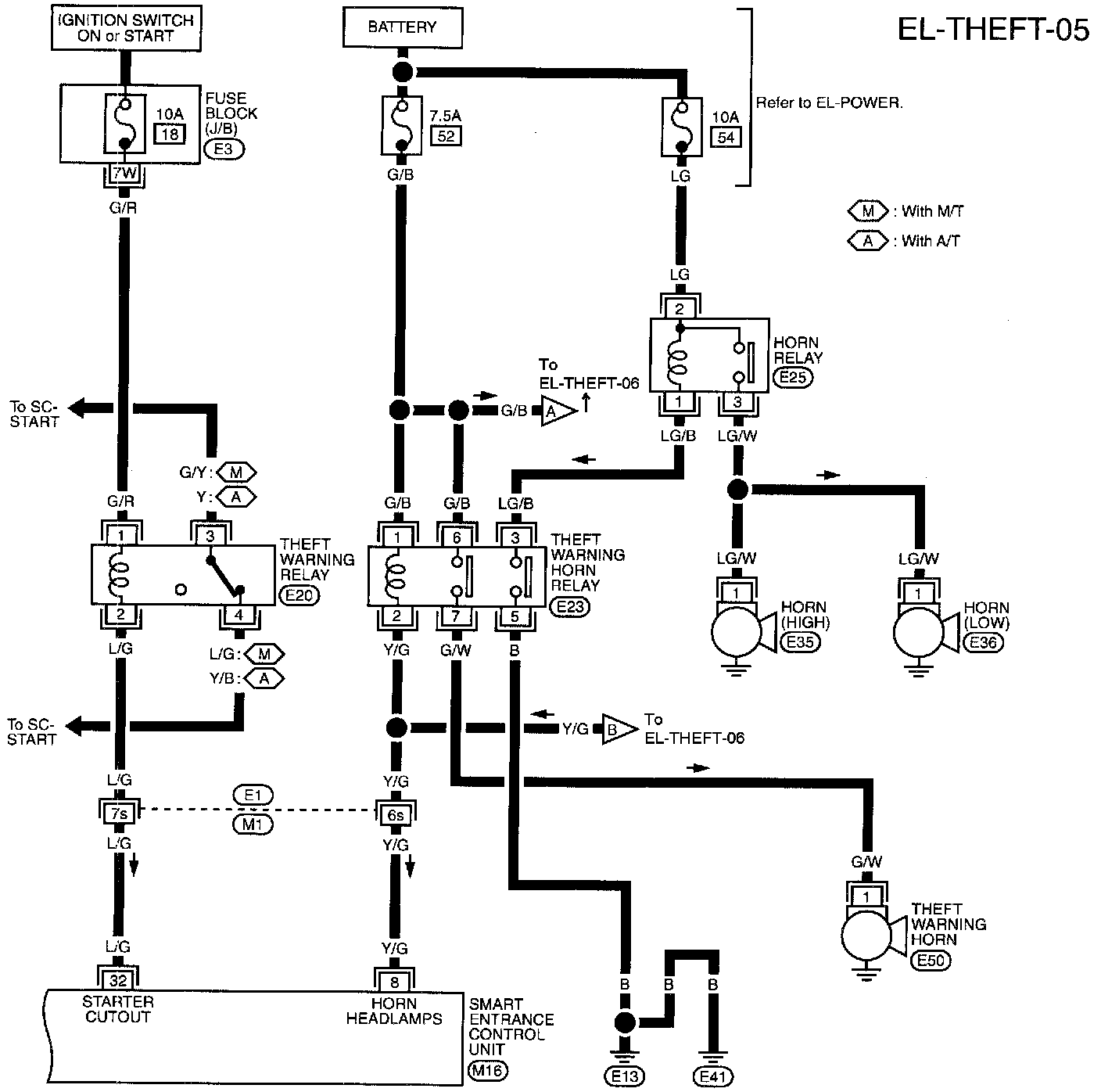

(Part 5 of 6)
Fuse Block (J/B)
Theft Warning Horn
Theft Warning Horn Relay
Smart Entrance Control Unit

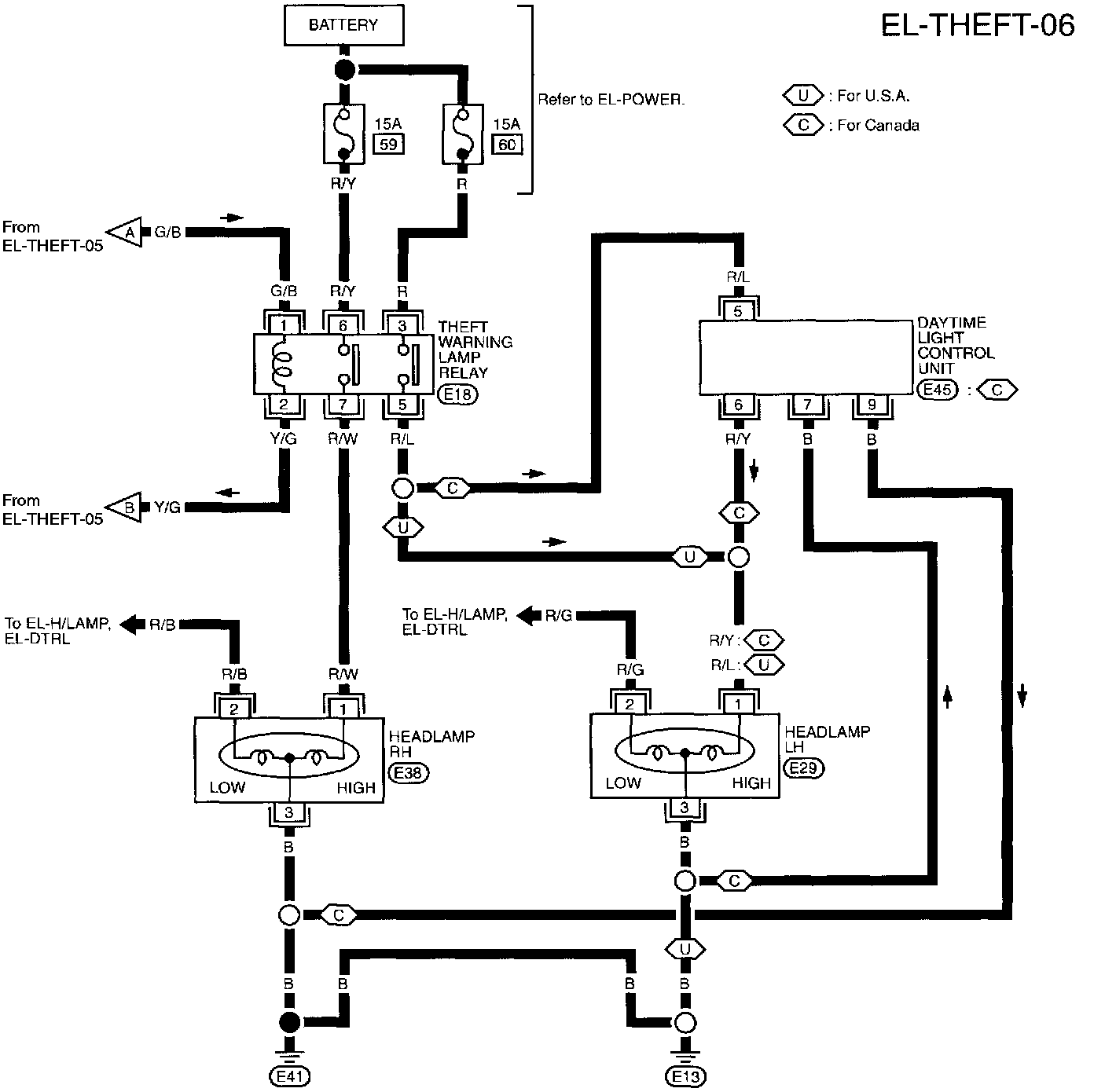

(Part 6 of 6)
Daytime Light Control Unit
Headlamp LH/RH
Theft Warning Lamp Relay

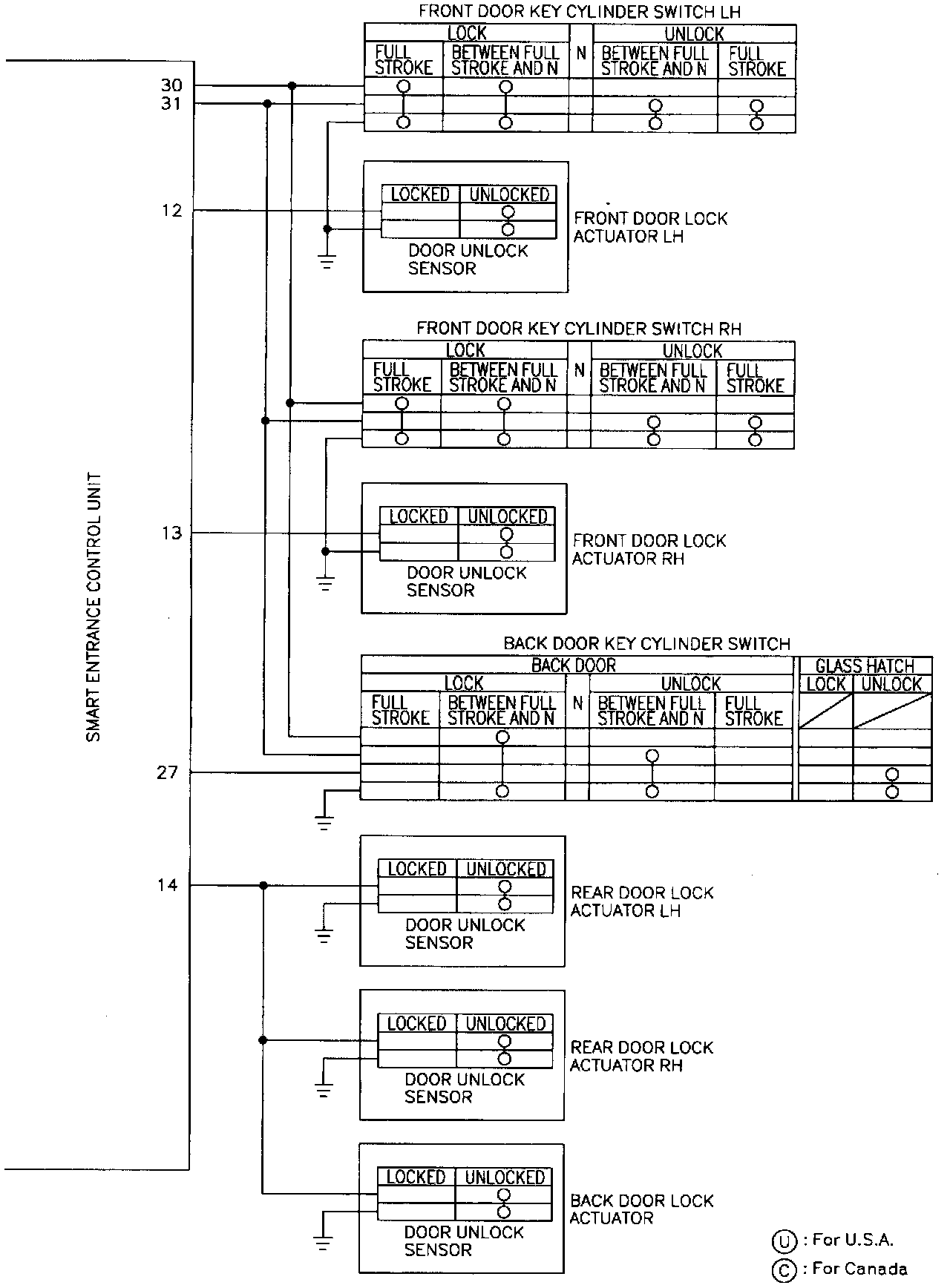

Circuit Diagrams

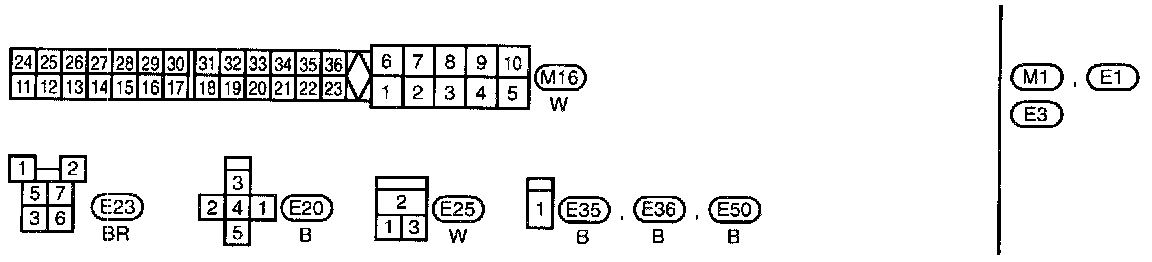

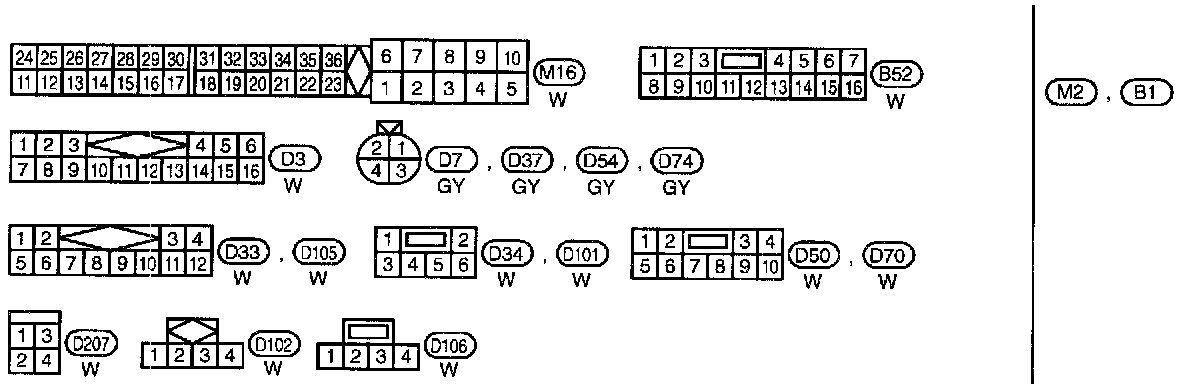

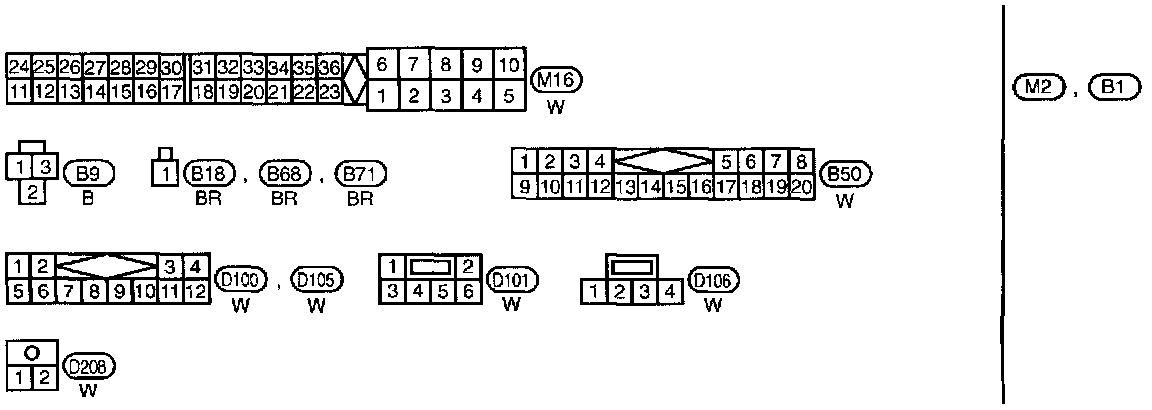

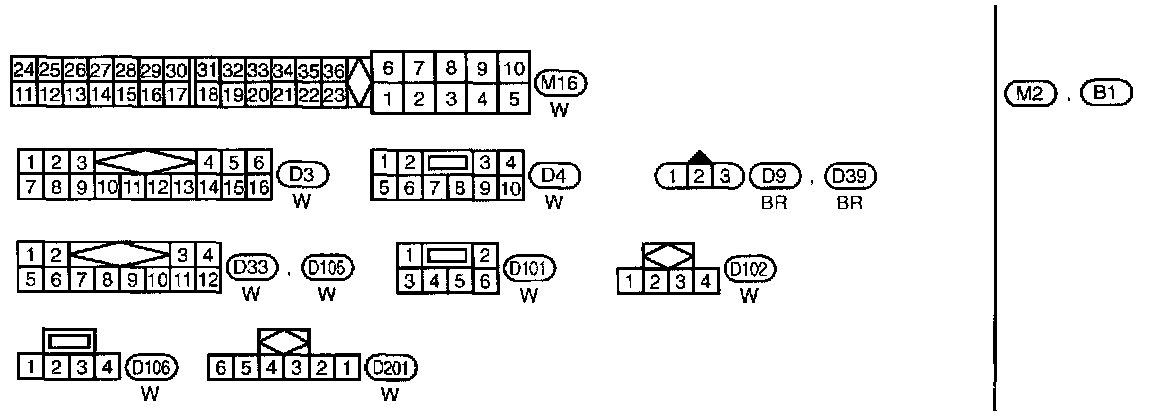

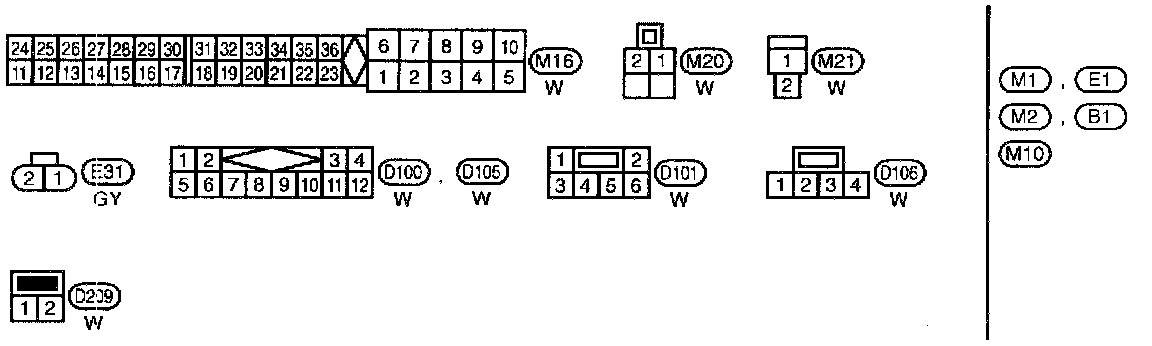

Circuit Connectors





B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements





E3, M10 Terminal Arrangement
