Nissan Communicator (IVCS)
Nissan Communicator (IVCS)

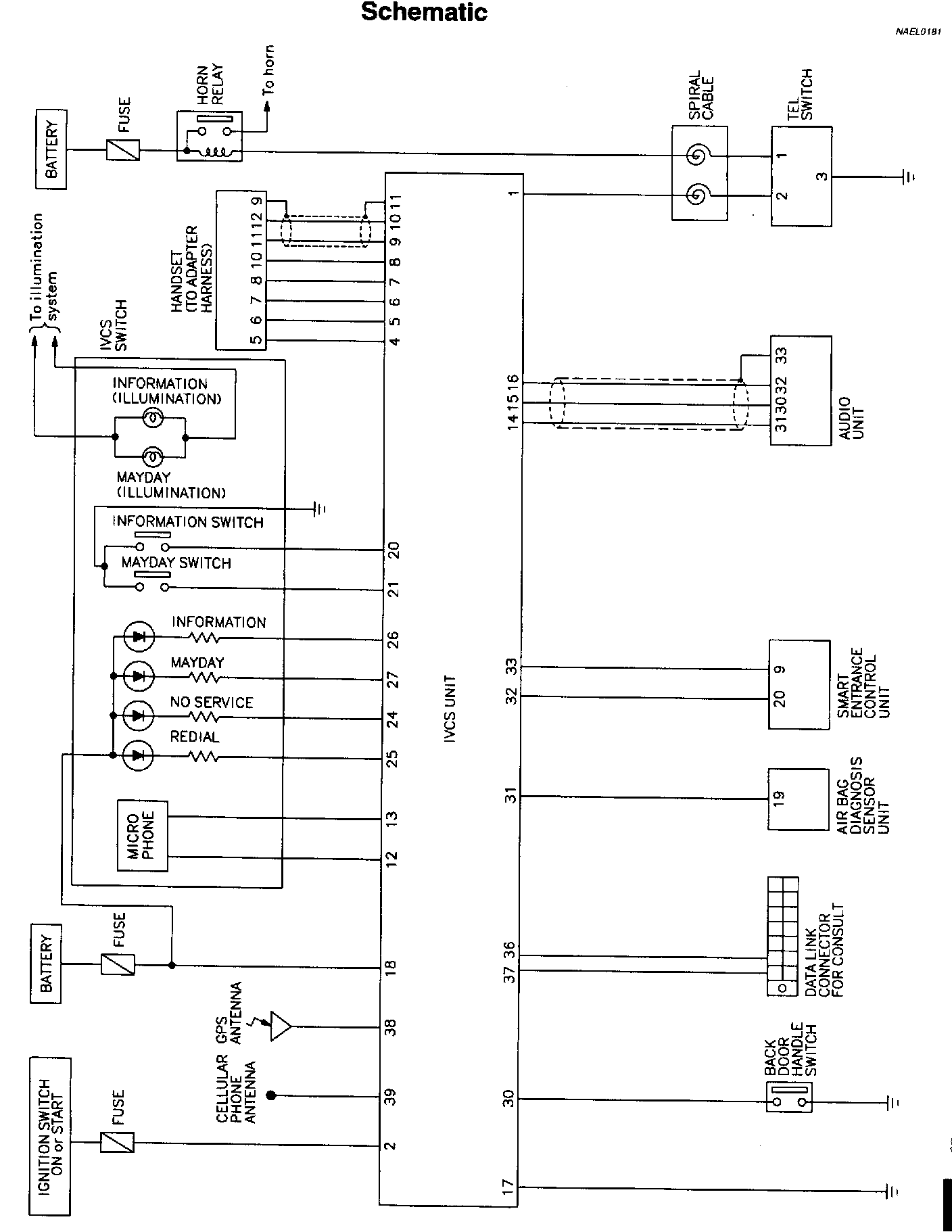

Schematic

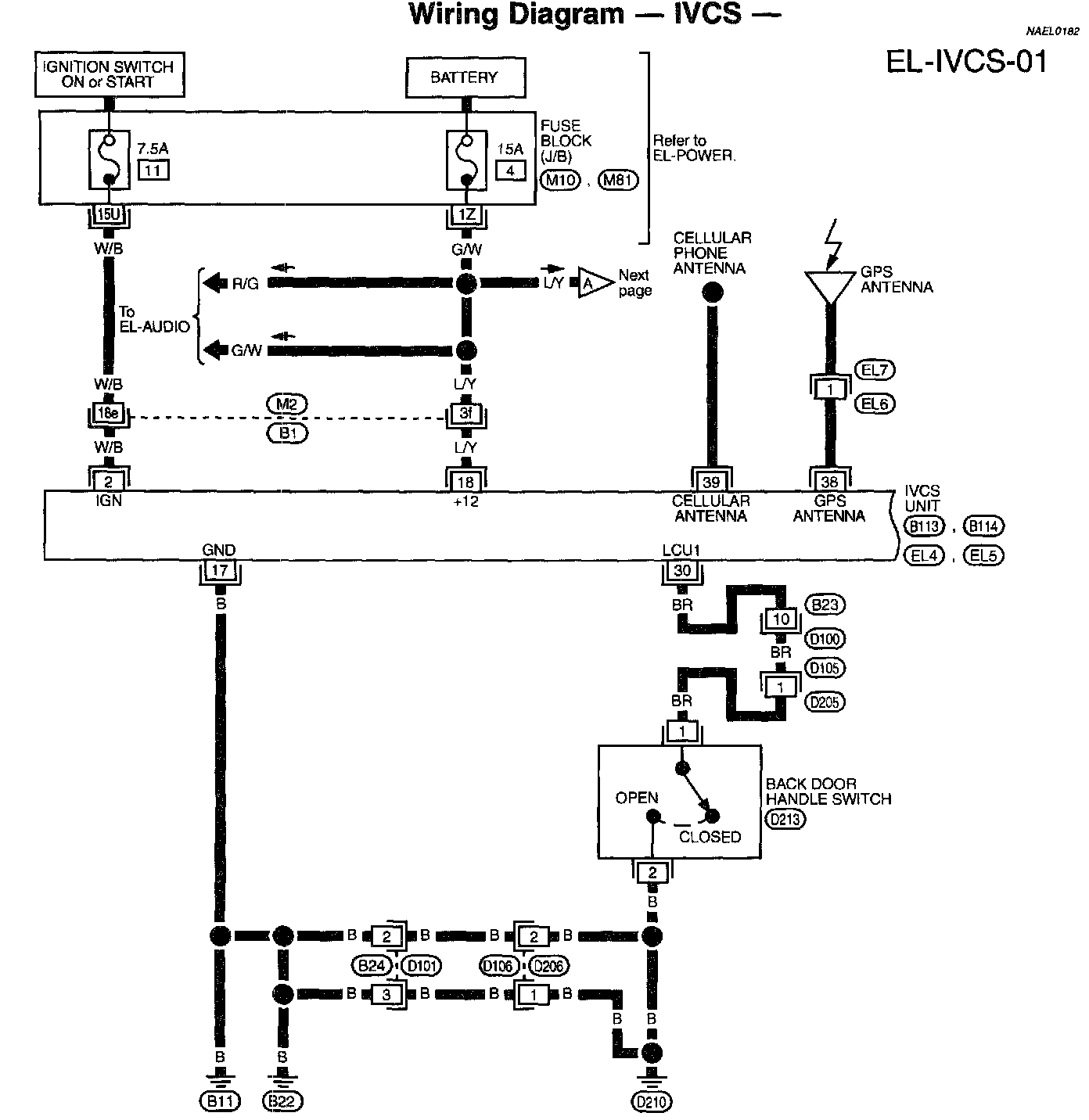

EL-IVCS-01:

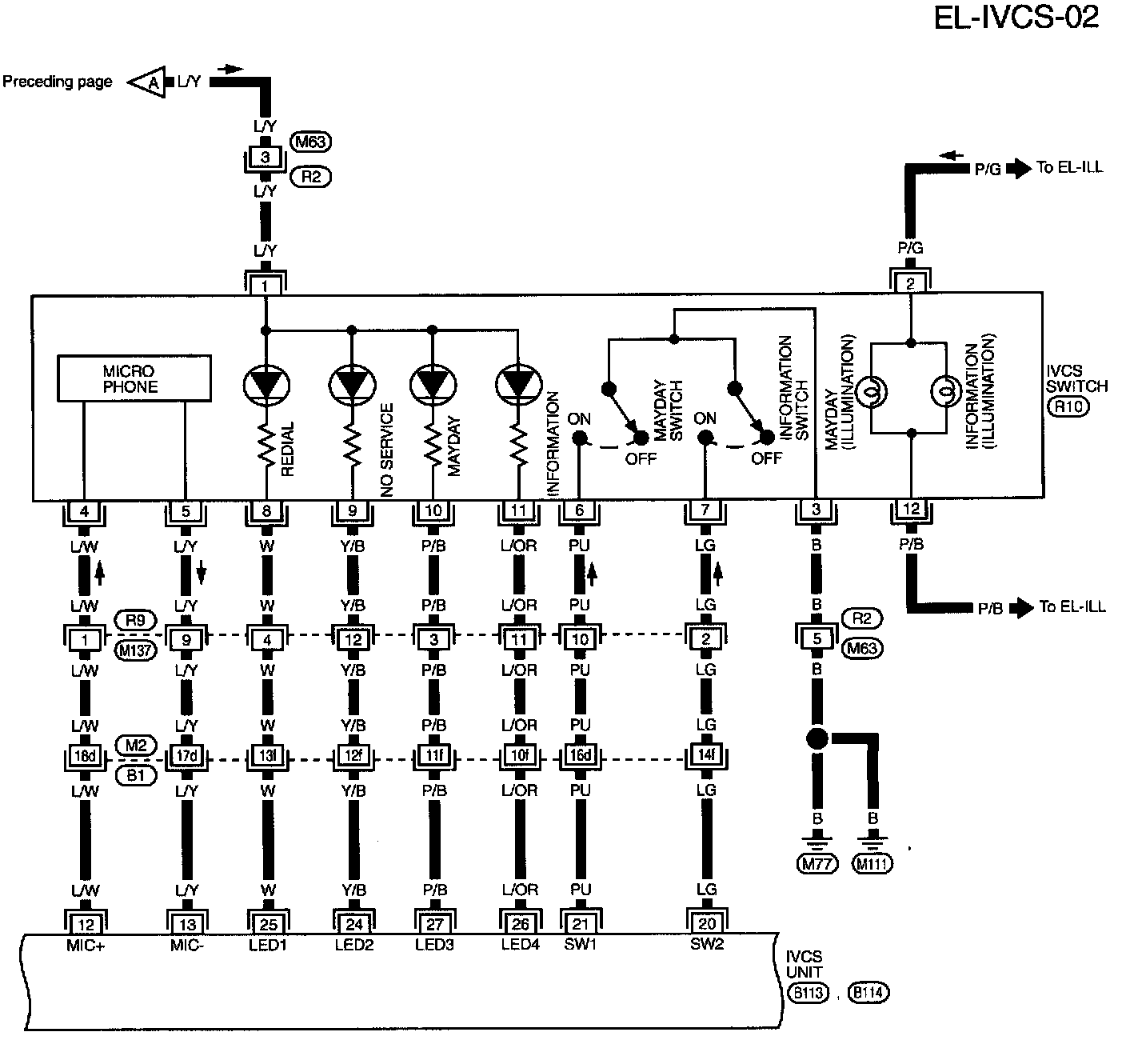

EL-IVCS-02:

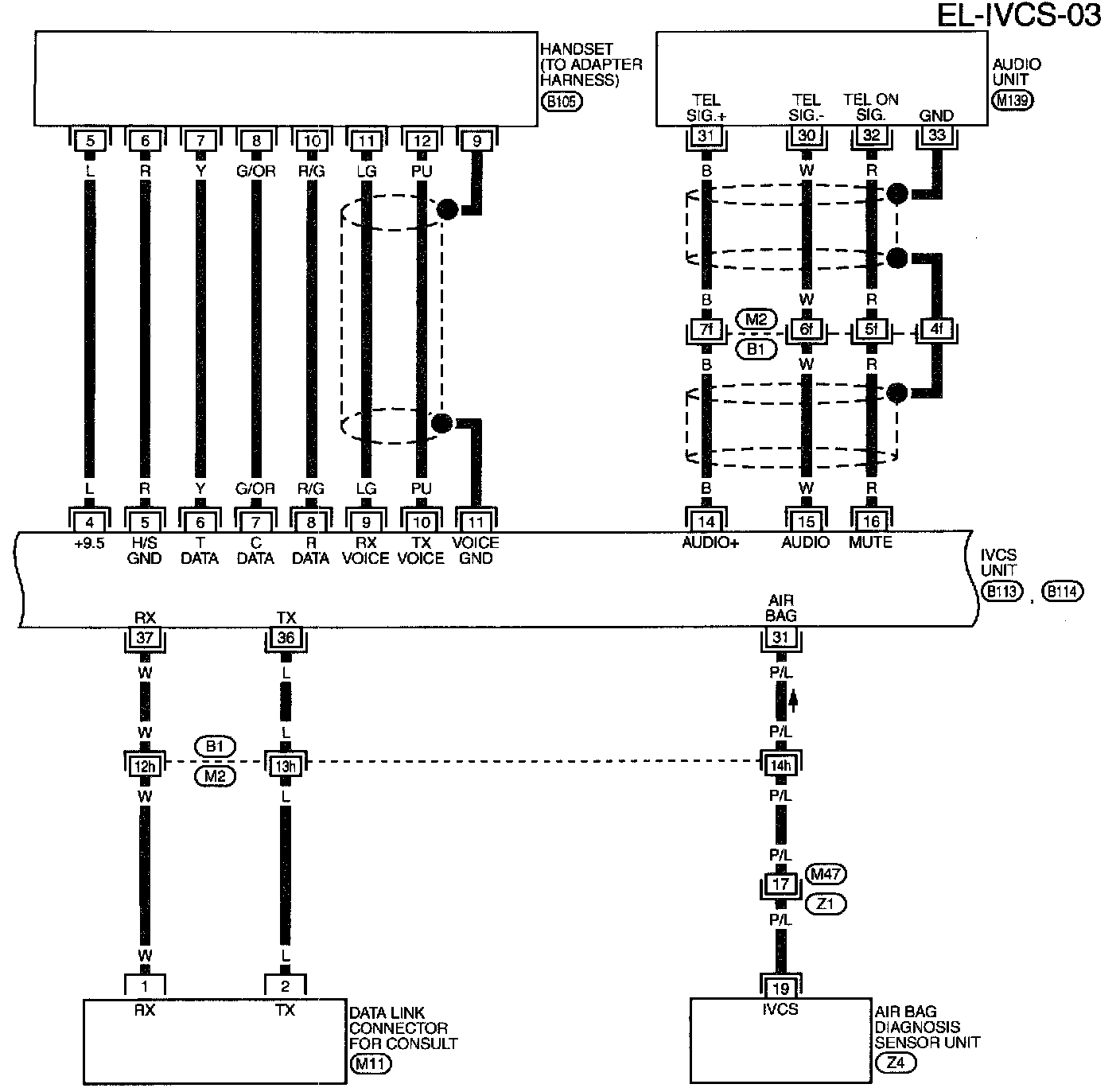

EL-IVCS-03:

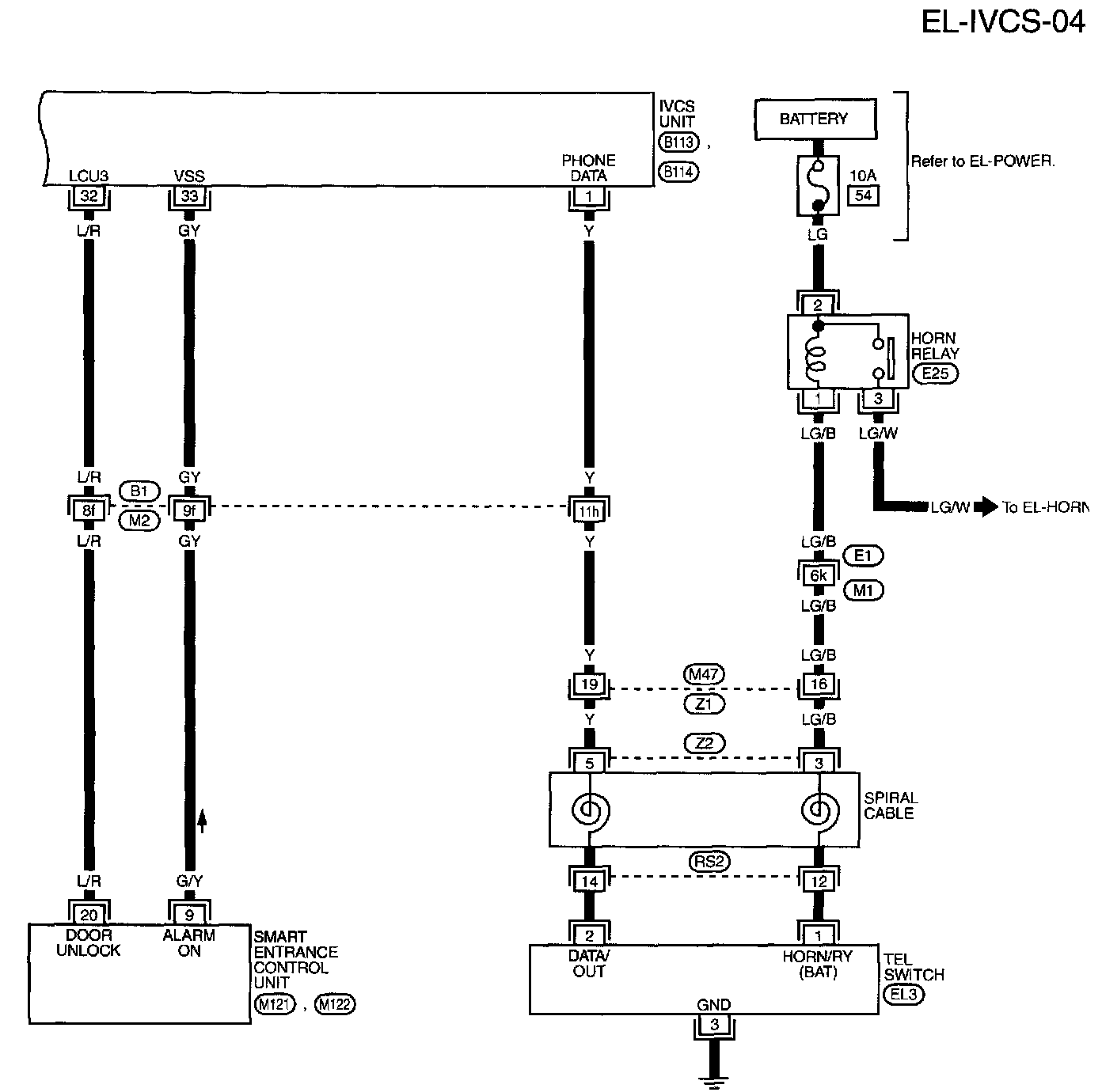

EL-IVCS-04:
Circuit Diagram

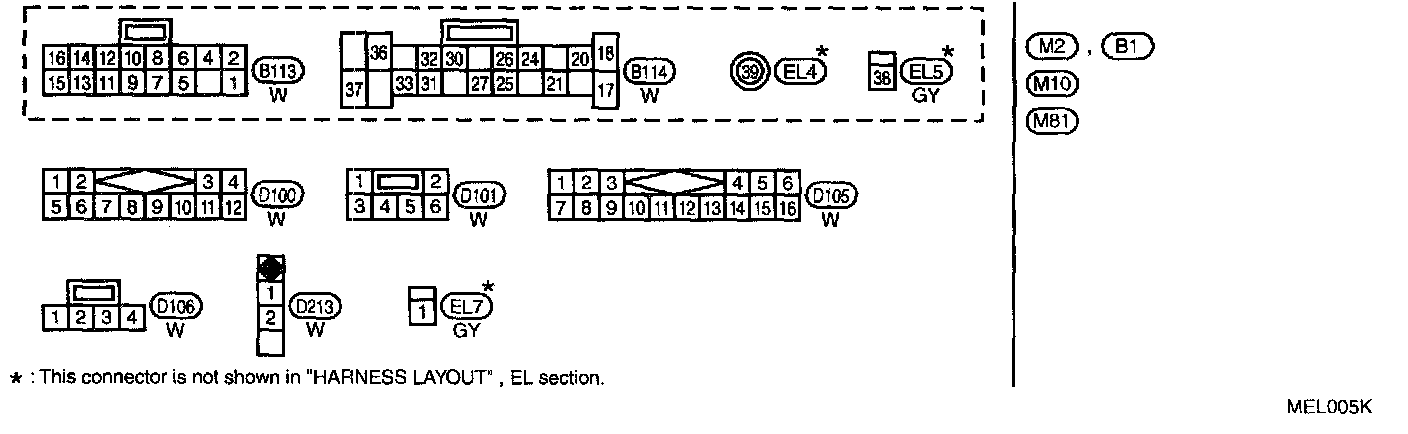

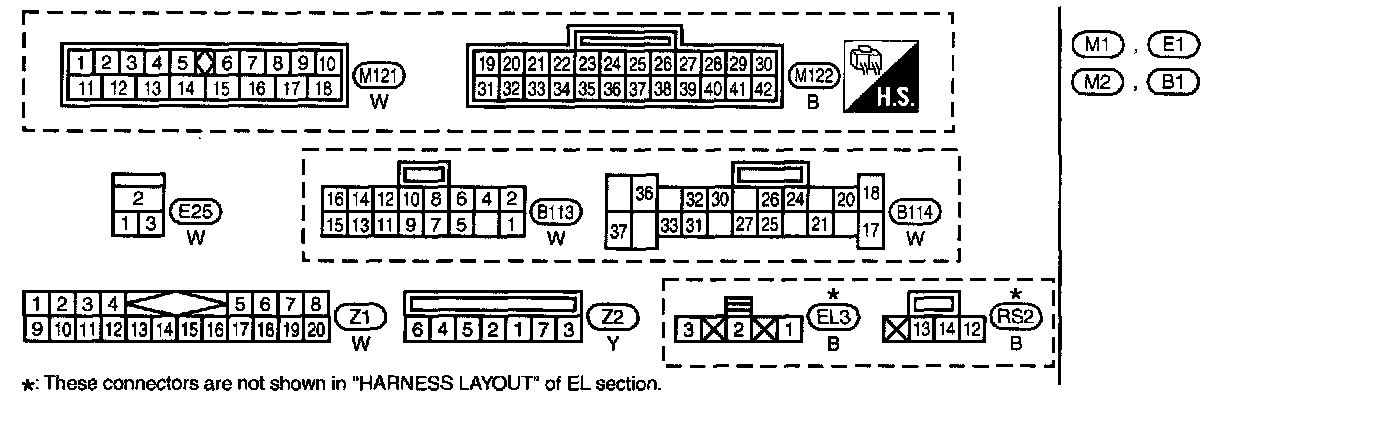

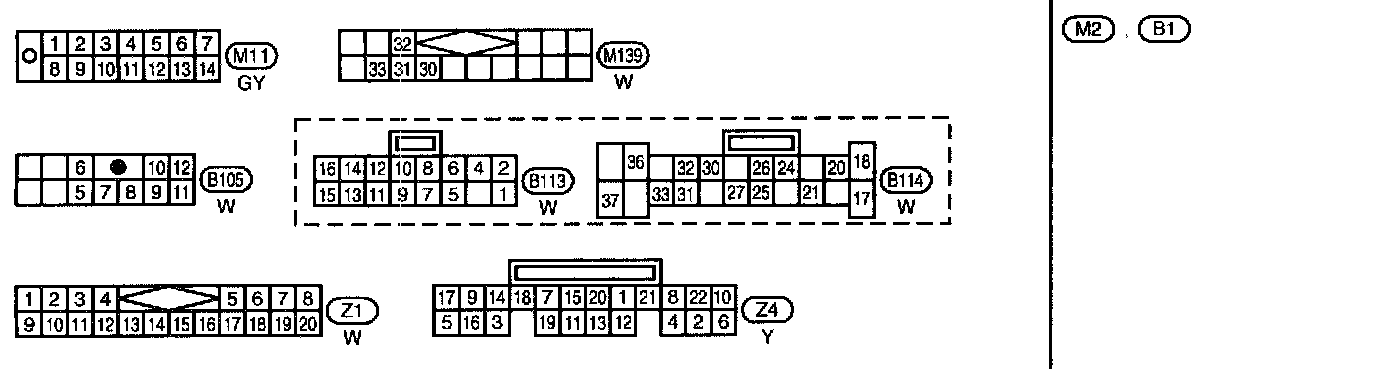

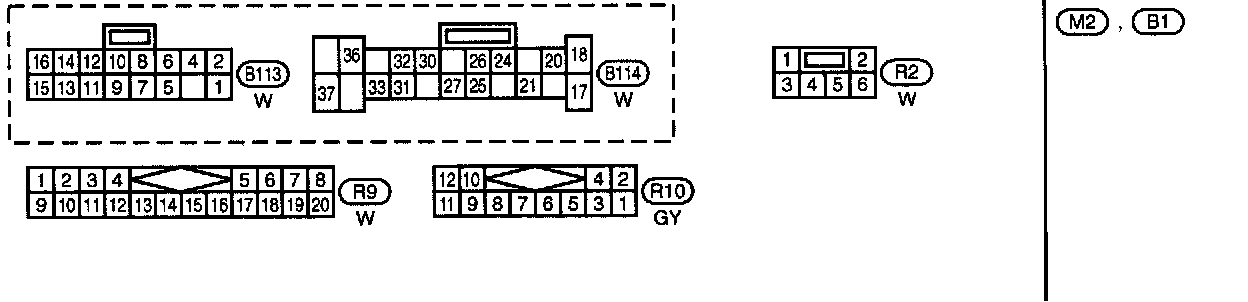

Circuit Connectors
