Engine Control Module



To VIN # 350000







































From VIN # 350001

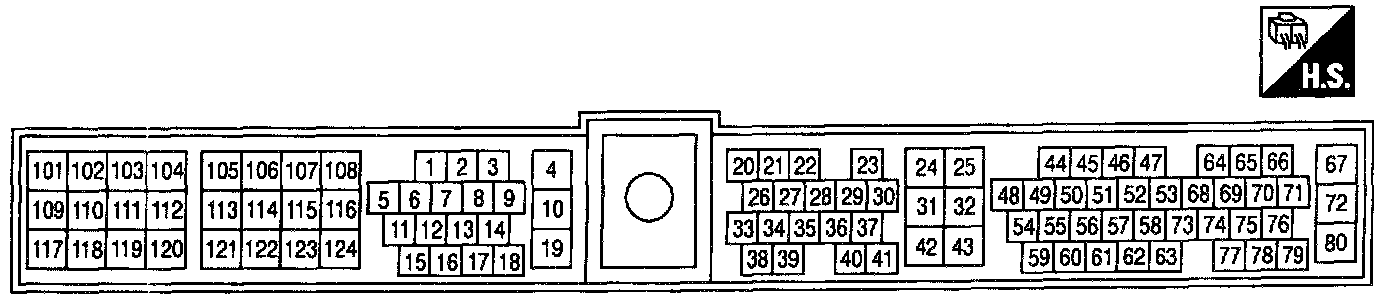

ECM Harness Connector Terminal Layout:





Part 1 Of 8:





Part 2 Of 8:





Part 3 Of 8:





Part 4 Of 8:





Part 5 Of 8:





Part 6 Of 8:





Part 7 Of 8:





Part 8 Of 8:
