AUTOMATIC SPEED CONTROL DEVICE (ASCD)

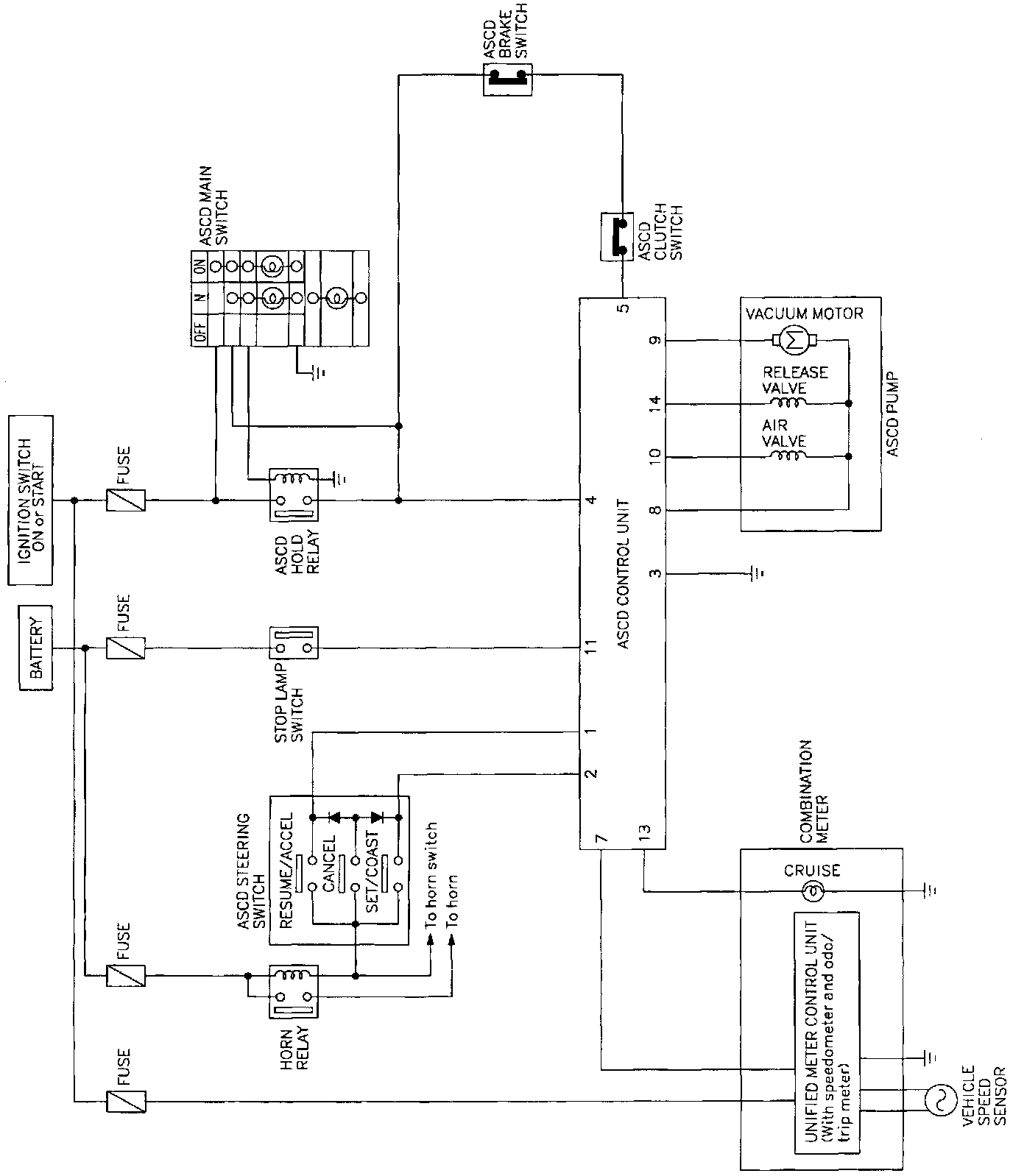

Circuit Schematic M/T Models




Circuit Schematic A/T Models

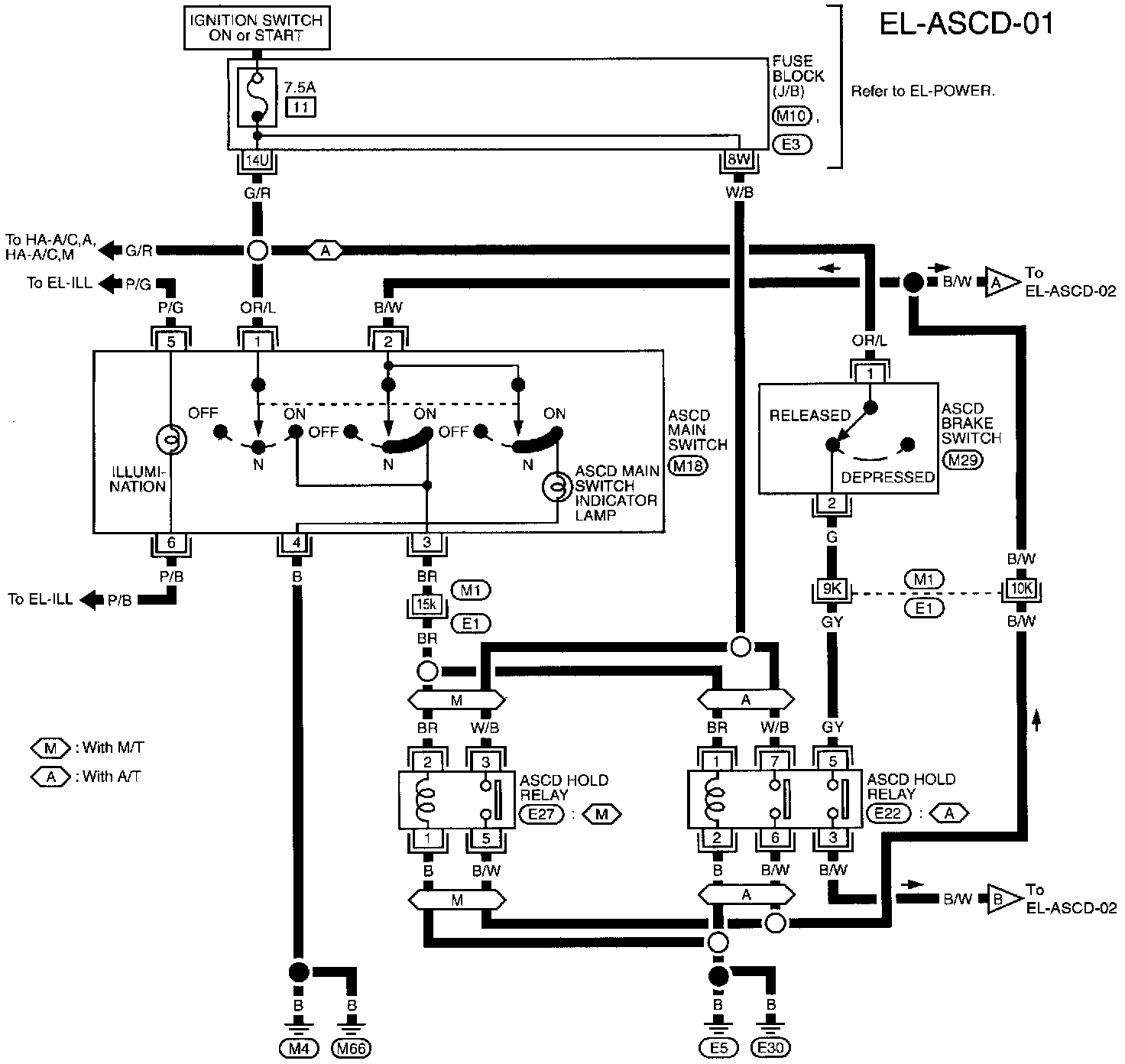

Part 1 of 5
ASCD Brake Switch
ASCD Hold Relay
ASCD Main Switch
- ASCD Main Switch Indicator Lamp
ASCD Main Switch Indicator Lamp
Fuse Block (J/B)




Part 2 of 5
ASCD Brake Switch
ASCD Clutch Switch
Diode
Fuse Block (J/B)
Park/Neutral Position Relay
Theft Waring Relay




Part 3 of 5
ASCD Steering Switch
- Cancel Switch
- Resume/Accel Switch
- Set/Coast Switch
ASCD Control Unit
Fuse Block (J/B)
Horn Relay
Spiral Cable
Stop Lamp Switch

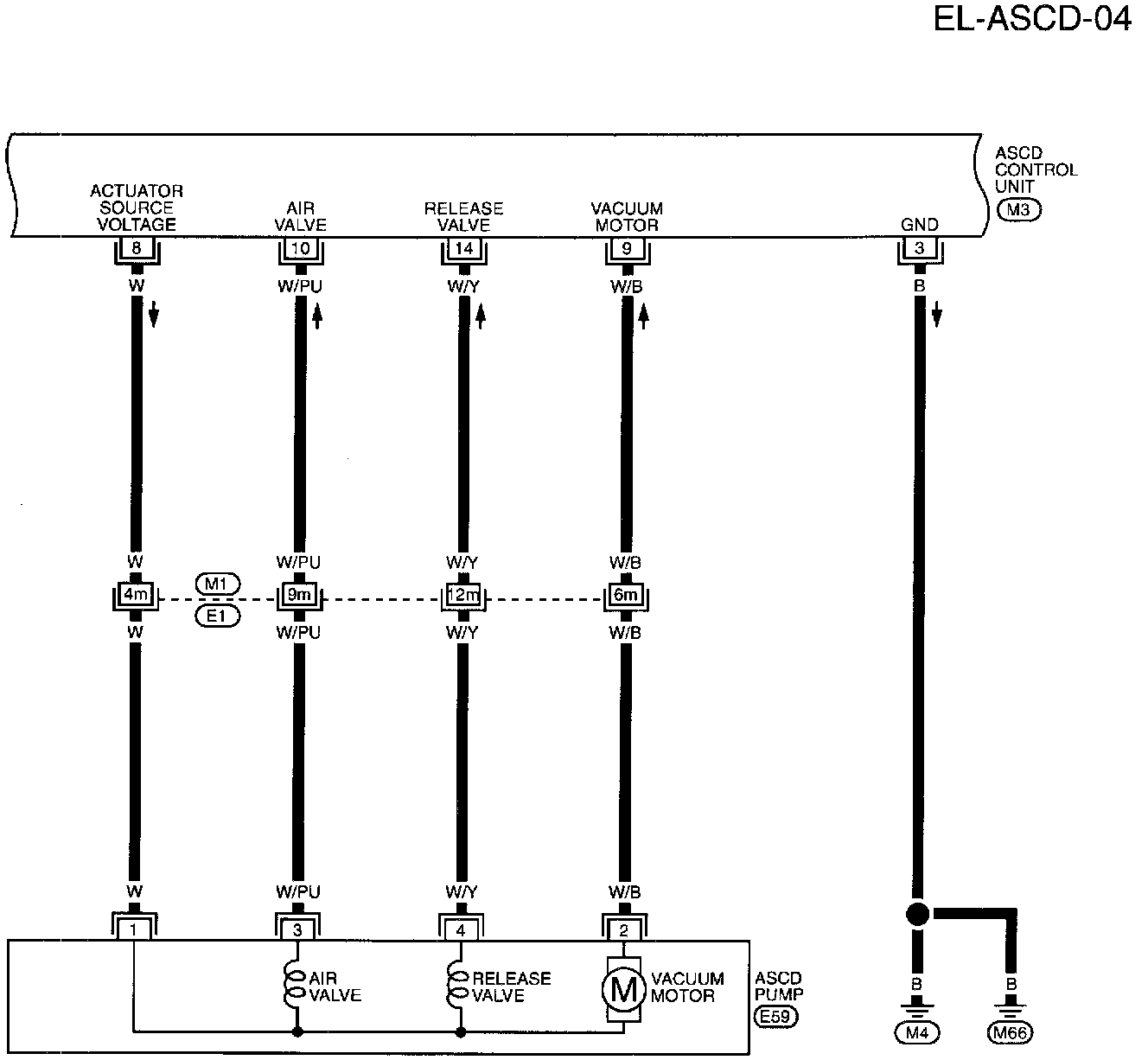

Part 4 of 5
ASCD Control Unit
ASCD Pump
- Air Valve
- Release Valve
- Vacuum Motor




Part 5 of 5
ASCD Control Unit
- Cruise Lamp
- OD Cancel Signal
- Speed Sensor
Combination Meter
Fuse Block (J/B)
TCM (Transmission Control Module)
- ASCD 4th Cut Switch
- ASCD Cruise Switch
Vehicle Speed Sensor

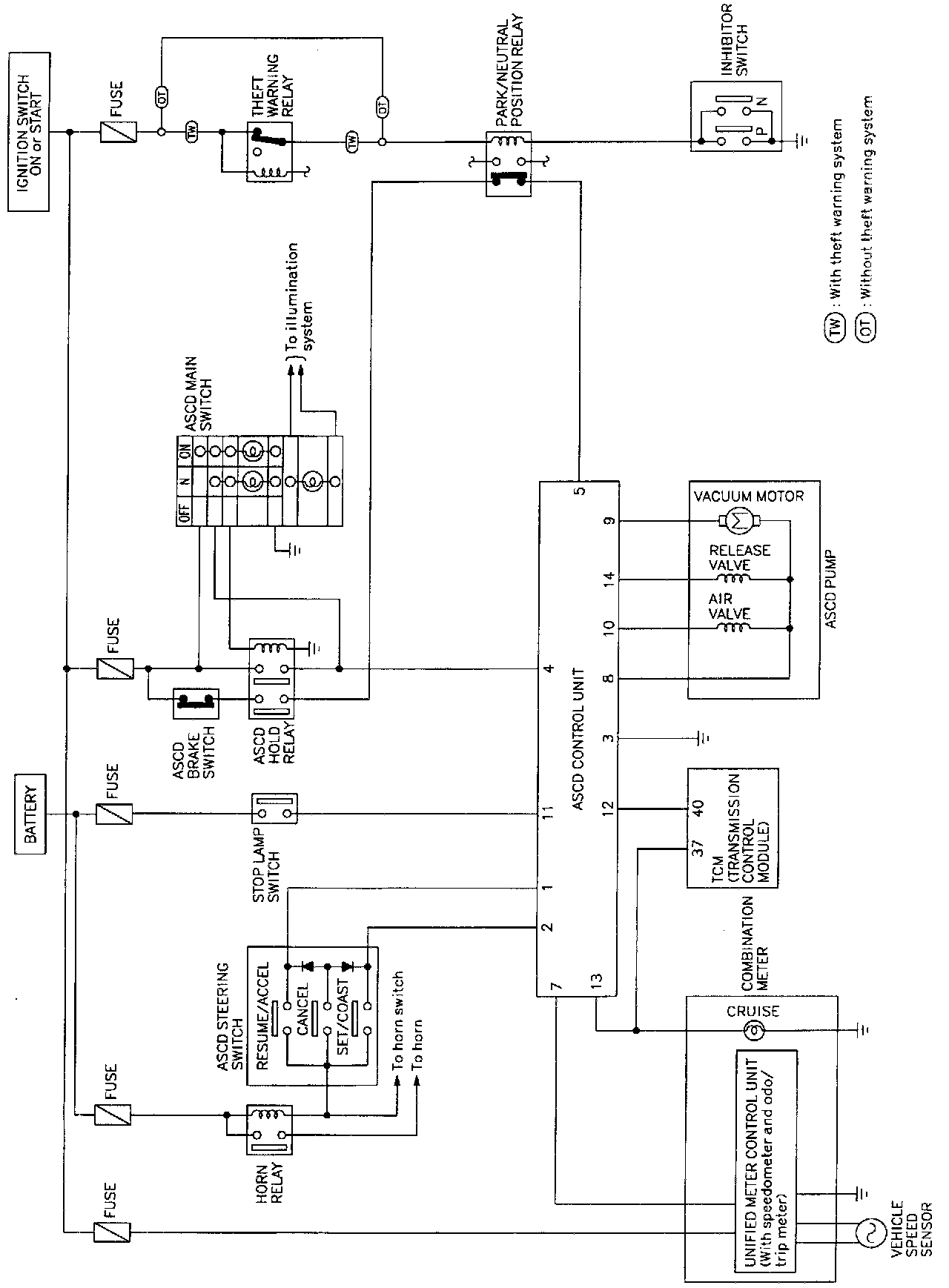

Circuit Diagram

















Circuit Connectors





E1, M1 Body, Engine and Main Harness Terminal Arrangements





E3, M10 Terminal Arrangement





M13 Terminal Arrangement
