To VIN # 350000

AUTOMATIC SPEED CONTROL DEVICE (ASCD) WIRE ADJUSTMENT





CAUTION:
- Be careful not to twist ASCD wire when removing it.
- Do not tense ASCD wire excessively during adjustment.

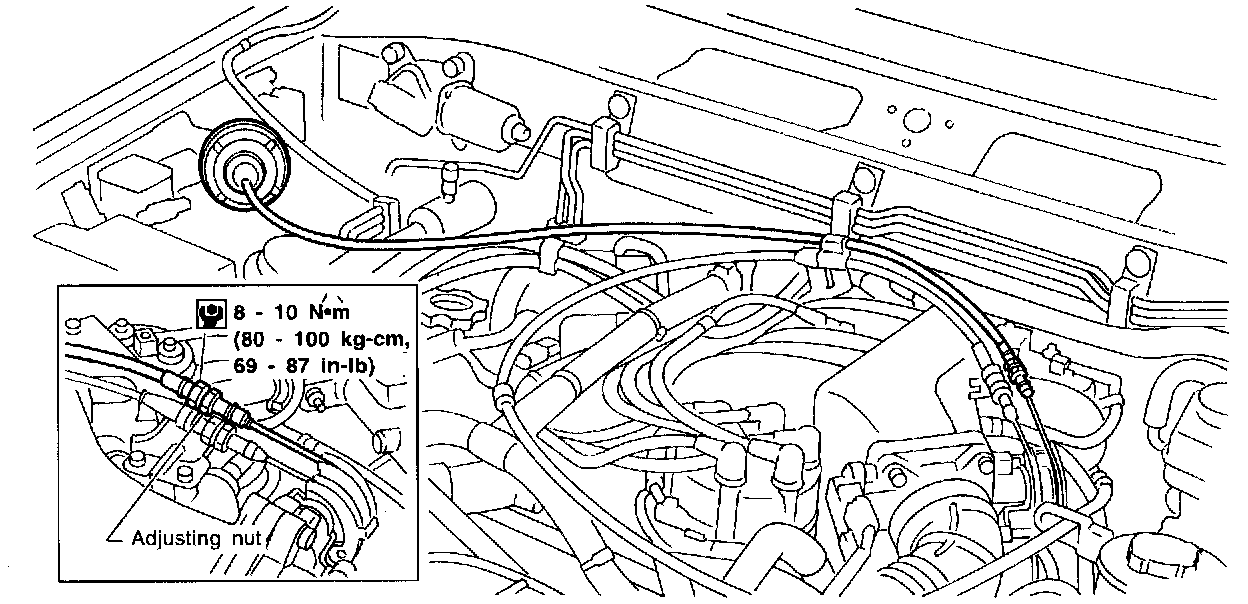

Adjust the tension to ASCD wire in the following manner.
1. Loosen lock nut and adjusting nut.
2. Make sure that accelerator wire is properly adjusted.
3. Tighten adjusting nut just until throttle drum starts to move.
4. Loosen adjusting nut again 1/2 to 1 turn.
5. Tighten lock nut.
