Front

REMOVAL
1. Remove the front wheel hub.

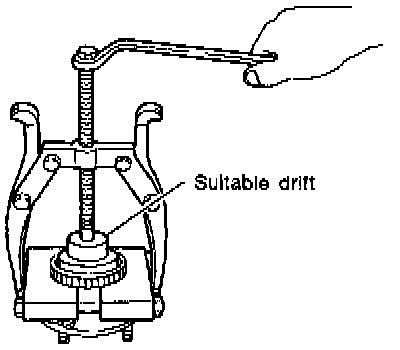

2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

INSTALLATION





Install the sensor rotor using suitable drift and press.

NOTE:
- Always replace sensor rotor with new one.
- Pay attention to the direction of front sensor rotor as shown in figure.
