From VIN # 350001
Electrical Component InspectionG Sensor
CAUTION: The G sensor is easily damaged if it sustains an impact. Be areful not to drop or bump it.

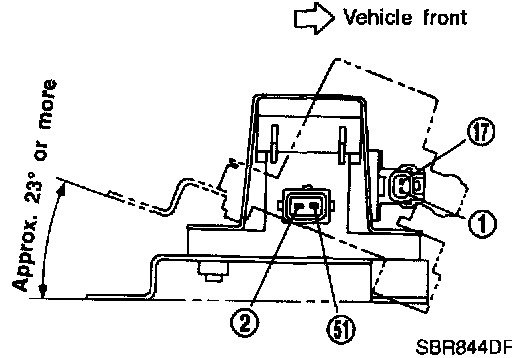

1. Measure resistance between terminals 2 and 51 of G sensor unit connector.

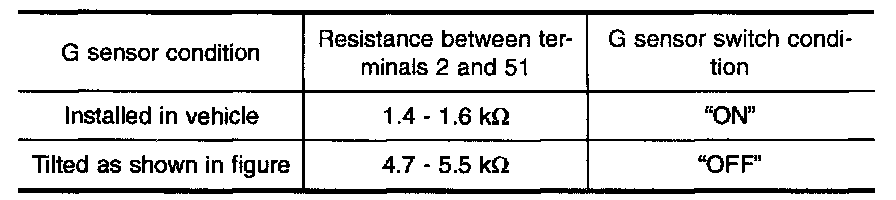

Resistance between terminal 2 and 51:
2. Measure resistance between terminals 1 and 17 of the G sensor unit connector.
Resistance: 70 - 124 ohms.
