Parking Brake System: Service and Repair

REPLACEMENT

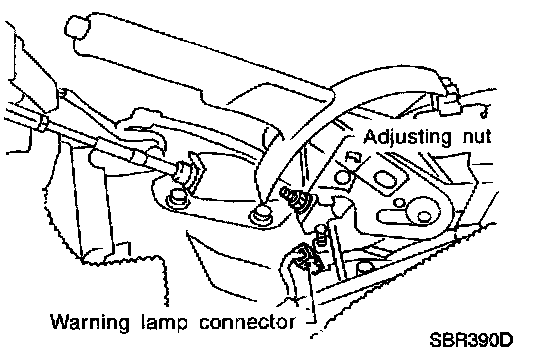

1. To remove parking brake cable, first remove center console.





2. Disconnect warning lamp connector.
3. Remove bolts, slacken off and remove adjusting nut.





4. Disconnect cable.

INSPECTION
1. Check control lever for wear and other damage. Replace if necessary.
2. Check wires for discontinuity and deterioration. Replace if necessary.
3. Check warning lamp and switch. Replace if necessary.
4. Check parts at each connecting portion and, if deformed or damaged, replace.
