To VIN # 350000

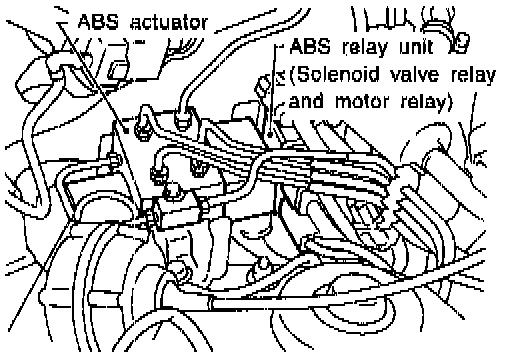

ABS Actuator Operation:

The actuator contains:
- An electric motor and pump
- Two relays
- Six solenoid valves, each inlet and outlet for
- LH front
- RH front
- Rear

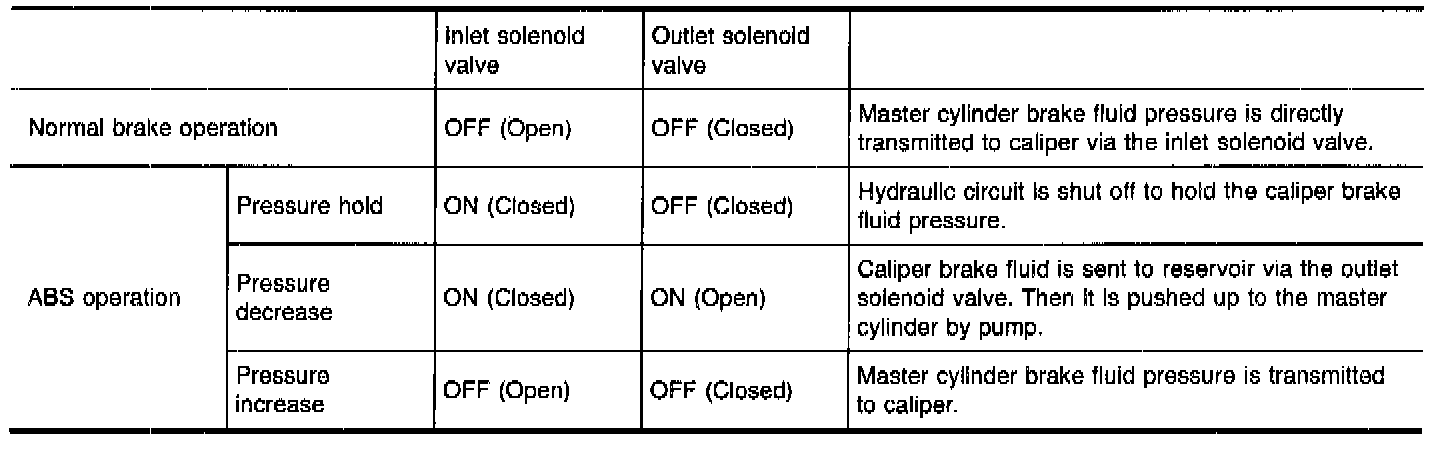

These components control the hydraulic circuit. The ABS control unit directs the actuator to increase, hold or decrease hydraulic pressure to all or individual wheels.
