Pedal Vibration and Noise

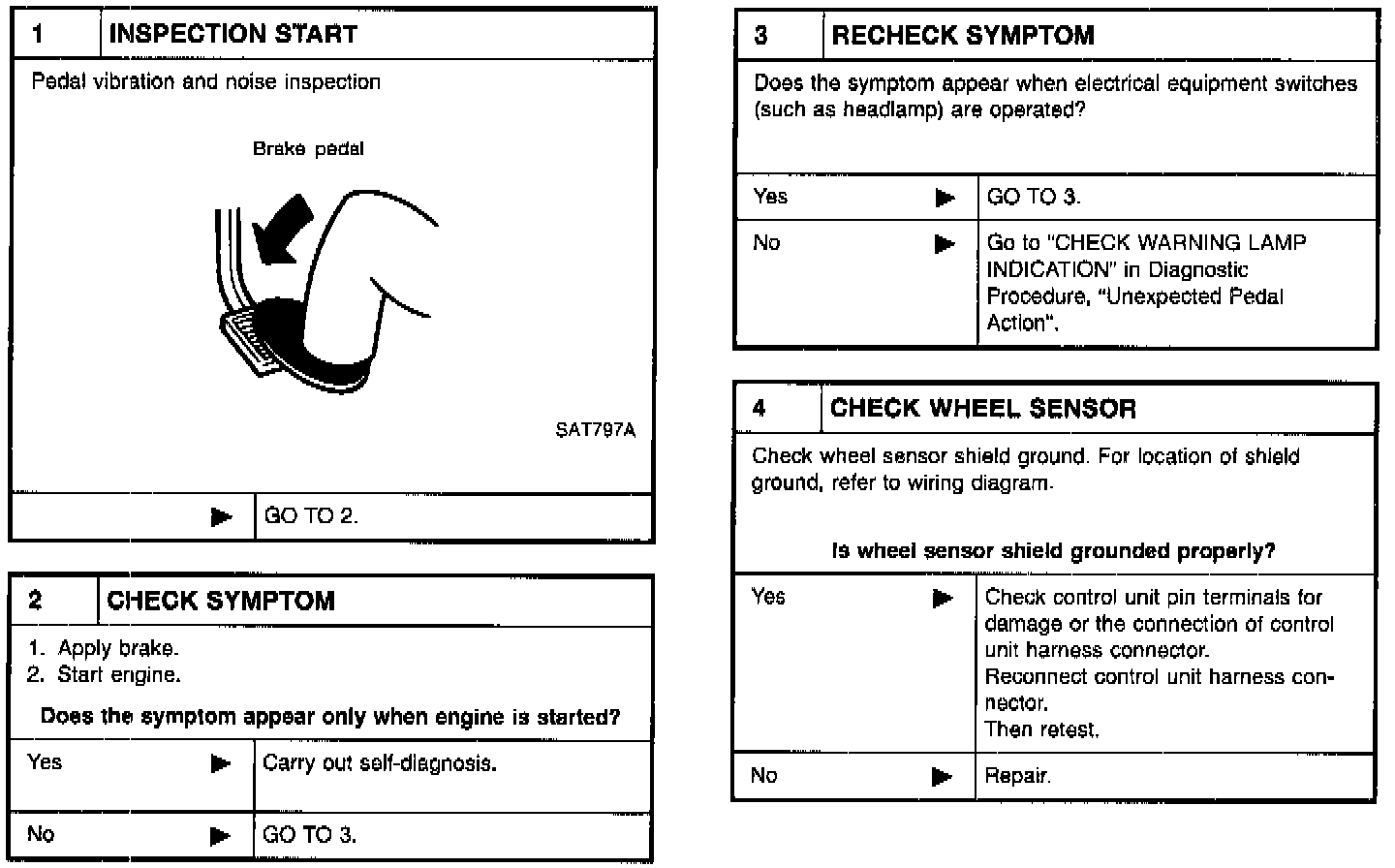

Diagnostic Chart

Note: ABS may operate and cause vibration under any of the following conditions:
- Applying brake gradually when shifting or operating clutch
- Low friction (slippery) road
- High speed cornering
- Driving over bumps and pot holes
- Engine speed is over 5000 RPM with vehicle stopped
