Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis Testing Procedures By Symptom
>>
Long Stopping Distance
Long Stopping Distance

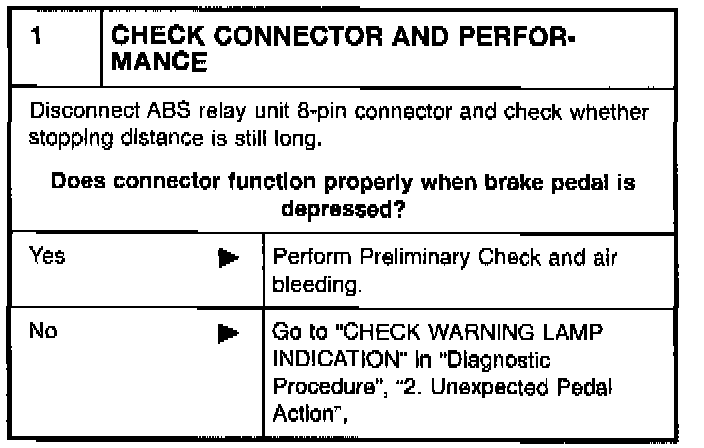

Diagnostic Chart
Note:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
