Data Monitor Procedure

1. Turn ignition switch OFF.
2. Connect CONSULT to Data link Connector for CONSULT.
3. Turn ignition switch ON.

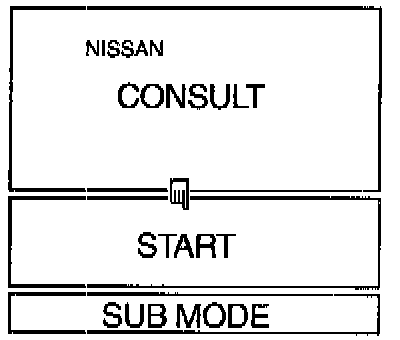

4. Touch "START" for CONSULT screen.





5. Touch "ABS".

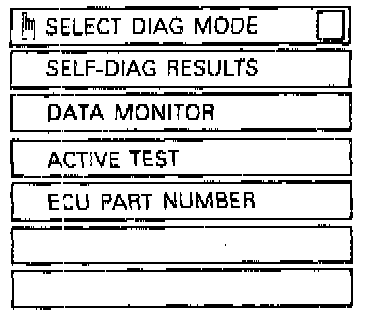

6. Touch "DATA MONITOR".

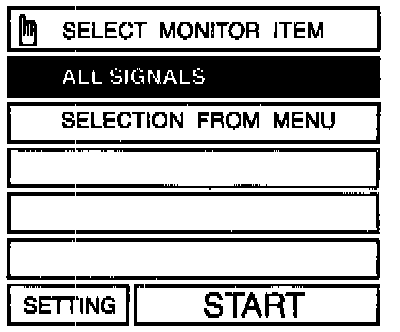

7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.





8. Touch "LONG TIME" on "SET RECORDING COND" screen.
9. Touch "START" on "SELECT MONITOR ITEM".
