Active Test Mode

NOTE:
- When conducting Active TEST, vehicle must be stationary.
- When ABS warning lamp stays on, never conduct Active Test.

1. Turn ignition switch OFF.
2. Connect CONSULT to Data link Connector for CONSULT.
3. Start engine.

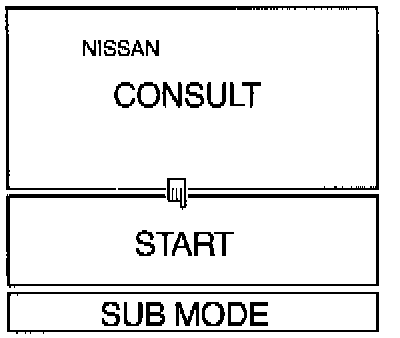

4. Touch "START" on CONSULT screen.

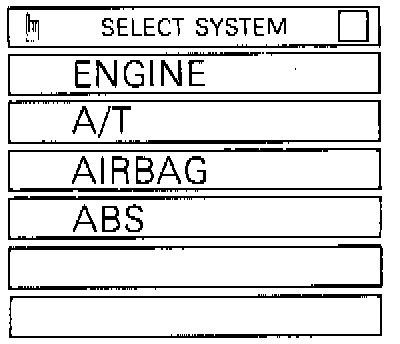

5. Touch "ABS".

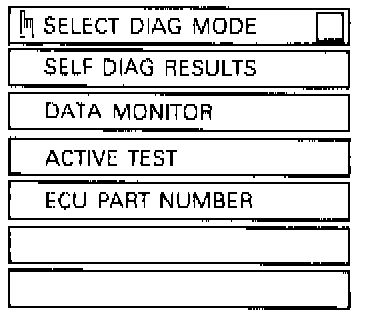

6. Touch "ACTIVE TEST".

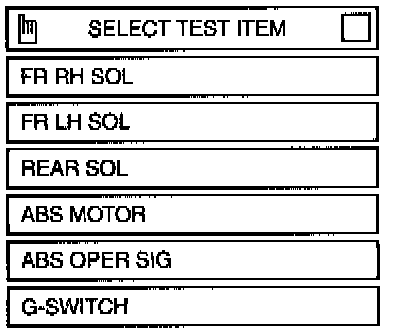

7. Select active test item by touching screen.

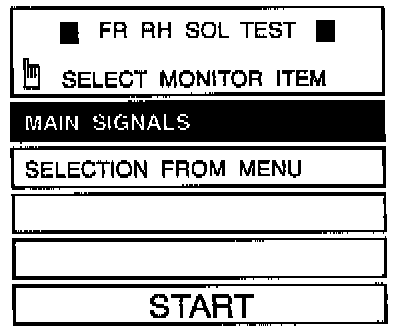

8. Touch "START".
9. Carry out active test by touching screen key.

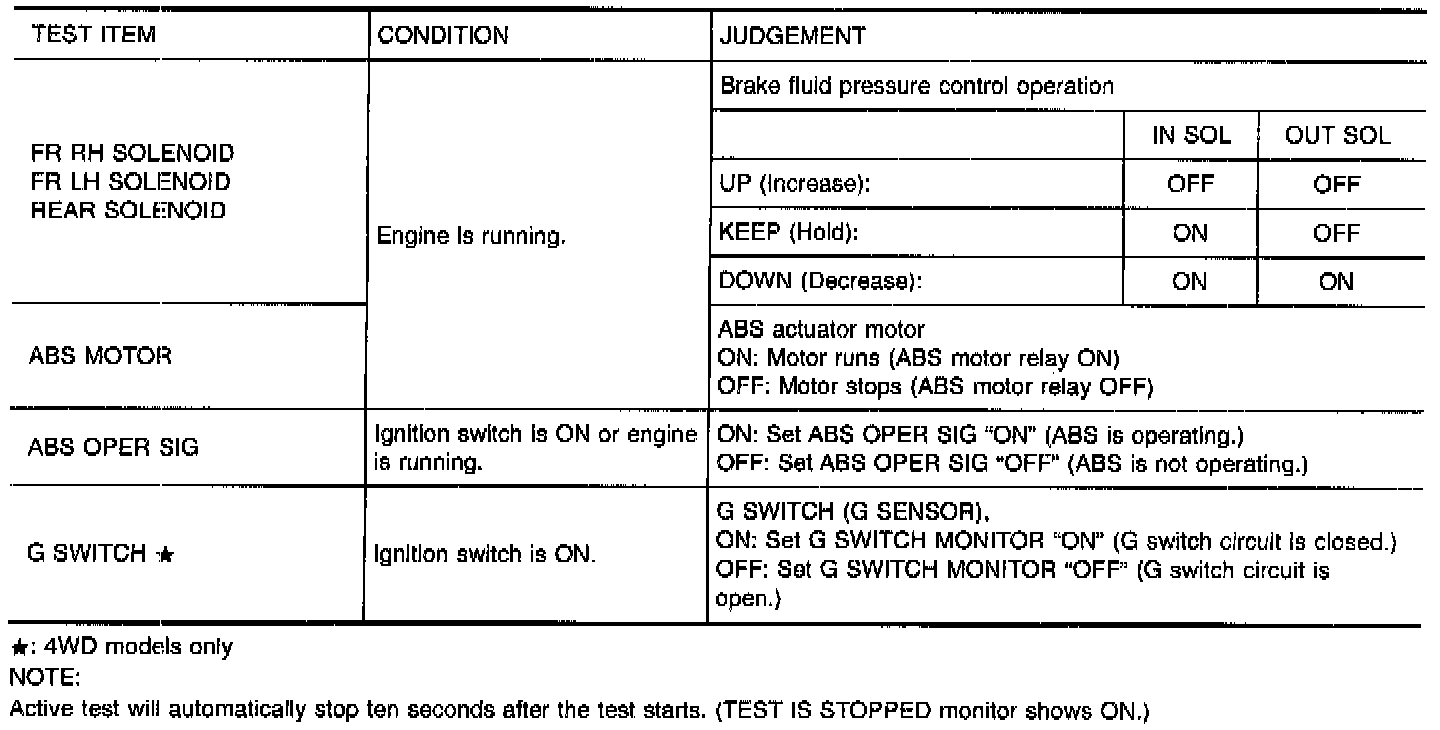

Active Test ModeChart
