Control Unit Ground Check

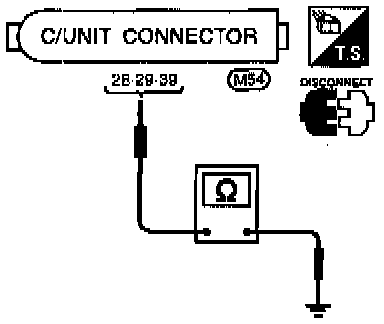

- Check resistance between control unit connector terminals and ground.
Resistance: approximately 0 ohms
