Actuator Motor Ground Check

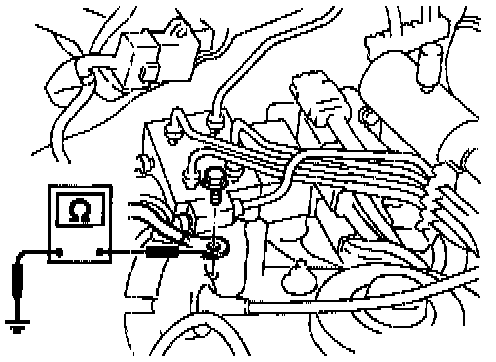

1. Remove actuator motor earth terminal.
2. Check resistance between actuator motor earth terminal and body ground.
Resistance: approximately 0 ohms
