To VIN # 350000

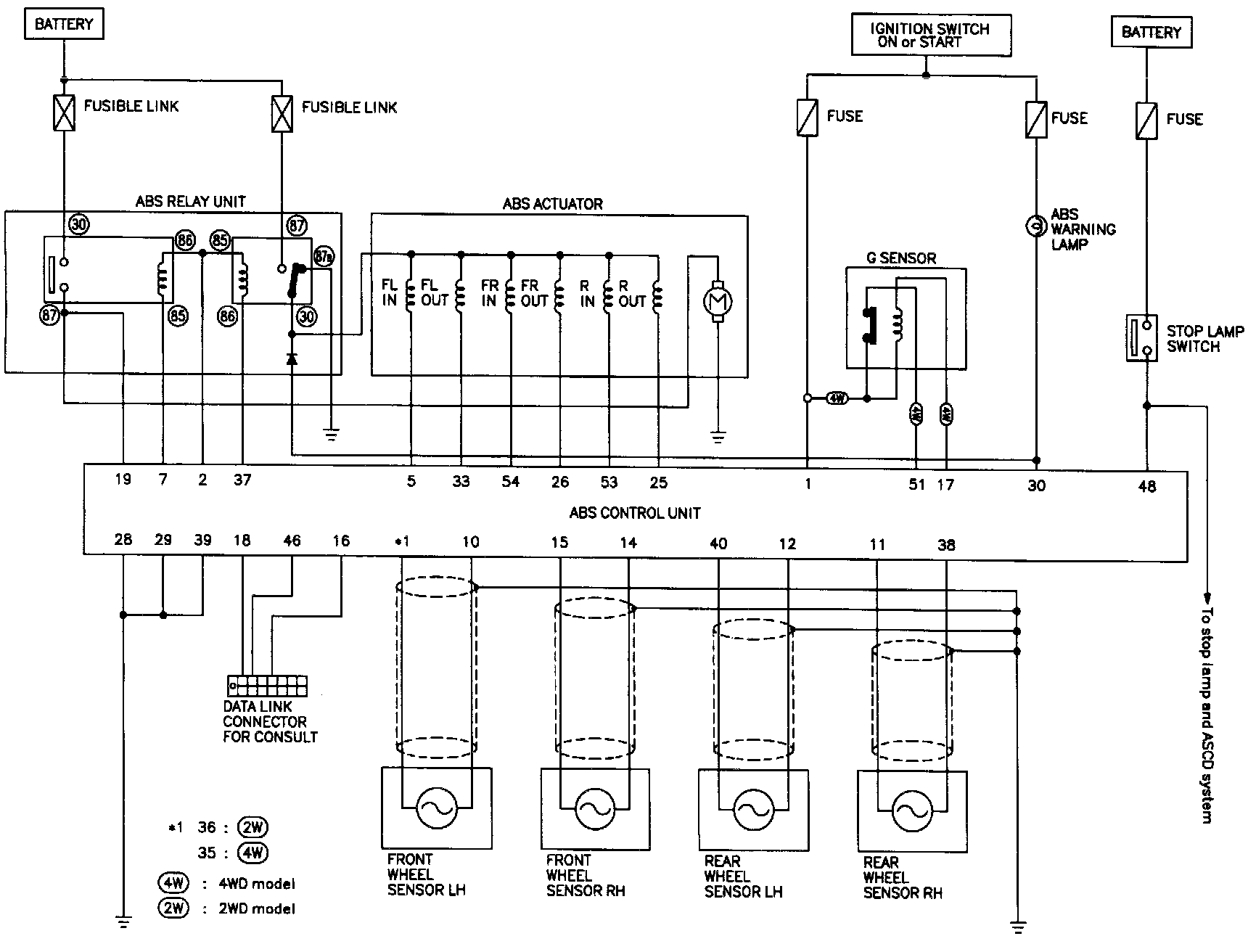

Schematic

BR-ABS-01:

Part 1 of 4
ABS Control unit
ABS Relay Unit
- Motor Relay
- Solenoid Relay

BR-ABS-02:

Part 2 of 4
ABS Actuator
ABS Control Unit
- G Switch
Data Link Connector For Consult
Fuse Block (J/B)
G Sensor

BR-ABS-03:

Part 3 of 4
ABS Control Unit
Front Wheel Sensor LH/RH
Joint Connector
Rear Wheel Sensor LH/RH

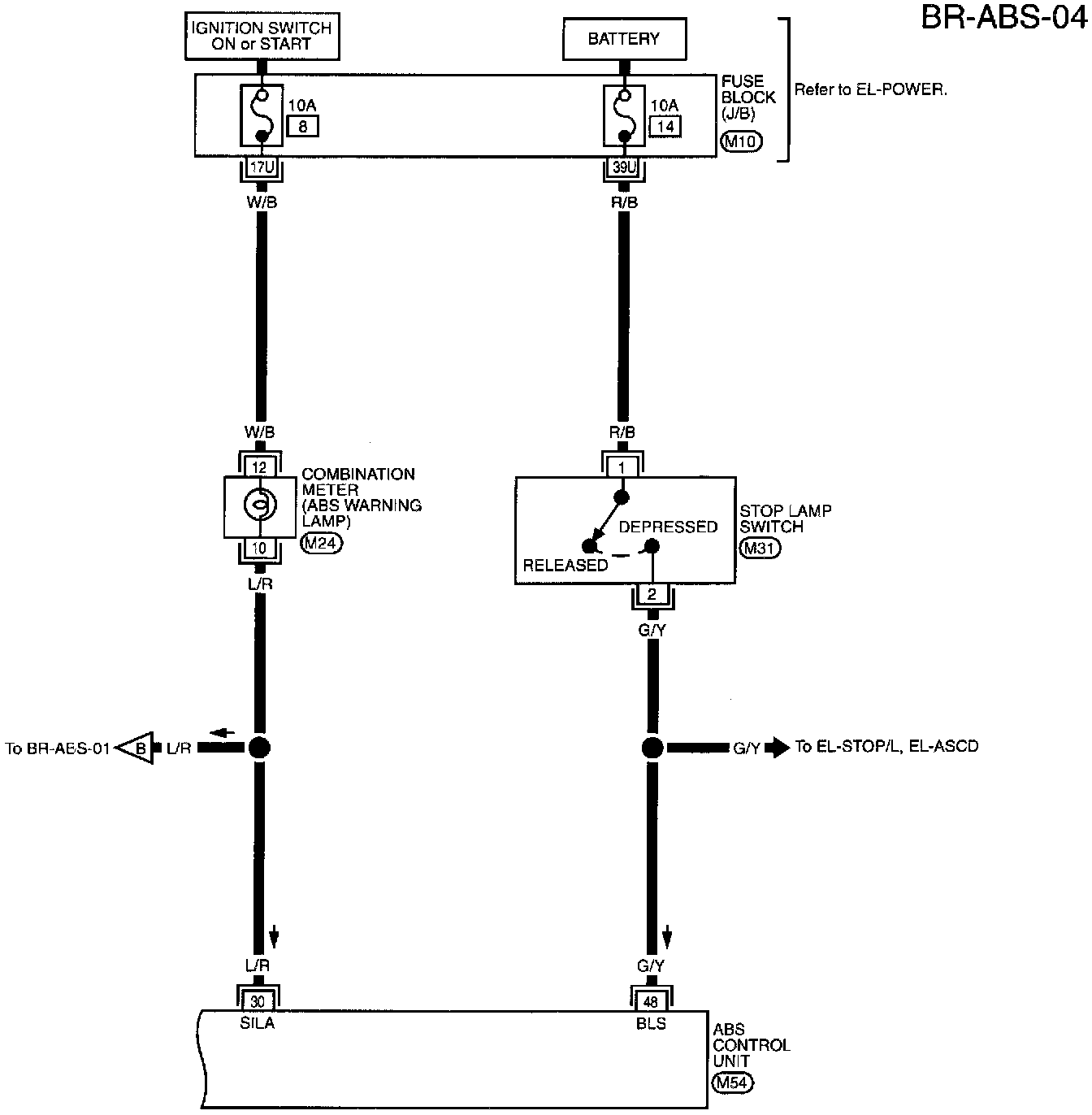

BR-ABS-04:

Part 4 of 4
ABS Control Unit
Combination Meter (ABS Warning Lamp)
Fuse Block (J/B)
Stop Lamp Switch















Circuit Connectors





B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements





M10 Terminal Arrangement
