From VIN # 350001

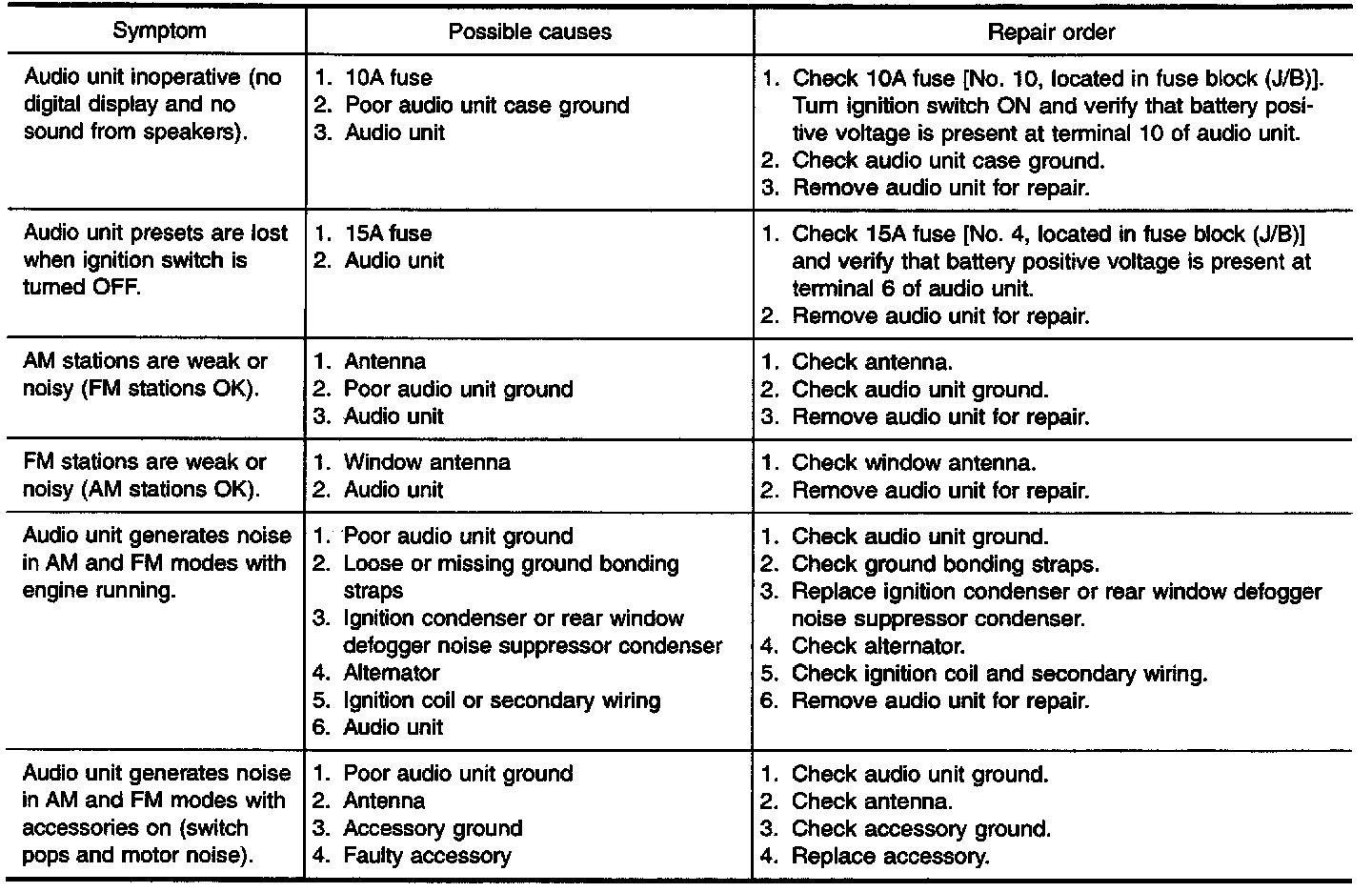

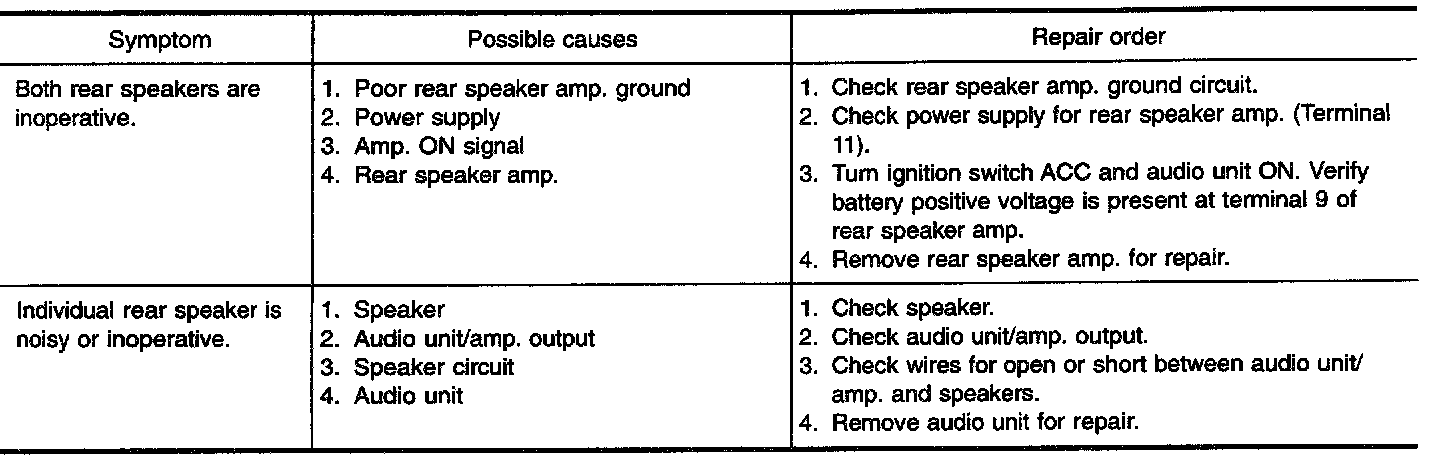

Trouble Diagnoses




AUDIO UNIT




BASE SYSTEM







BOSE SYSTEM

AUDIO UNIT AND AMP.
All voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit and amps. connected (If audio unit or amp. is removed for inspection, supply a ground to the case using a jumper wire.)
