From VIN # 350001

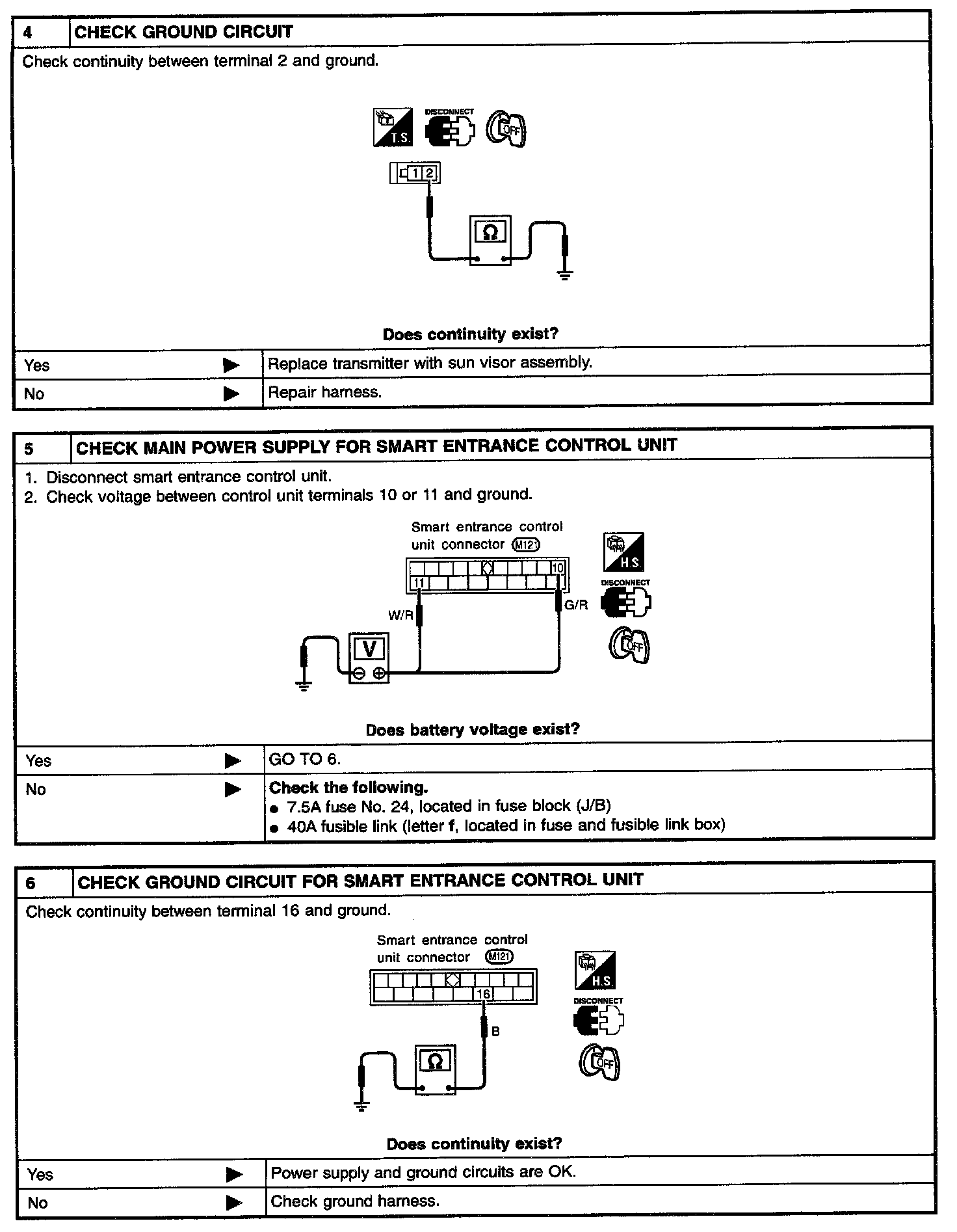

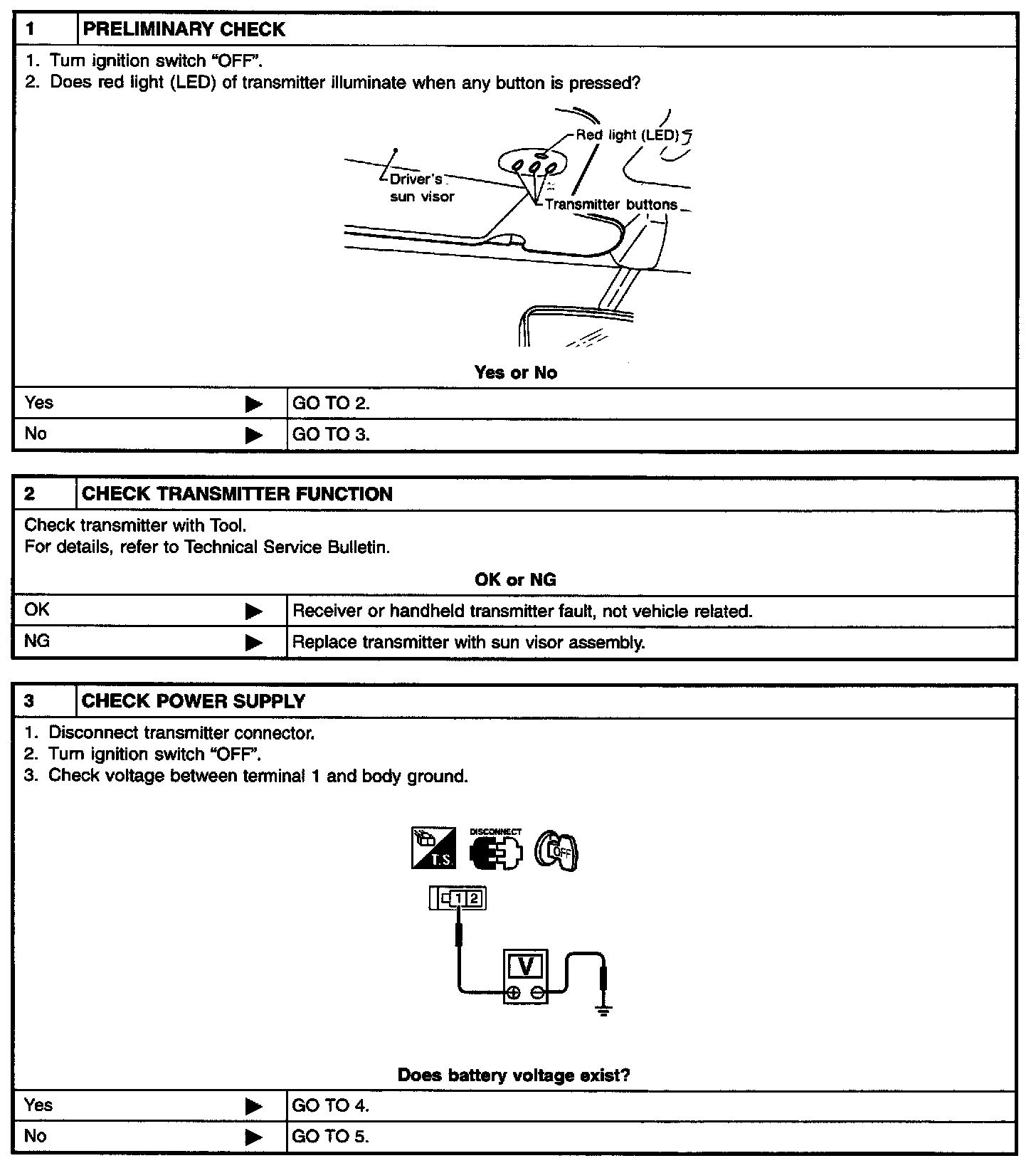

DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.

Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.) operates with original, hand-held transmitter.
If NG, receiver or hand-held transmitter is at fault, not vehicle related.
