Remote Door Lock Function Check

REMOTE DOOR UNLOCK FUNCTION CHECK (CONSULT "FUNCTION CHECK" MODE)

Description

"Remote door unlock function" can be checked using CdNSULT. Driver side door can be unlocked according to the commands to the smart entrance control unit by the IVCS unit.

NOTE: Before performing the function check, confirm that power door lock system operates properly.



How to perform function check.

1. Lock the doors with door lock/unlock switch on driver's door trim.

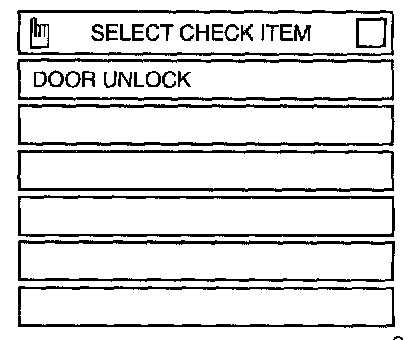

2. Touch "FUNCTION CHECK".



3. Touch "DOOR UNLOCK".

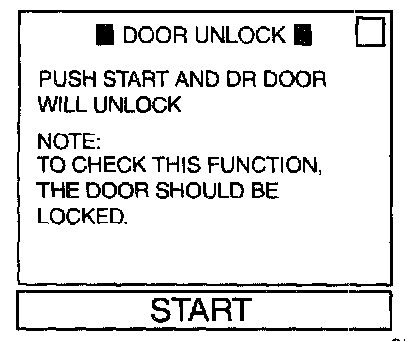

4. Touch "START". Then driver side door will be unlocked. If the door cannot be unlocked using CONSULT, check harness for open or snort between smart entrance control unit terminal 20 and IVCS unit terminal 32.
