System Setting (After IVCS Unit Replacement)

System Setting (When IVCS Unit is Replaced)

DESCRIPTION

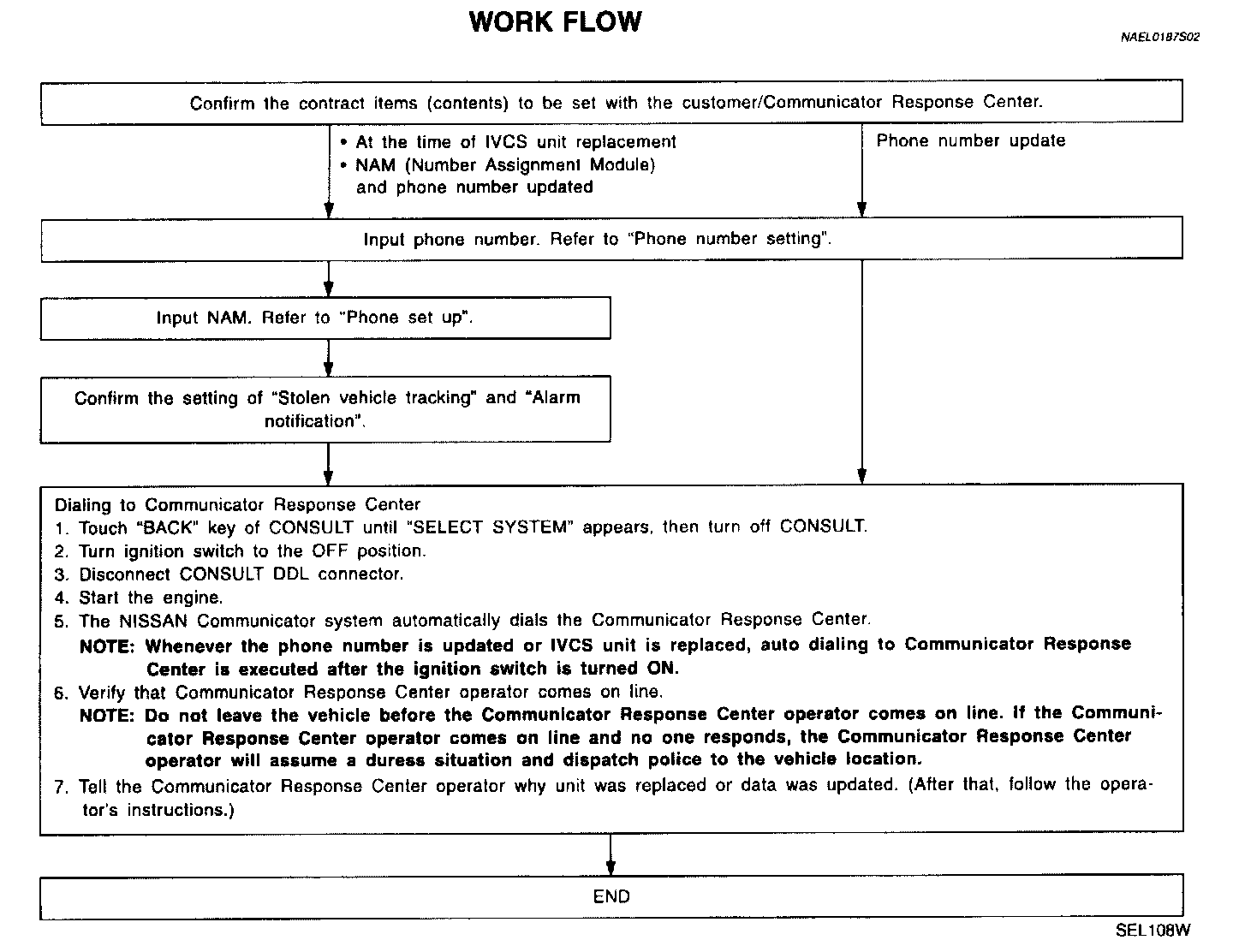

When the IVCS unit is replaced, carry out the following data settings.

- Phone setup - Data setting regarding NAM (Number Assignment Module)
- Phone number - Phone number setting

NOTE: Data must not be updated without prior approval from the customer.
- NAM and phone number can be programed by using handset. For details, refer to the handset operation manual.
- The IVCS unit does not permit updating of NAM more than 15 times.





NOTE: If a Communicator Response Center operator does not come on line even though the system activates, the system may not be properly configured. Call the Communicator Response Center at 1 -888~27481 2 to verify the configuration information.
- Whenever dialing the above number, information about the vehicle is required by the operator.
- Never release the vehicle to the customer unless NISSAN Communicator system operation is verified by a Communicator Response Center operator coming on line.


PHONE NUMBER SETTING

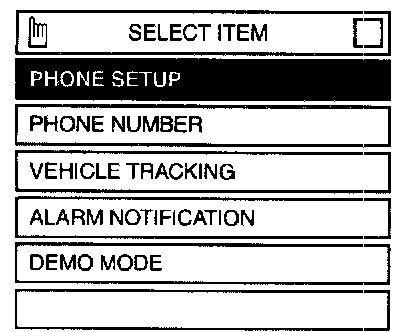

1. Touch "CONFIGURATION".





2. Touch "PHONE NUMBER".






3. Touch "WRITE" or "REWRITE".

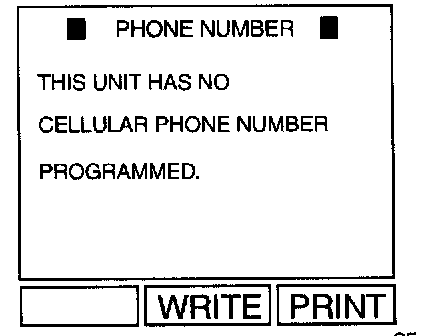

- It no phone number is previously memorized, the display shows "This unit has no cellular phone number programmed".

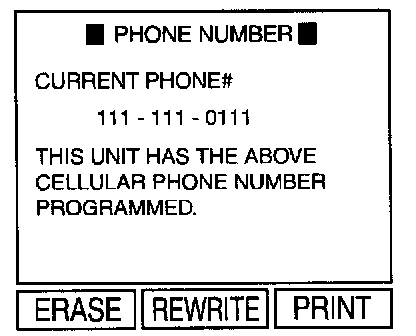

- If the phone number is previously memorized, the display shows the current phone number. To erase the phone number, touch "ERASE".

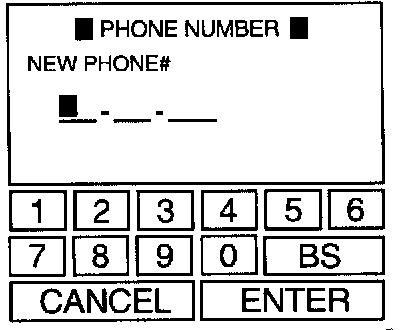

4. Input new phone number.
5. Touch "ENTER".





6. Touch "OK".
7. Carry out the next system setting or contact Communicator Response Center and information them that data has been updated or the IVCS unit has been replaced.

NOTE: Whenever the phone number is updated or the IVCS unit is replaced, the NISSAN Communicator system automatically contacts the Communicator Response Center the first time the vehicle is started.


PHONE SET UP

1. Touch "CONFIGURATION".





2. Touch "PHONE SET UP".





3. Touch "WRITE" or "REWRITE".

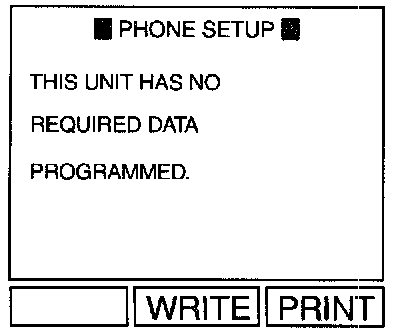

- If no data is previously memorized, the display shows "This unit has no required data programmed".

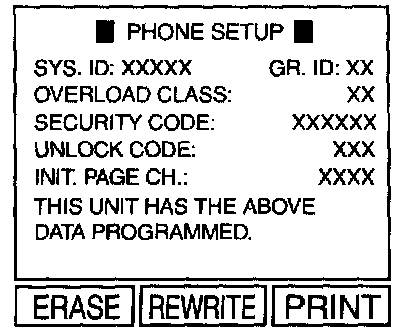

- If NAM (Number Assignment Module) data is previously memorized, the display shows the current NAM data.
- To erase the NAM, touch "ERASE".

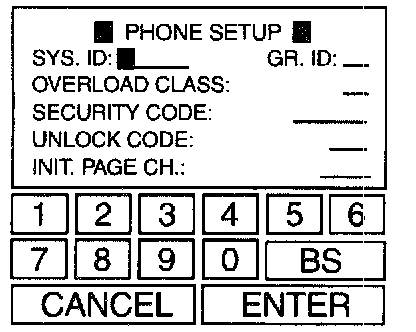

4. Input new NAM data.
- SYS ID (Carrier system ID number) - Available number: 0 to 32765
- GR ID (Group ID mark) -Available number: 0 to 15
- OVERLOAD CLASS (Access overload class) - Available number: 0 to 15
- SECURITY CODE (User security code)
- UNLOCKCODE
- INIT PAGE CH (Initial paging channel)


NOTE: If an unavailable number is input as "SYS ID", "GR ID" or "OVERLOAD CLASS", CONSULT may be locked. In such cases, disconnect the vehicle battery cable once and then setup the system again.

5. Touch "ENTER".
6. Touch "OK".
7. Carry out the next system setting or contact Communicator Response Center and inform them that data has been updated or IVCS unit has been replaced.

NOTE: Whenever the phone number is updated or the IVCS unit is replaced, the NISSAN Communicator system automatically contacts the Communicator Response Center the first time the vehicle is stared.



STOLEN VEHICLE TRACKING/ALARM NOTIFICATION

SETTING CHECK

1. Touch "CONFIGURATION".

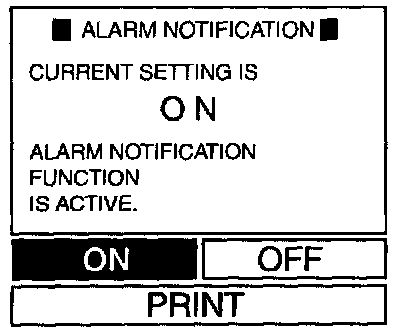

2. Touch "VEHICLE TRACKING" or "ALARM NOTIFICATION".





3. This function should always be "ON" (function activate.)

NOTE: If either setting is "OFF", contact the Communicator Response Center at 1-888-427-4812 to verify the system setting.
Whenever dialing the above number, information about the vehicle is required by the operator.
