Self-Diagnostic Results Item Chart

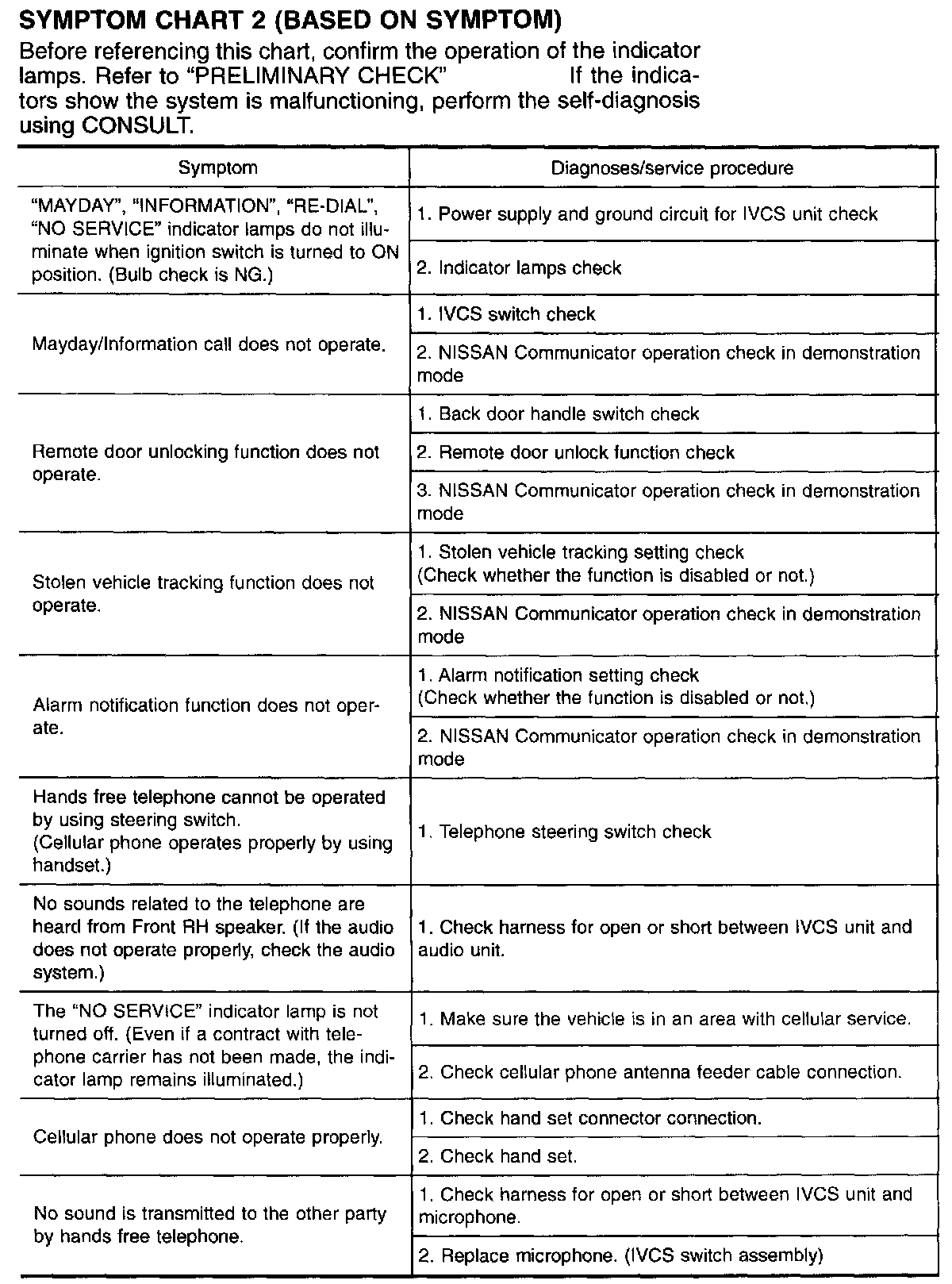

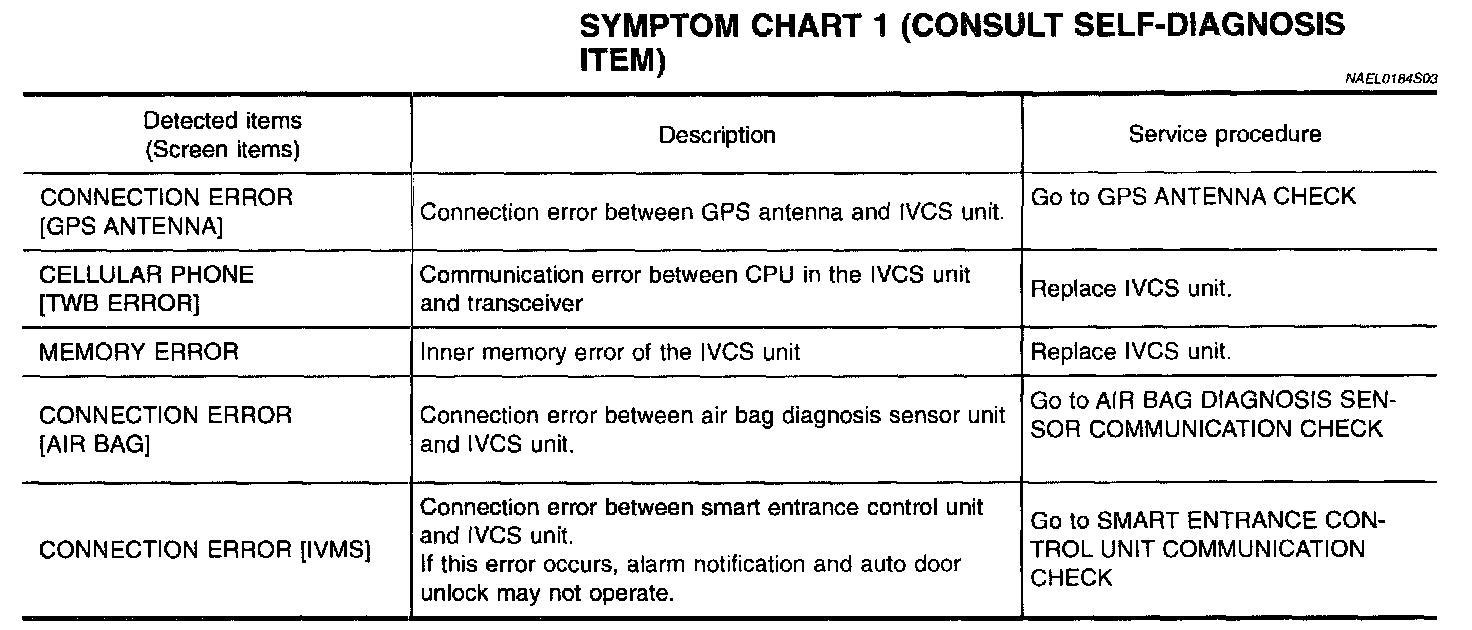

SELF-DIAGNOSTIC RESULTS ITEM CHART

NOTE: After replacing IVCS unit, set up the replaced IVCS unit. Refer to System Setting (When IVCS Unit is Replaced.)
