Preliminary Check

PRELIMINARY CHECK

1. Turn ignition switch ON.

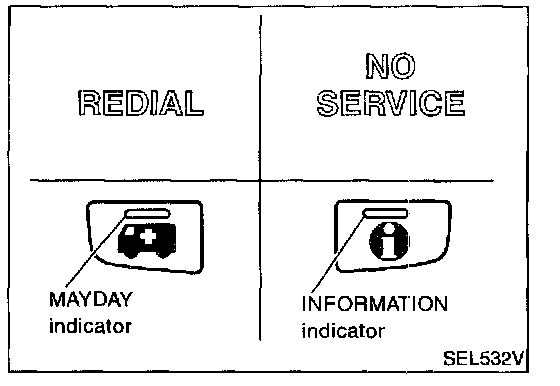

2. Check "MAYDAY", "INFORMATION", "RED IAL" and "NO SERVICE" indicator lamps operation.

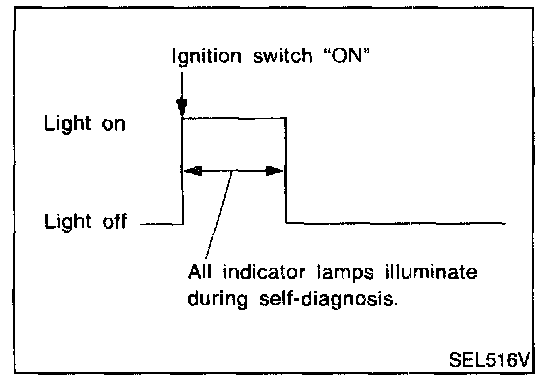

- If no malfunction is detected, indicator lamps will turn oft after the bulb check (self-diagnosis) is terminated for about 30 seconds or more.

NOTE: Bulb check (self-diagnosis) is not performed unless the ignition switch has been turned oft for at least 3 minutes. Bulb check is not performed during contact with Communicator Response Center.

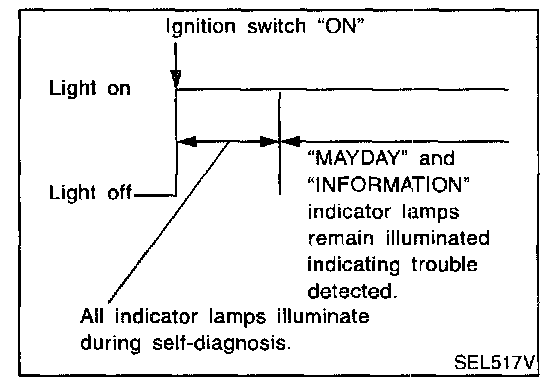

- If the system detects malfunctions, both "MAYDAY" and "INFORMATION" indicator lamps remain illuminated. Perform self-diagnosis using CONSULT and repair or replace the system. Refer to "How to Perform Self-diagnosis".



NOTE: For details of indicator lamps operation, refer to "INDICATOR LAMPS OPERATION".
