Consult Inspection Procedure

CONSULT INSPECTION PROCEDURE





1. Turn ignition switch "OFF".
2. Connect "CONSULT" to the data link connector.




3. Insert UE999 program card in to CONSULT.
4. Turn ignition switch "ON".

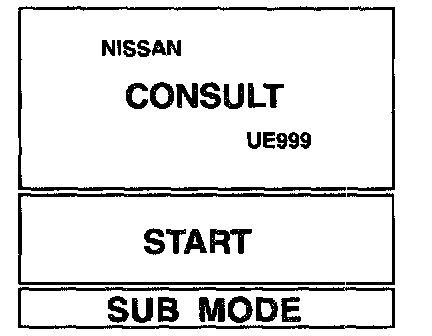

5. Touch "START".

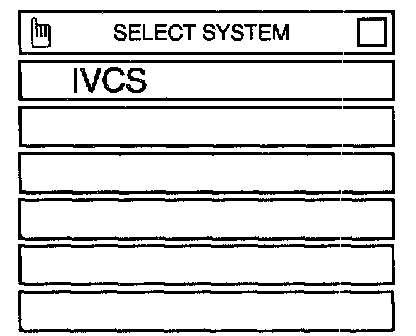

6. Touch "IVCS".









NOTE: Data must not be rewritten without prior approval of the customer.

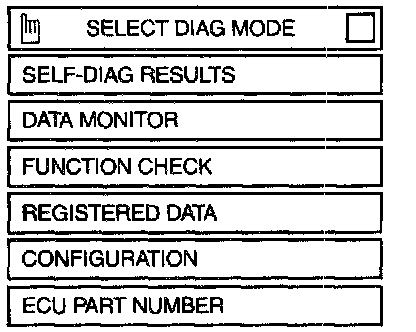

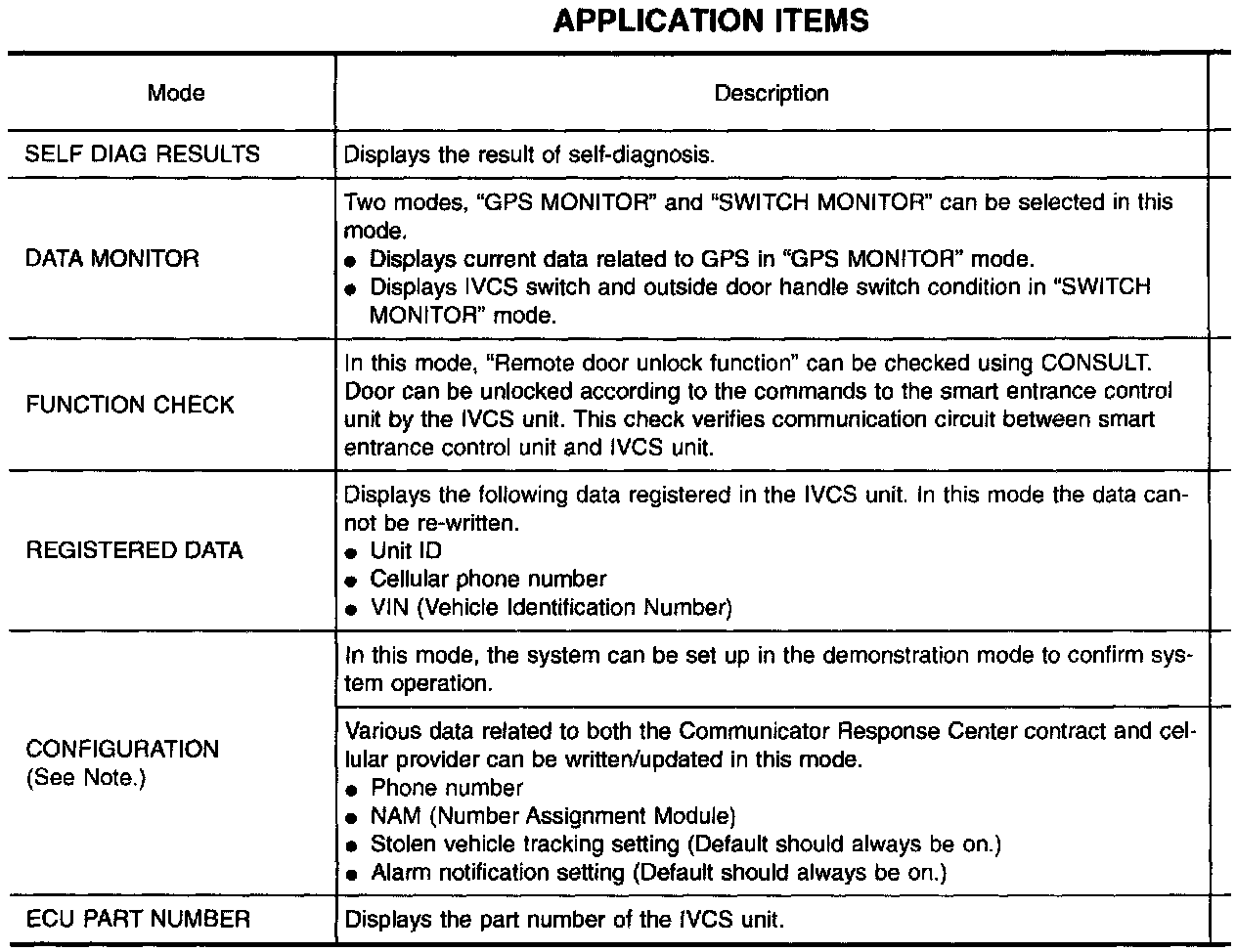

7. Perform each diagnostic item according to the item application chart.
8. When CONSULT inspection is terminated, follow the procedure shown below.

- a. Touch "BACK" key of CONSULT until "SELECT SYSTEM" appears, then turn off CONSULT.
- b. Turn ignition switch to OFF position.
- c. Disconnect CONSULT DDL connector.

NOTE: If the DDL connector is disconnected before turning ignition switch to "OFF" position, NISSAN communicator may not operate properly.
