Diagnosis By Symptom

TROUBLE DIAGNOSES OF MULTI-REMOTE CONTROL SYSTEM

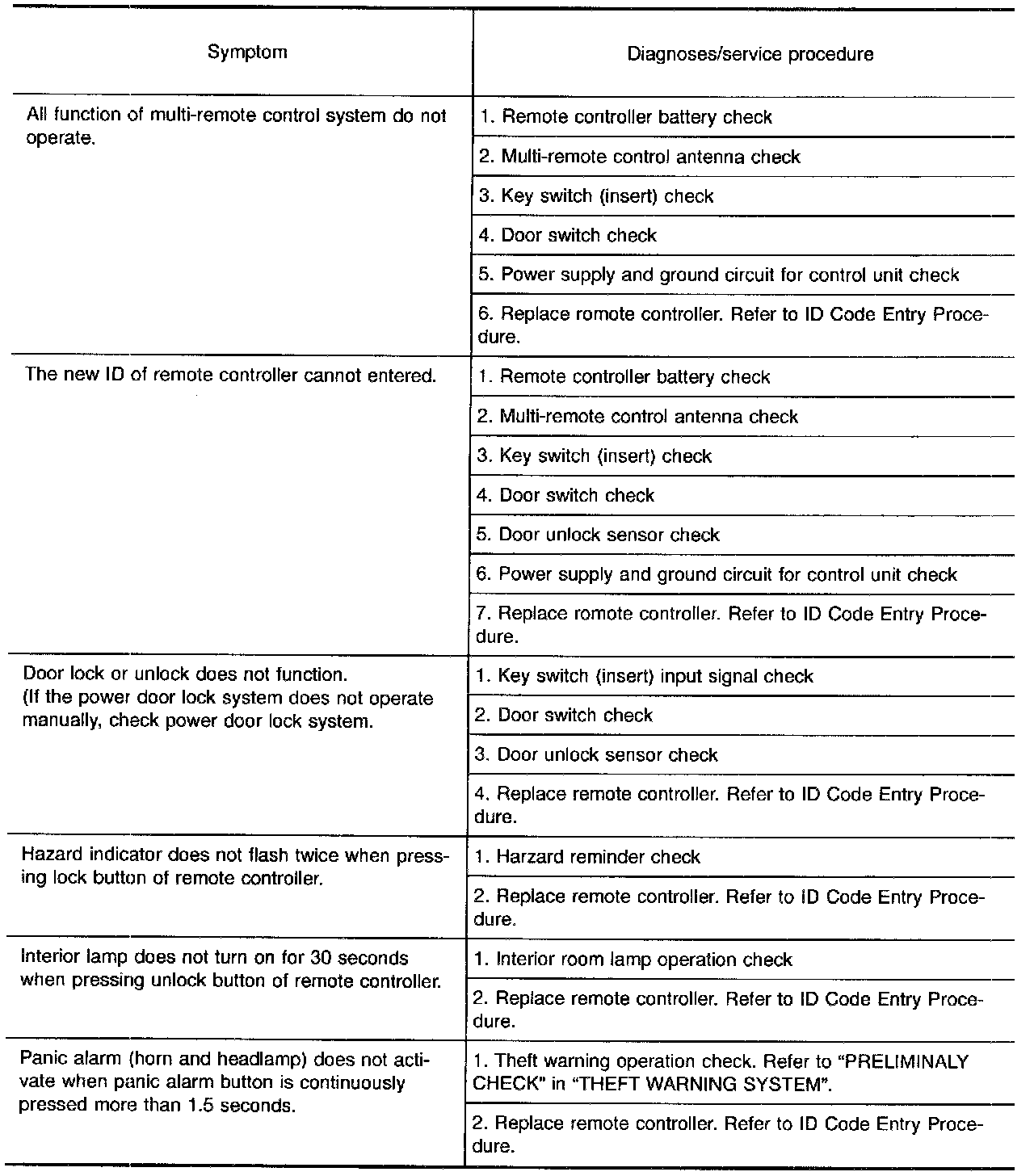

Symptom Chart

NOTE:
- The unlock and panic alarm operation of multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder
- The lock operation of multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.
