DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT

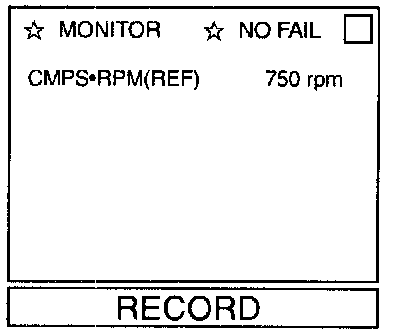

(1) Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT
(2) Start engine and run it for at least 2 minutes at idle speed.

With GST
(1) Start engine and run it for at least 2 minutes at idle speed.
(2) Select "MODE 7" with GST

No Tools
(1) Start engine and run it for at least 2 minutes at idle speed.
(2) Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
(3) Perform "Diagnostic Test Mode II" (Self-diagnostic results) with ECM.
