Diagnostic Procedure


Diagnostic Procedure

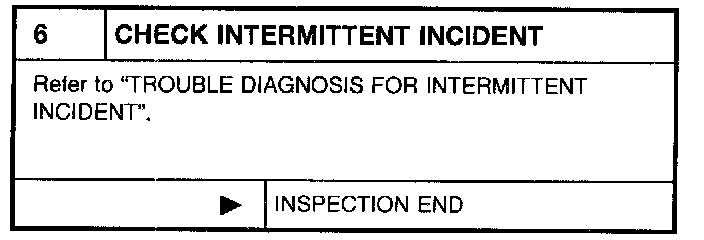

If the trouble is duplicated after "PROCEDURE FOR MALFUNCTION A", perform "PROCEDURE A" below. If the trouble is duplicated after "PROCEDURE FOR MALFUNCTION B", perform "PROCEDURE B".

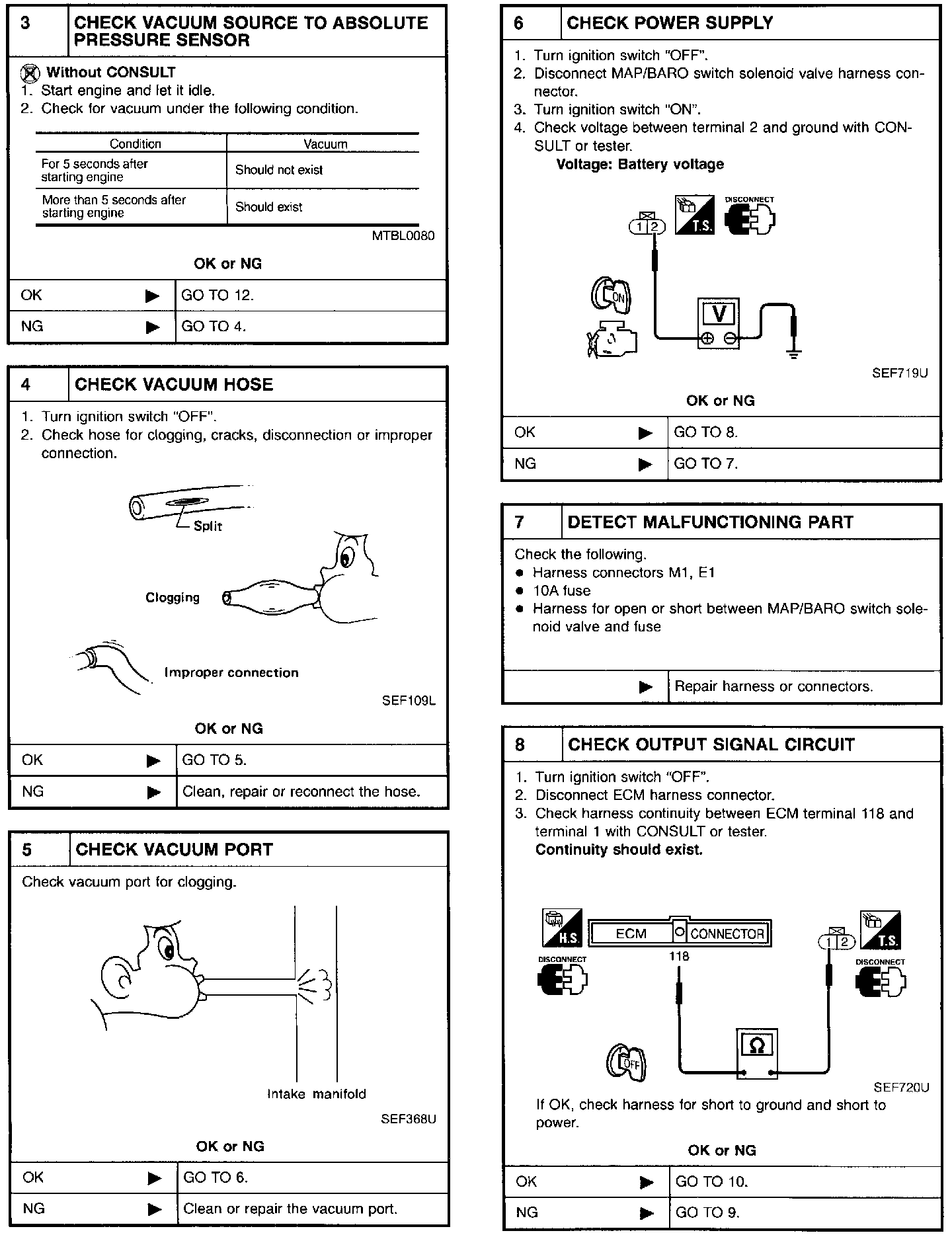

PROCEDURE A











PROCEDURE B
